Knipex Automatic Insulation Wire Stripper 180mm Self Adjusting 12 62 180

KNIPEX Automatic Insulation Wire Stripper 180mm Self Adjusting 12 62 180

12 62 180 Automatic Insulation Stripper

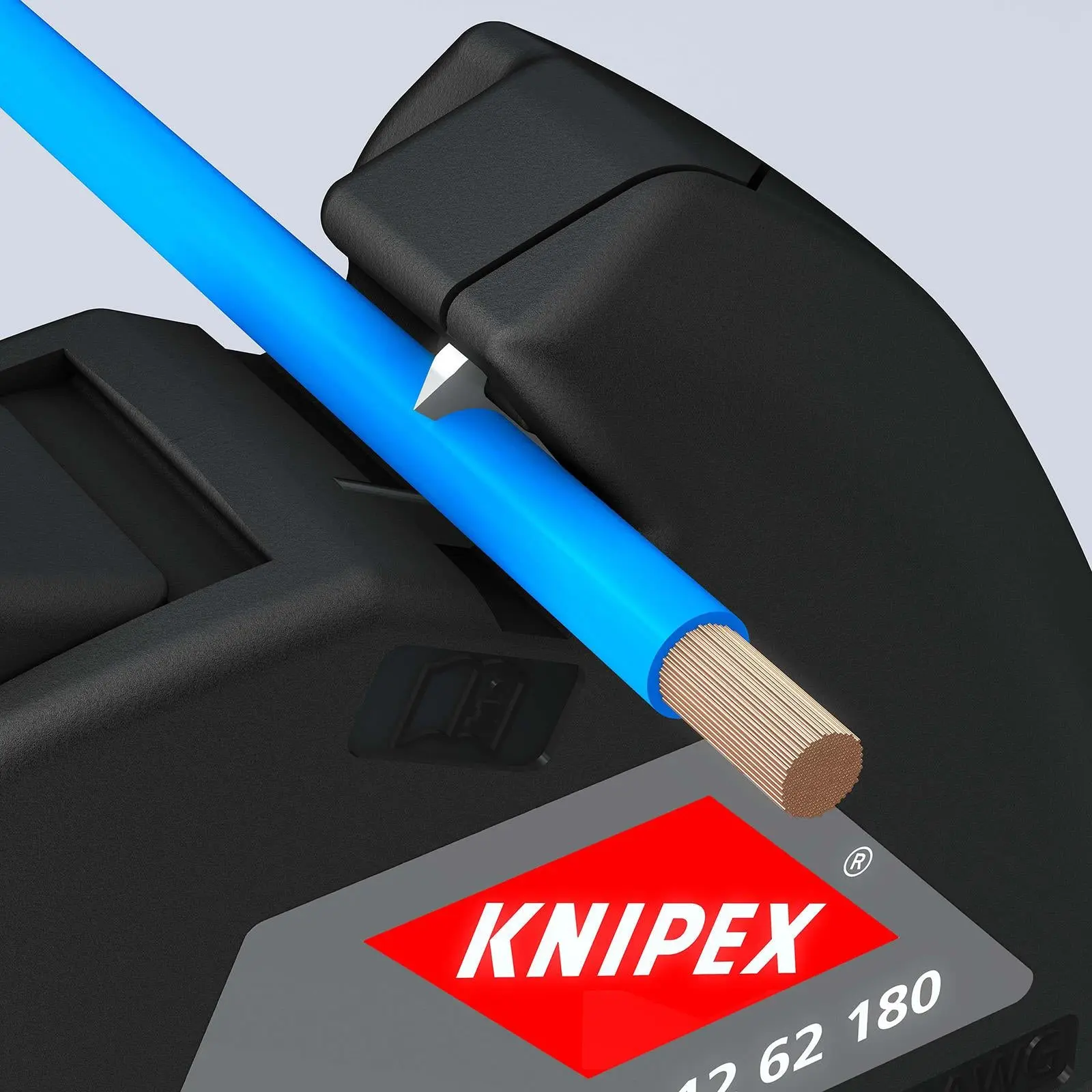

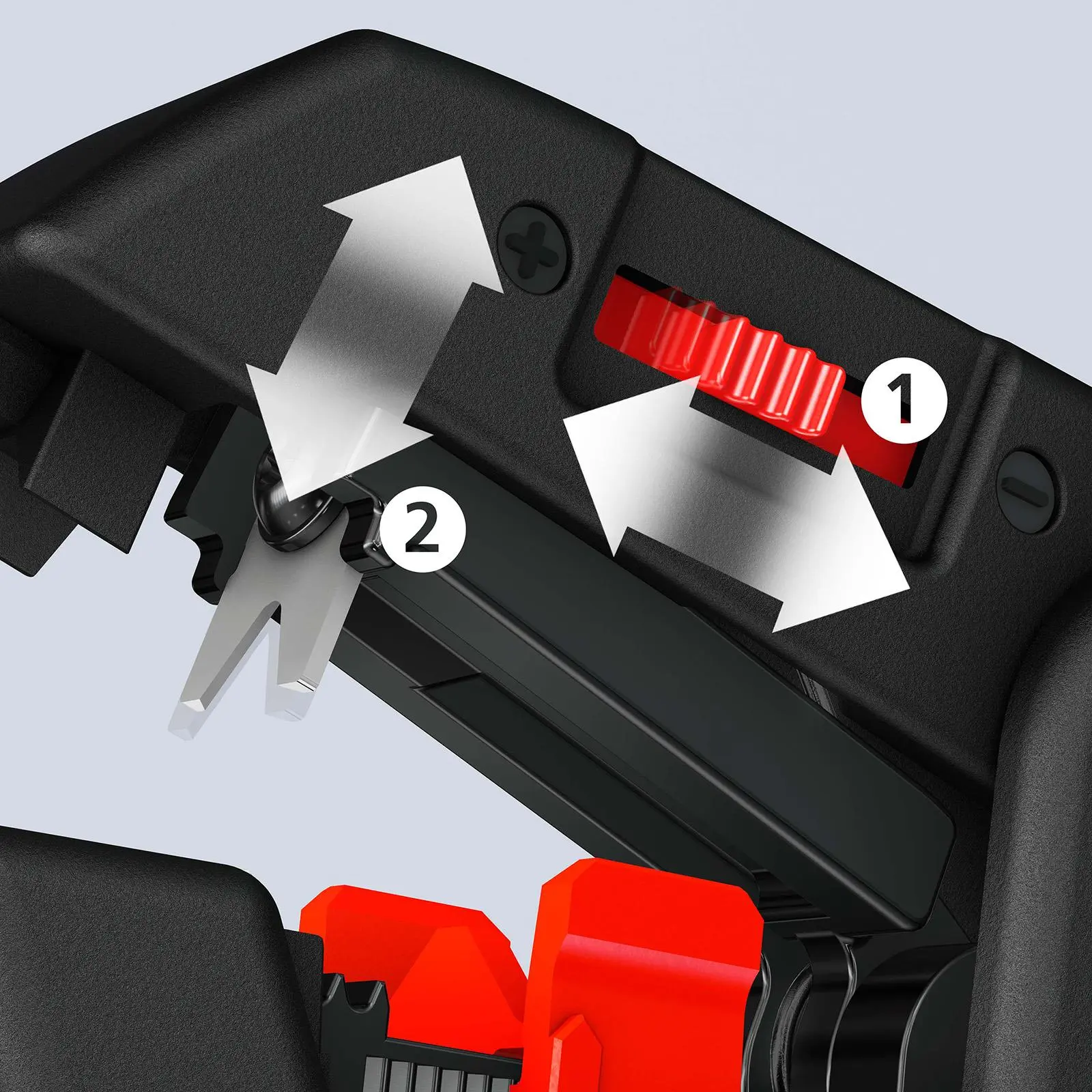

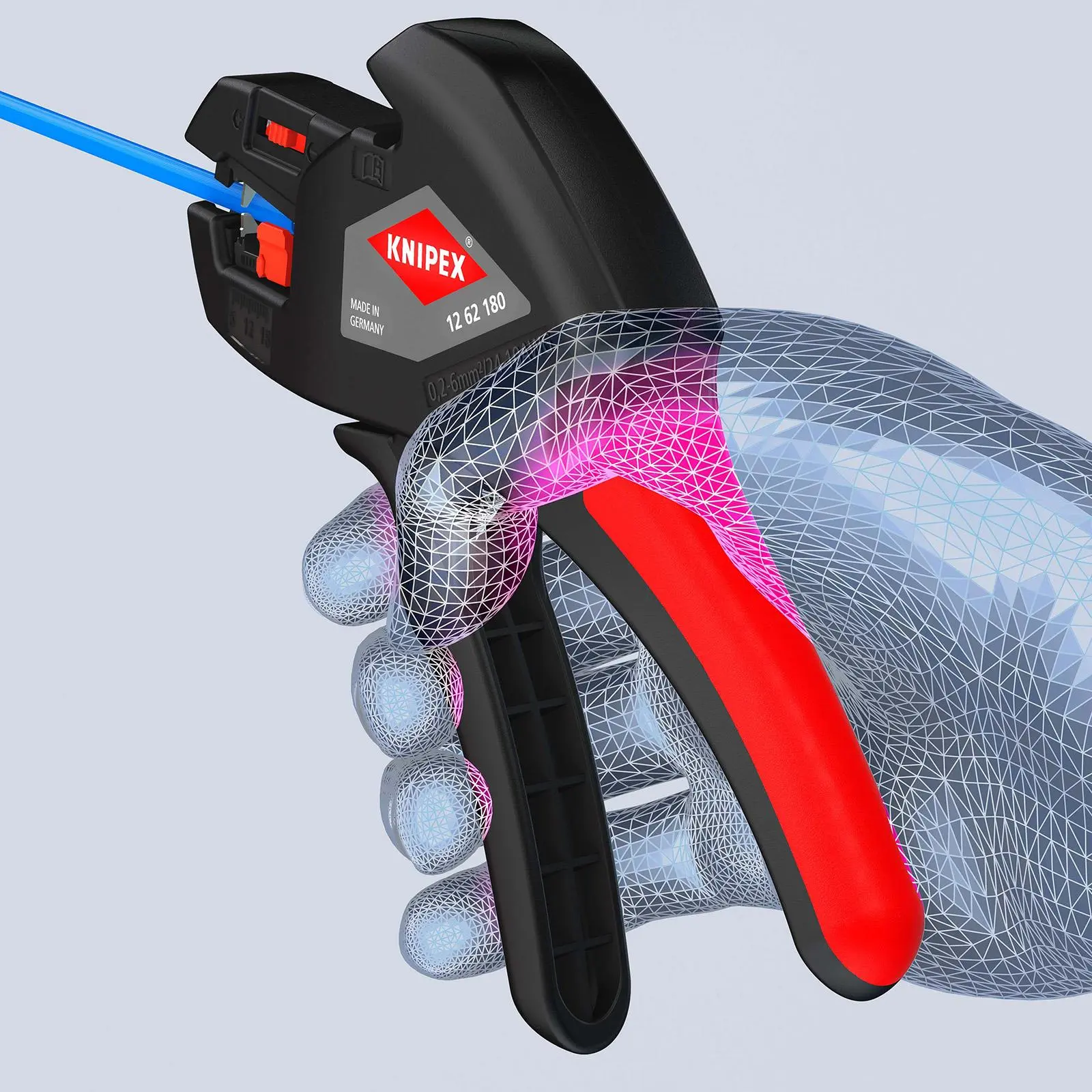

Strips cables with standard materials without any need for manual adjustment. Fine adjustable zero correction of the blade setting to special material requirements, e.g. due to large temperature differences. Compact, handy and lightweight tool for common cable cross-sections and insulating materials. For single, multiple and fine stranded cables of 0.2 up to 6 mm² with standard insulation. Narrow head style for use in confined areas. With wire cutter for copper and aluminium wires up to 2.5 mm². With adjustable length stop from 6.0 - 18.0 mm for constant stripping lengths.

Stripping capacities in square millimetres: 0.2 — 6.0 mm²

AWG: 24 — 10

Technical Information:

• For single, multiple and fine stranded cables of 0.2 up to 6 mm² with standard insulation
• Narrow head style for use in confined areas

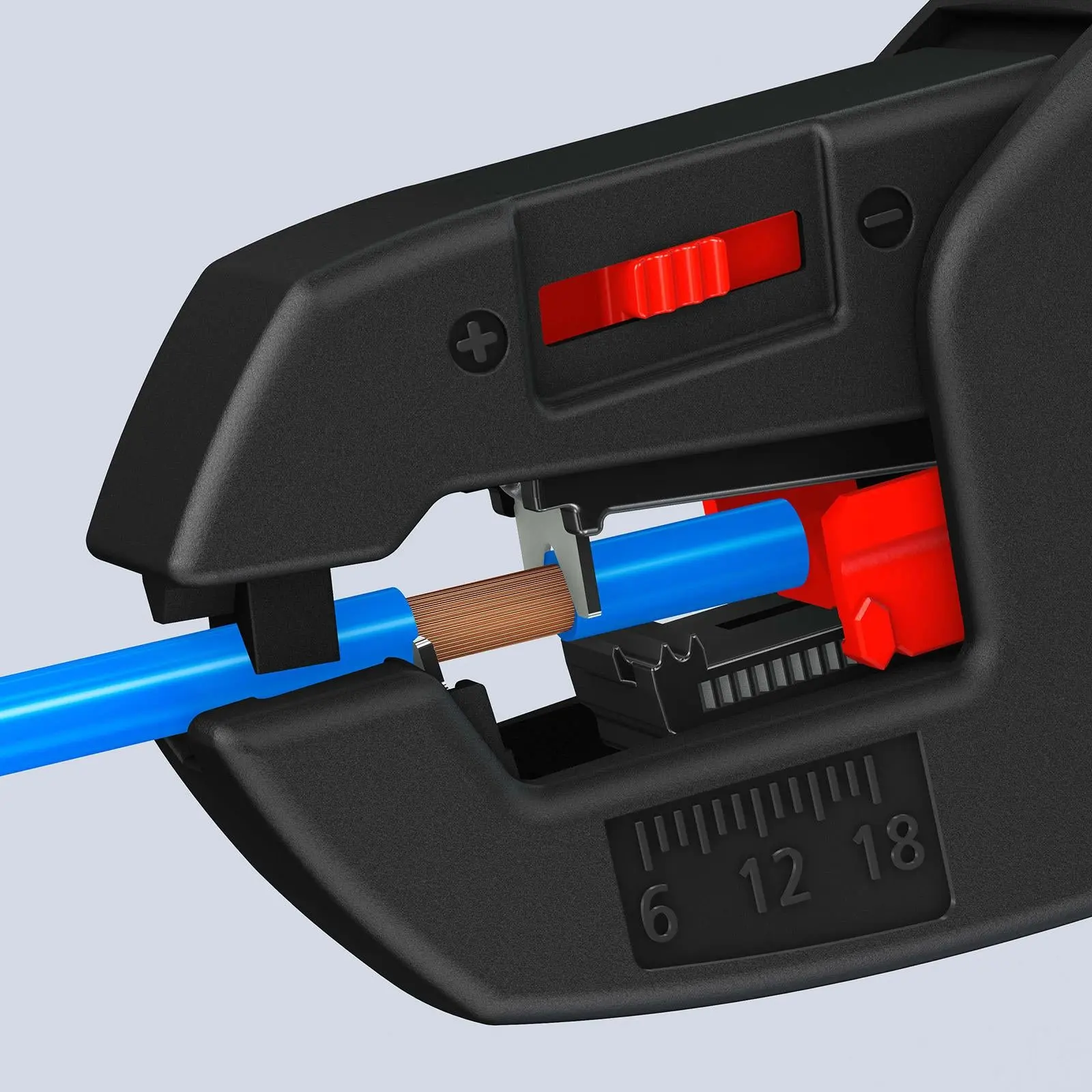

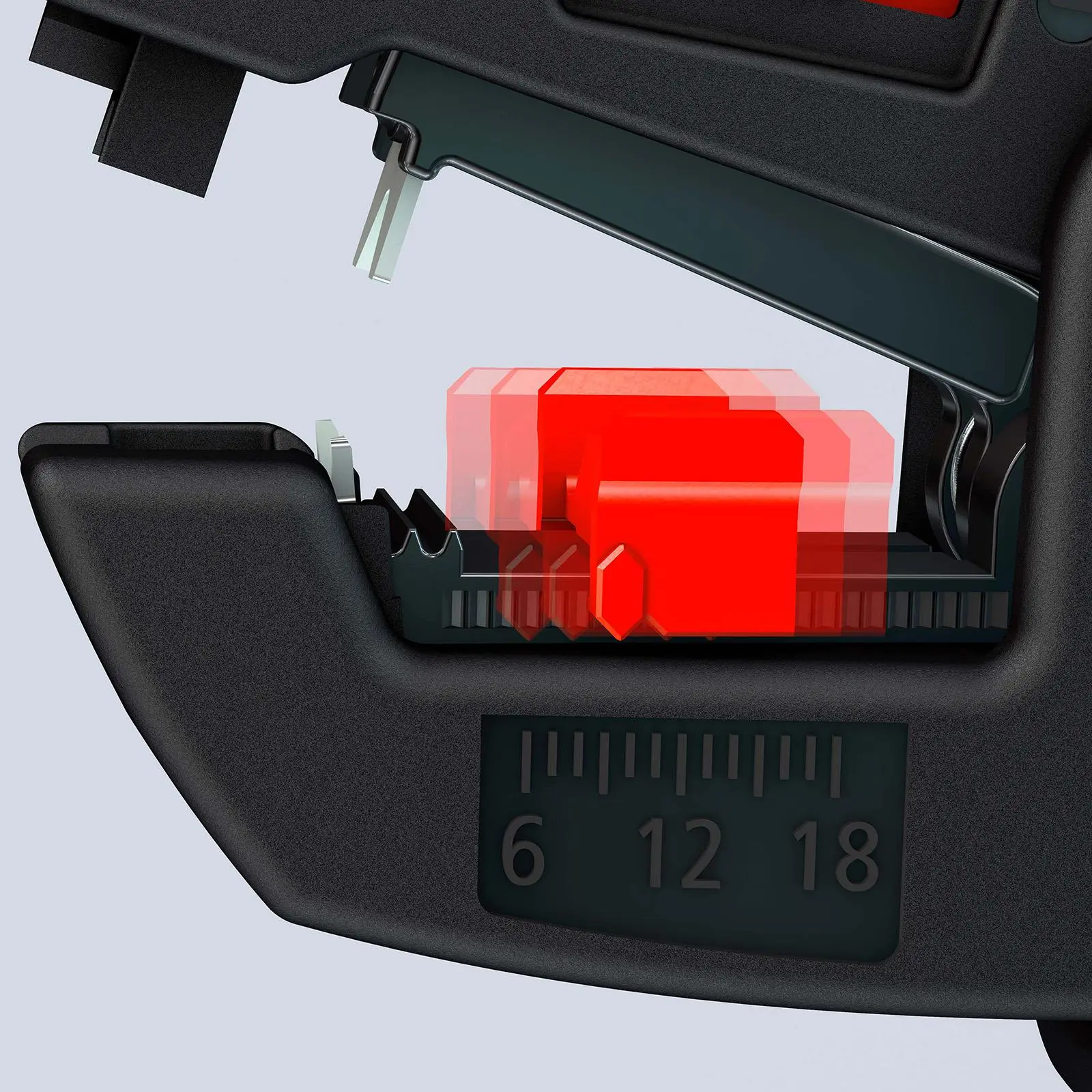

• with adjustable length stop from 6.0 - 18.0 mm for constant stripping lengths
• with wire cutter for copper and aluminium wires up to 2.5 mm²

Downloadable Files:

• Data Sheet: View Here
