Knipex Bolt Cutter 760mm Multi Component Grips 71 72 760

KNIPEX Bolt Cutter 760mm Multi Component Grips 71 72 760

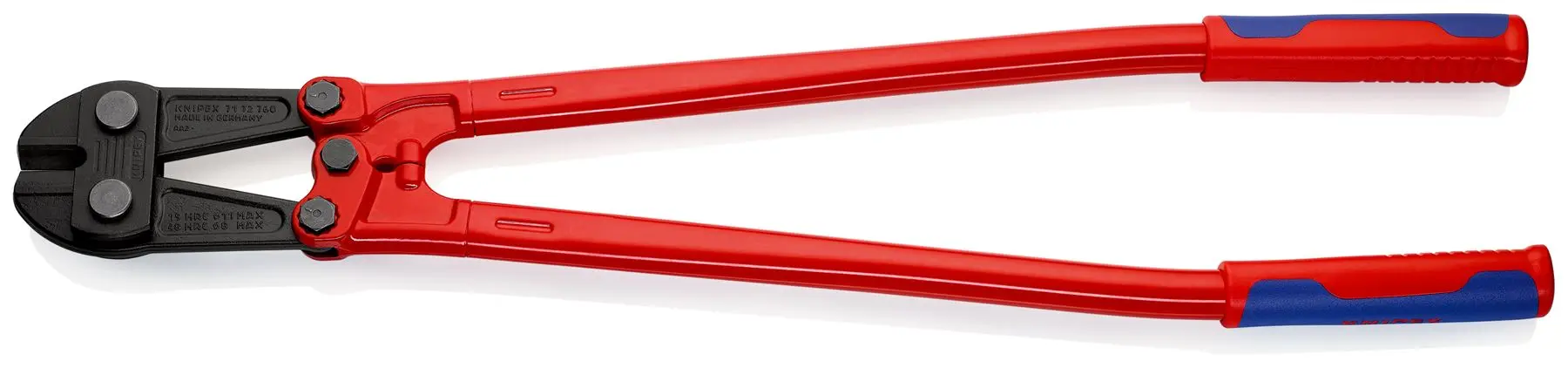

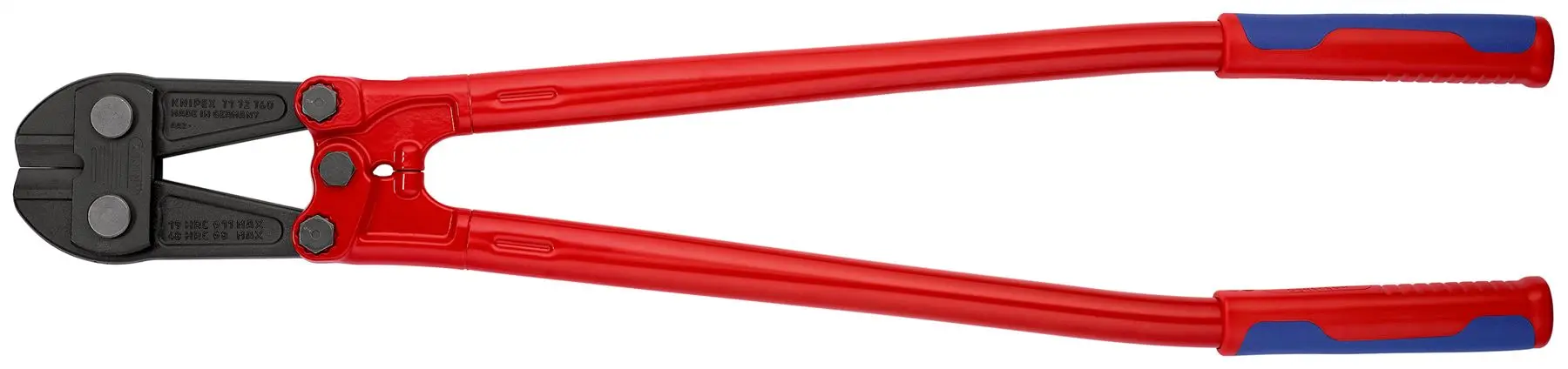

71 72 760 Bolt Cutter

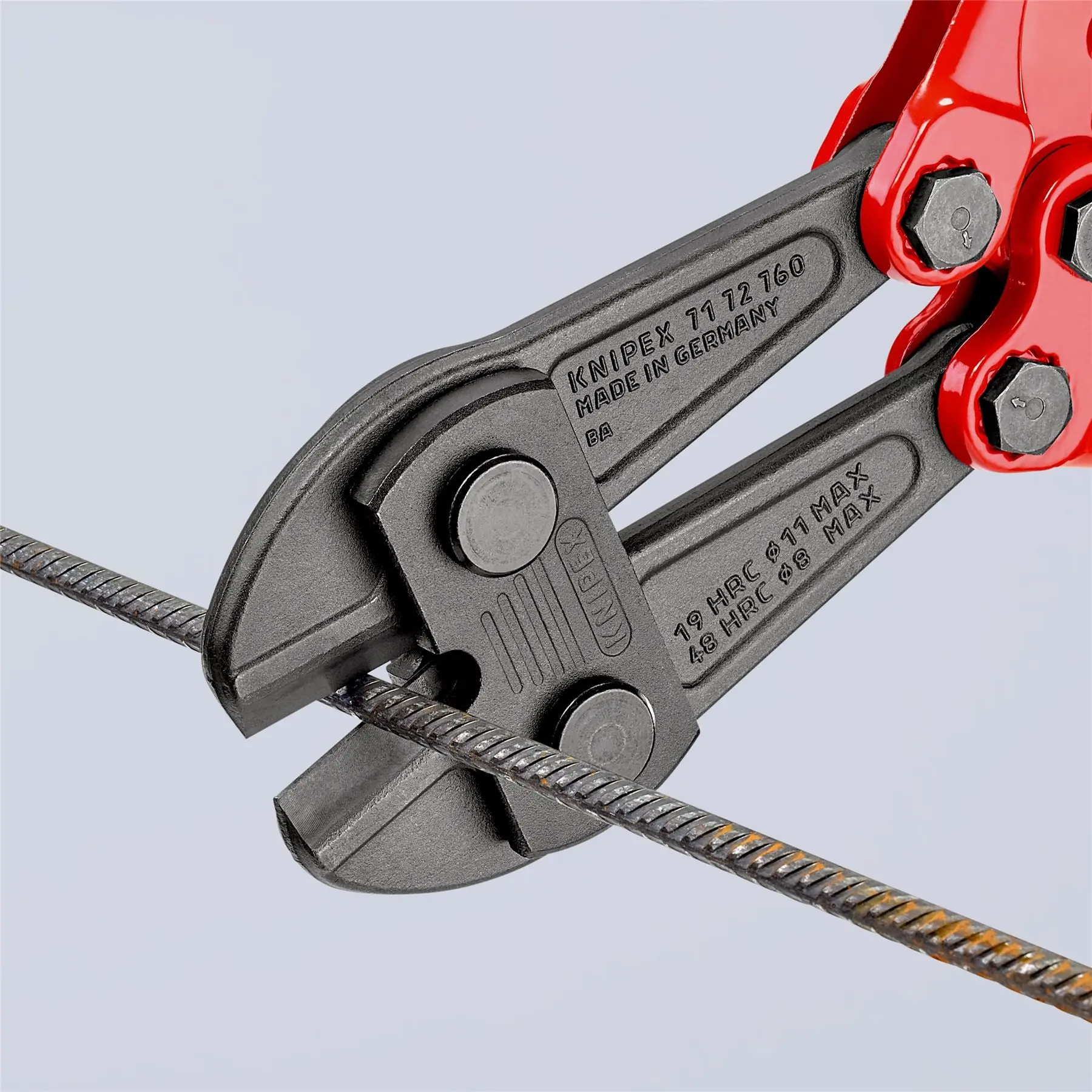

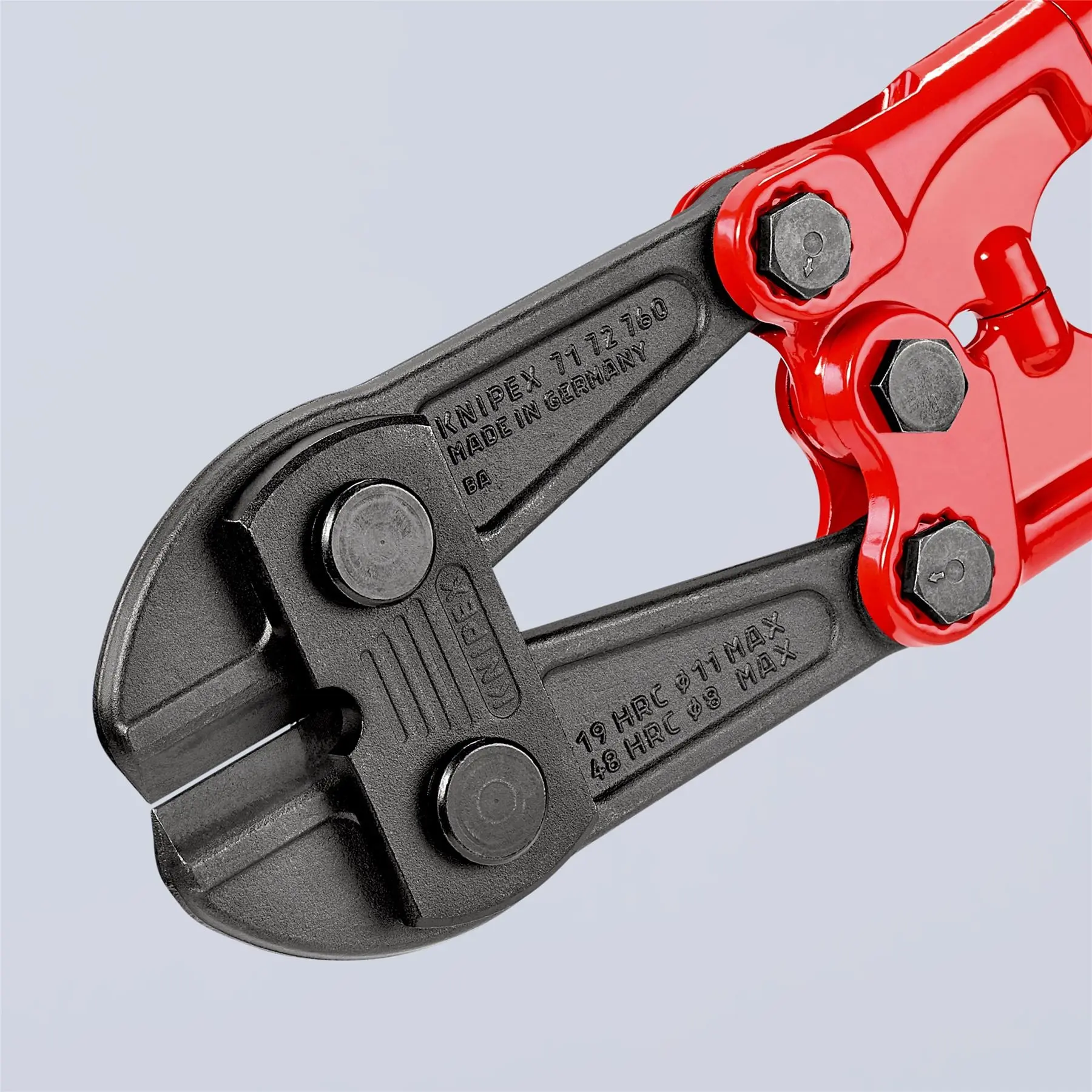

Cutting capacity up to 48 HRC hardness. Robust cutting edges are additionally induction-hardened, cutting edge hardness approx. 62 HRC. Forged-in stopper with comfortable shock- absorber. Good access due to very flat construction of head and joint area. Ergonomically angled handles to minimise effort. Sturdy non-slip two-colour multi-component handle sleeves. Precise adjustment (12 positions) by eccentric bolt. High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio. Bolted cutter head, replaceable.

HRC 19: Ø 11 mm

HRC 40: Ø 9 mm

HRC 48: Ø 8 mm

Cutting edge length mm: 36.5 mm

Head thickness: 42 mm

Technical Information:

• bolted cutter head, replaceable
• cutting capacity up to 48 HRC hardness
• ergonomically angled handles to minimise effort
• forged-in stopper with comfortable shock- absorber
• good access due to very flat construction of head and joint area
• high cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
• Precise adjustment (12 positions) by eccentric bolt
• robust cutting edges are additionally induction-hardened, cutting edge hardness approx. 62 HRC
• sturdy non-slip two-colour multi-component handle sleeves

Downloadable Files:

• Data Sheet: View Here
