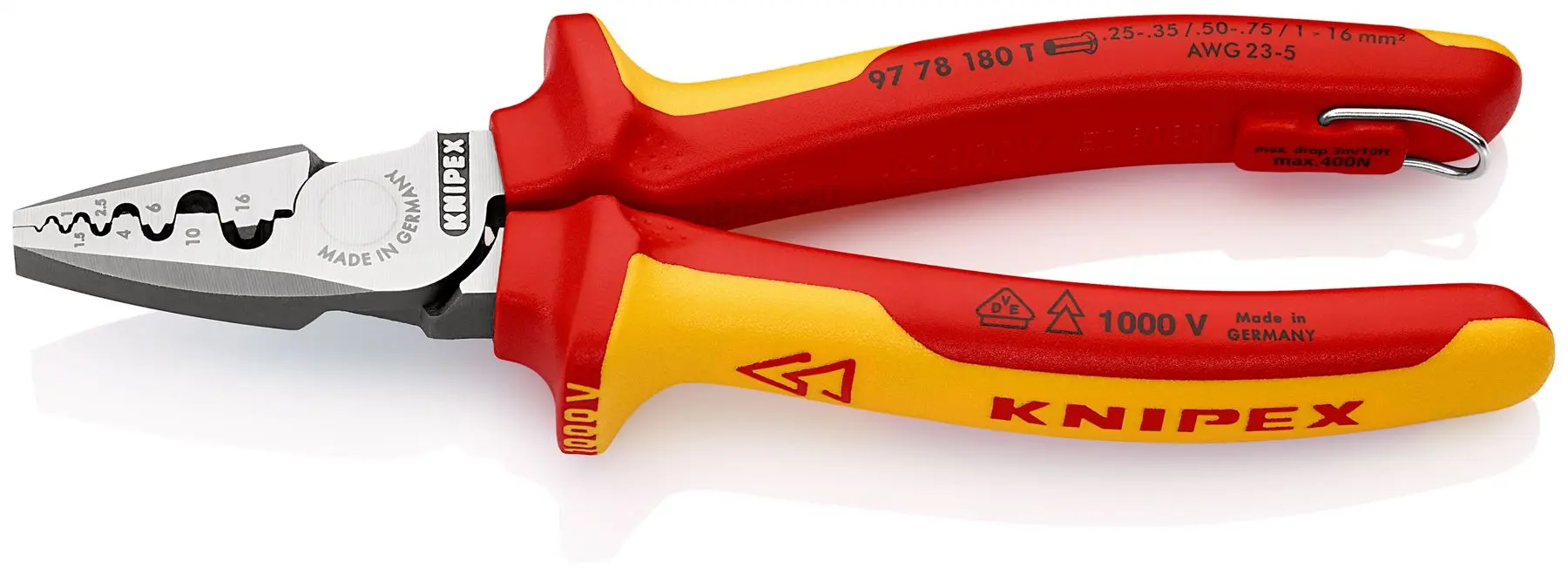

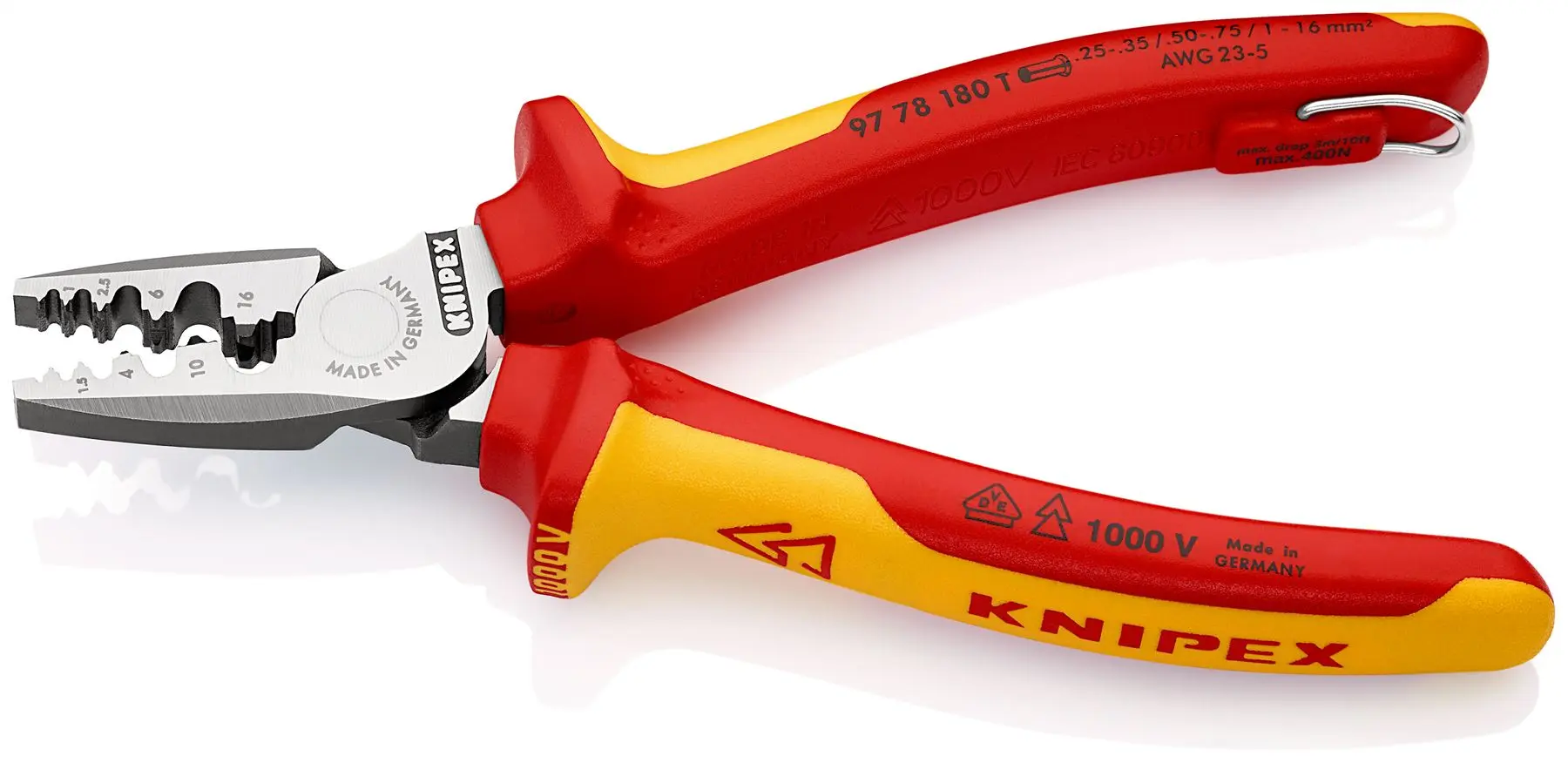

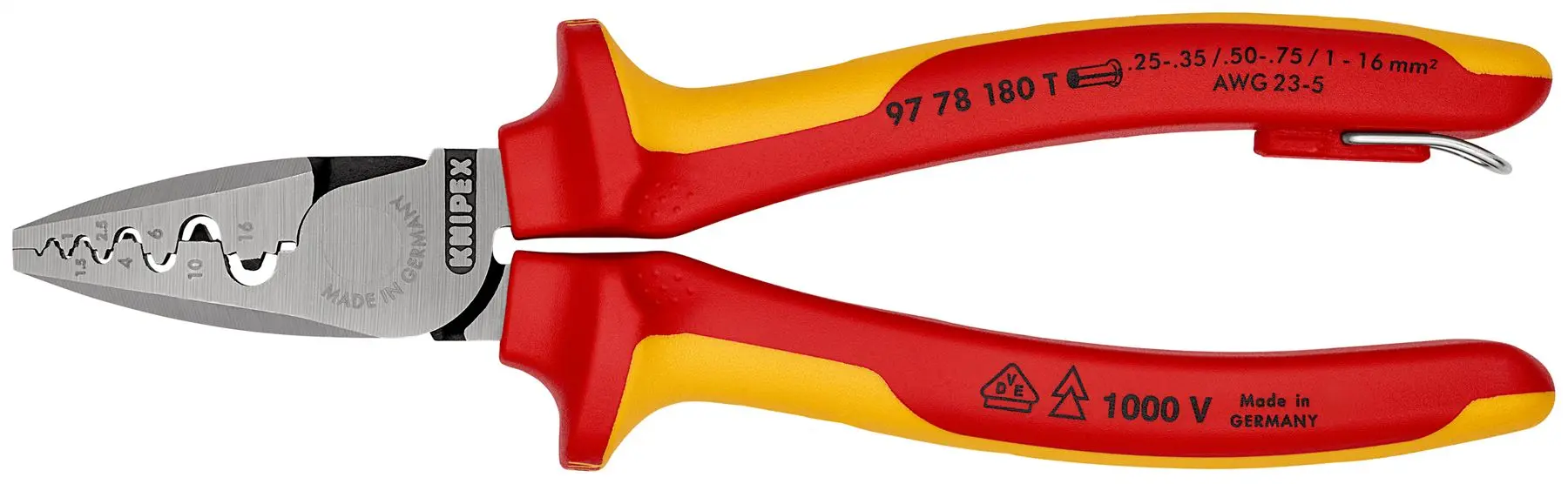

Knipex Crimping Pliers for Wire Ferrules 180mm VDE Insulated 1000V with Tether Point 97 78 180 T

KNIPEX Crimping Pliers for Wire Ferrules 180mm VDE Insulated 1000V with Tether Point 97 78 180 T

97 78 180 T Crimping Pliers for wire ferrules
light and slim design. also as VDE version. easy crimping due to optimised transmission ratio. For crimping wire ferrules according to DIN 46228 parts 1 + 4 from 0.25 to 16 mm². Crimping in marked half-round dies for reliable connections between the sleeve and the conductor. 9 particularly deep dies with conical side faces. Pliers with integrated, insulated tether attachment point for a tool tether.

Application: Wire ferrules

Capacity in square millimetres: 0.25 — 16.0 mm²

Number of crimping positions: 9

AWG: 24 — 6

Technical Information:

• 9 particularly deep dies with conical side faces
• Crimping in marked half-round dies for reliable connections between the sleeve and the conductor
• for crimping wire ferrules according to DIN 46228 parts 1 + 4 from 0.25 to 16 mm²
• Pliers with integrated, insulated tether attachment point for a tool tether

Downloadable Files:

• Data Sheet: View Here
