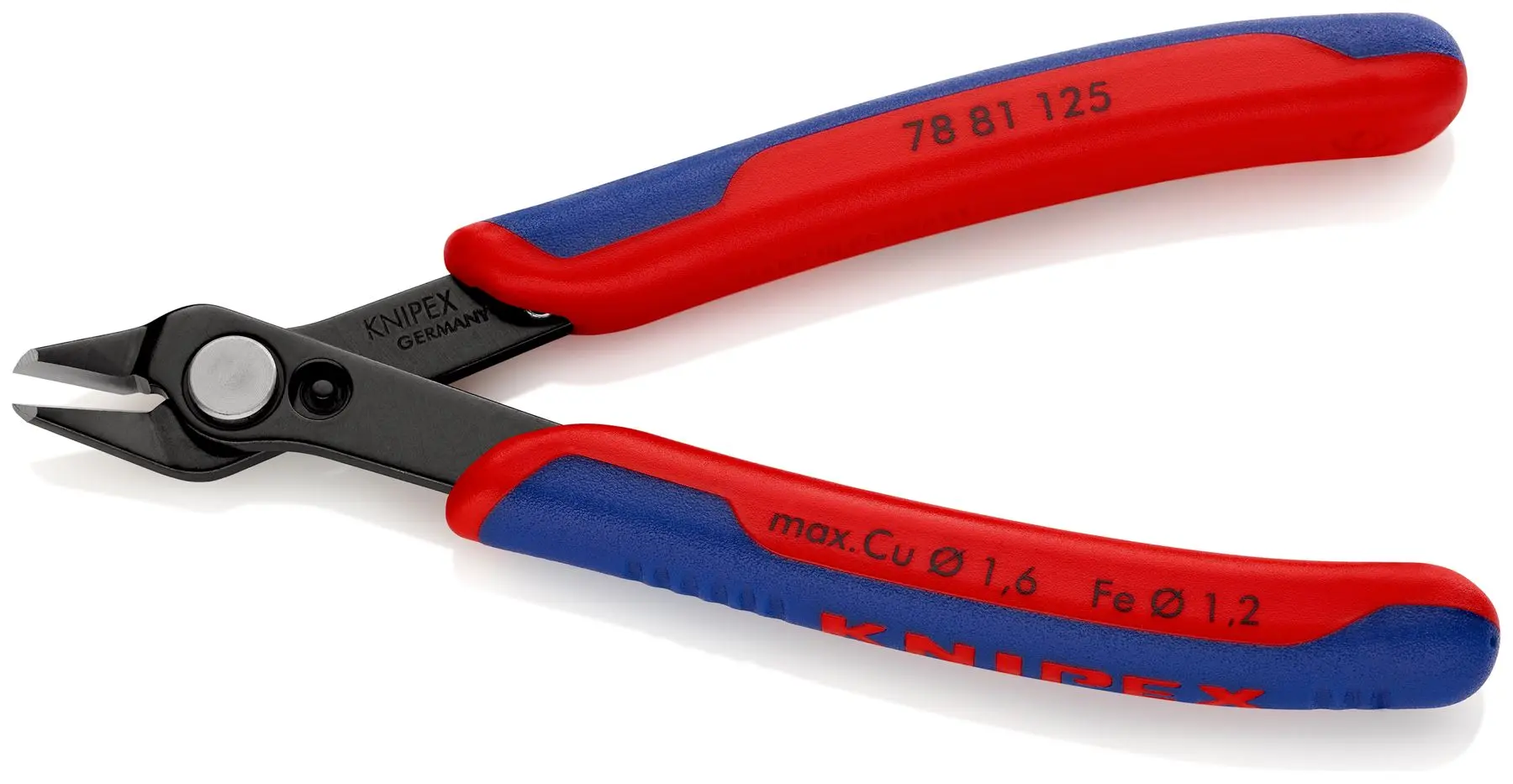

78 81 125 Electronic Super Knips®
Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Ground, very sharp cutting edges without bevel. Precisely shaped tips cut wires close to a surface from Ø 0.2 mm. Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life. Joint with stainless steel rivet. Extremely smooth movement for minimum operator fatigue. With opening spring and opening limiter. precision-ground cutting edges with very small bevel suitable also for hard wire. cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC. special tool steel, burnished.

Cutting capacities medium hard wire (diameter): Ø 1.2 mm

Schneidwerte harter Draht (Durchmesser): Ø 0.6 mm

Cutting capacities soft wire (diameter): Ø 0.2 – 1.6 mm

Jaw length (B): 9 mm

Jaw thickness (joint) (D): 7.5 mm

Head width (A): 13.5 mm

Technical Information:

• cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC
• extremely smooth movement for minimum operator fatigue
• ground, very sharp cutting edges without bevel
• joint with stainless steel rivet
• Precisely shaped tips cut wires close to a surface from Ø 0.2 mm
• precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• precision-ground cutting edges with very small bevel suitable also for hard wire
• Shear cut with controlled micro cutting edge misalignment for the most precise cutting of even the thinnest of wires and for a long service life
• special tool steel, burnished
• with opening spring and opening limiter

Downloadable Files:

• Data Sheet: View Here
