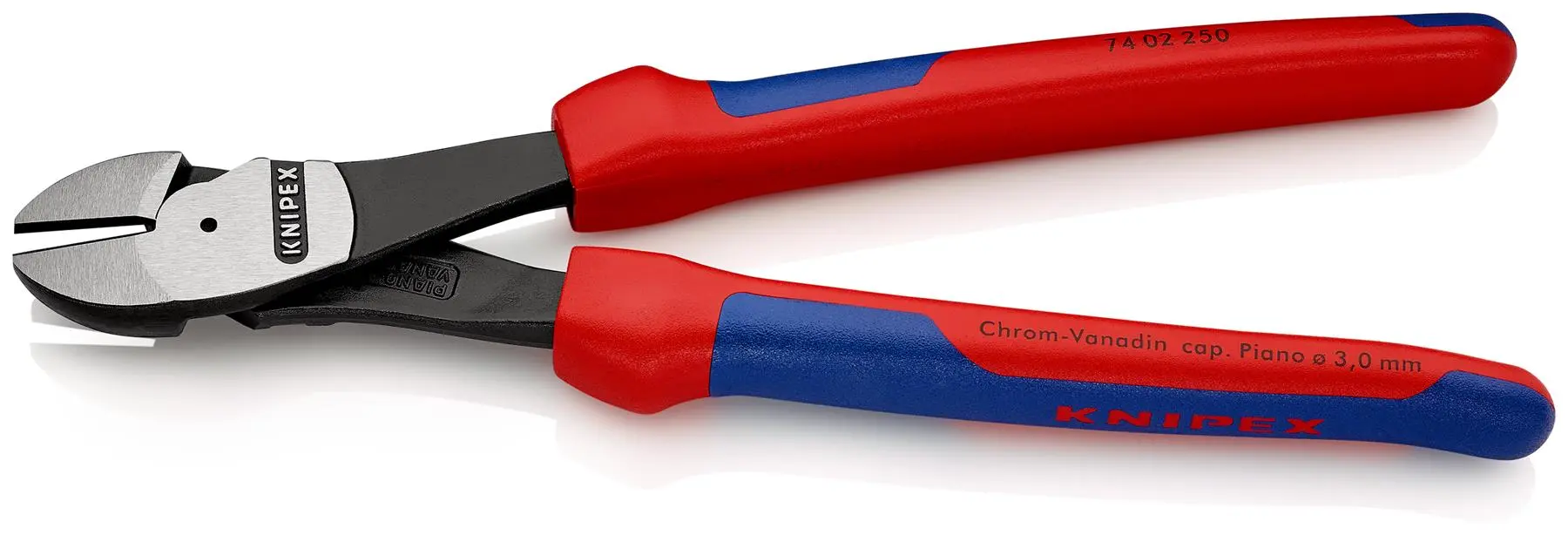

KNIPEX High Leverage Diagonal Side Cutting Pliers 250mm Multi Component Grips 74 02 250

KNIPEX High Leverage Diagonal Side Cutting Pliers 250mm Multi Component Grips 74 02 250

74 02 250 High Leverage Diagonal Cutter
For very tough, continuous use. High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio. Precision cutting edges additionally induction-hardened (cutting edge hardness approx. 64 HRC), for all sorts of wire including piano wire. the 250-mm-long diagonal cutter is suitable for copper conductors up to 16 mm² and aluminium conductors up to 35 mm².

Cutting capacities medium hard wire (diameter): Ø 4.6 mm

Cutting capacities of hard wire (diameter): Ø 3.5 mm

Cutting capacities piano wire (diameter): Ø 3.0 mm

Technical Information:

• for very tough, continuous use
• high cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
• precision cutting edges additionally induction-hardened (cutting edge hardness approx. 64 HRC), for all sorts of wire including piano wire

Downloadable Files:

• Data Sheet: View Here
