KNIPEX Precision Electronics End Cutting Nipper Pliers 115mm Multi Component Grips 64 22 115

KNIPEX Precision Electronics End Cutting Nipper Pliers 115mm Multi Component Grips 64 22 115

64 22 115 Electronics End Cutting Nipper

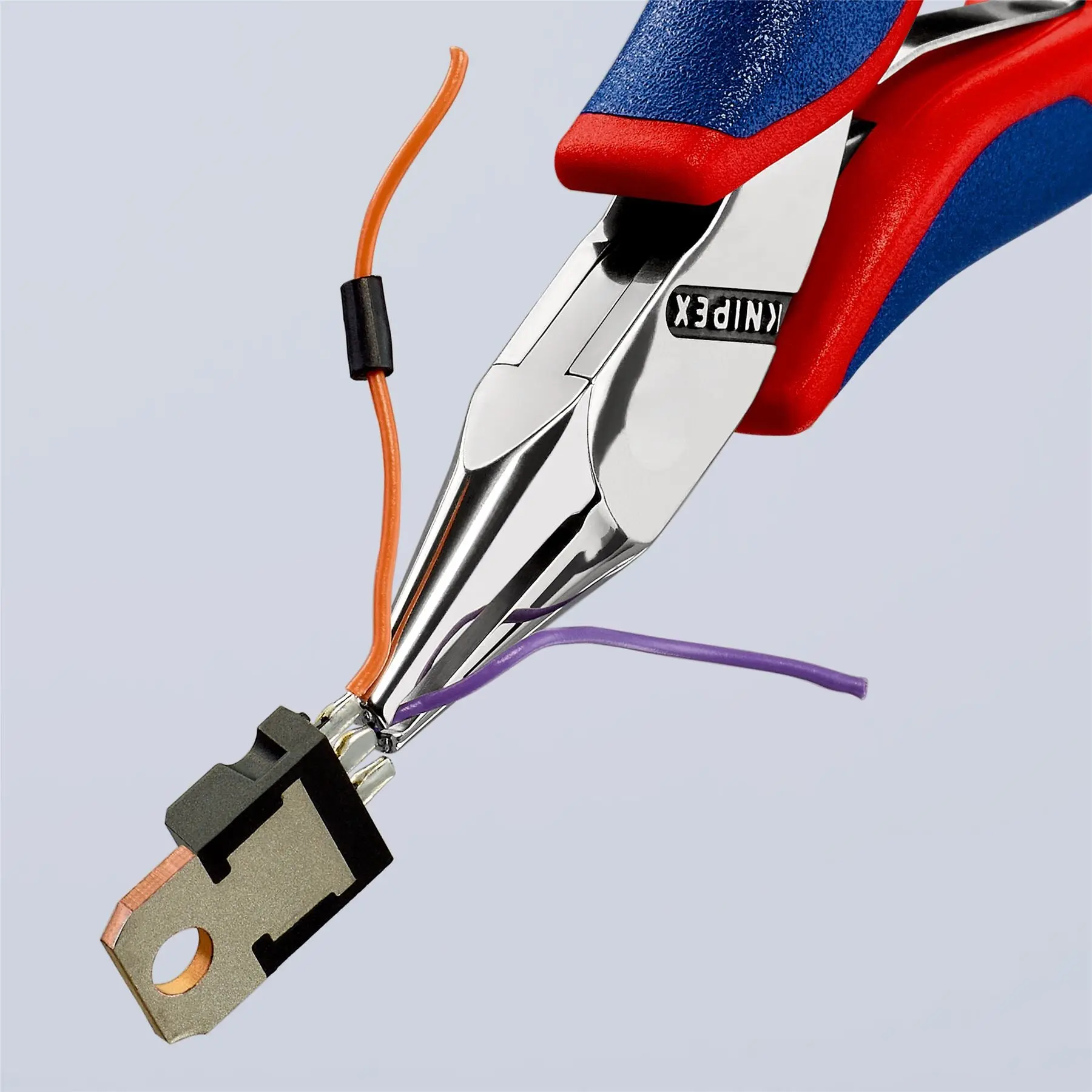

Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Sturdy, zero backlash box joint. Low-friction double spring for gentle and even opening. The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools. Cutters additionally laser hardened, cutter hardness at least 56 HRC. End Cutter, mini-blade with small bevel.

Cutting capacities soft wire (diameter): Ø 0.8 mm

Head width (A): 11 mm

Jaw length (B): 20 mm

Jaw thickness (joint) (D): 6 mm

Cutting edge length mm (C): 3 mm

Technical Information:

• Cutters additionally laser hardened, cutter hardness at least 56 HRC
• low-friction double spring for gentle and even opening
• precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• sturdy, zero backlash box joint
• the polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools

Downloadable Files:

• Data Sheet: View Here
