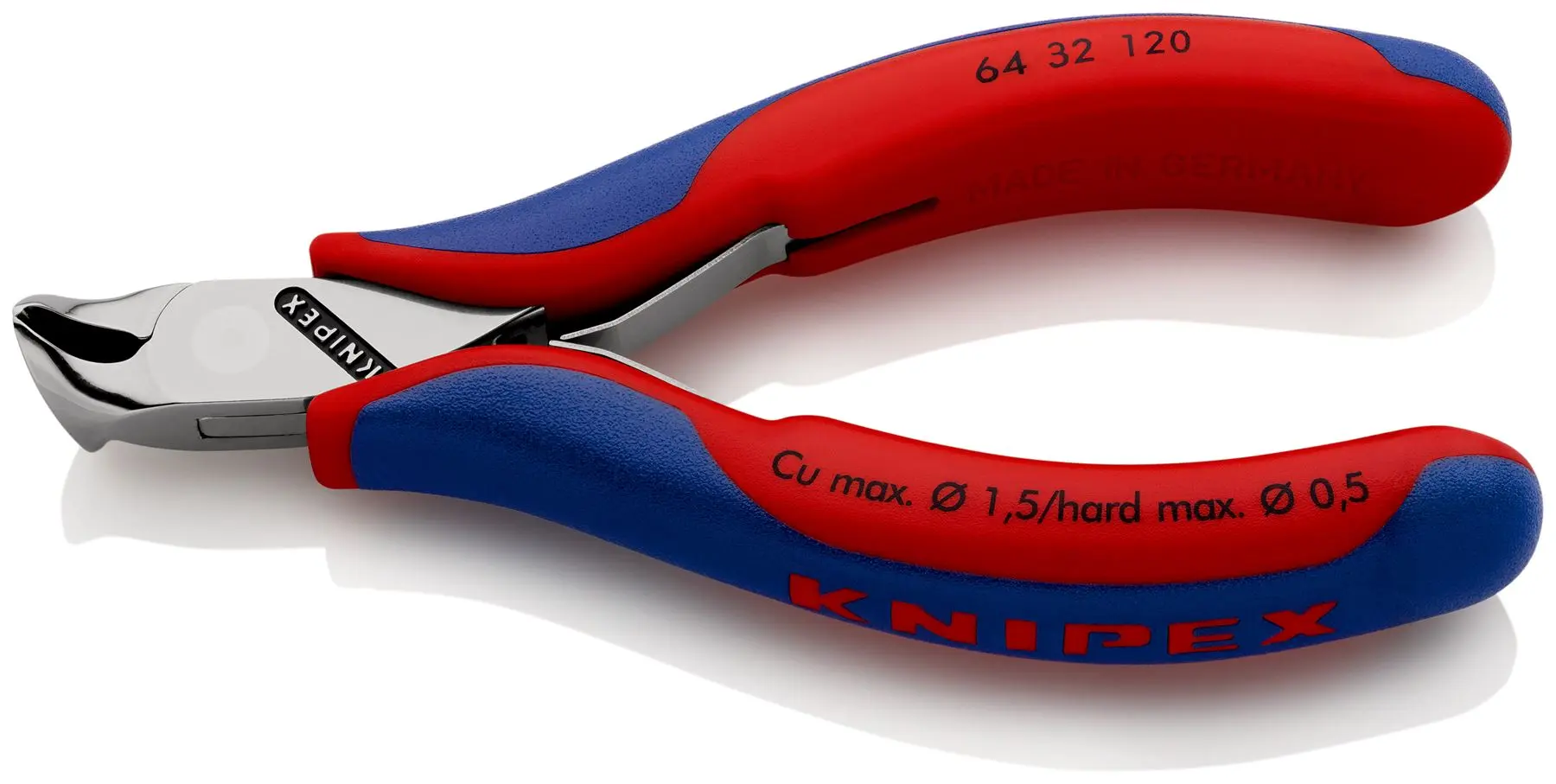

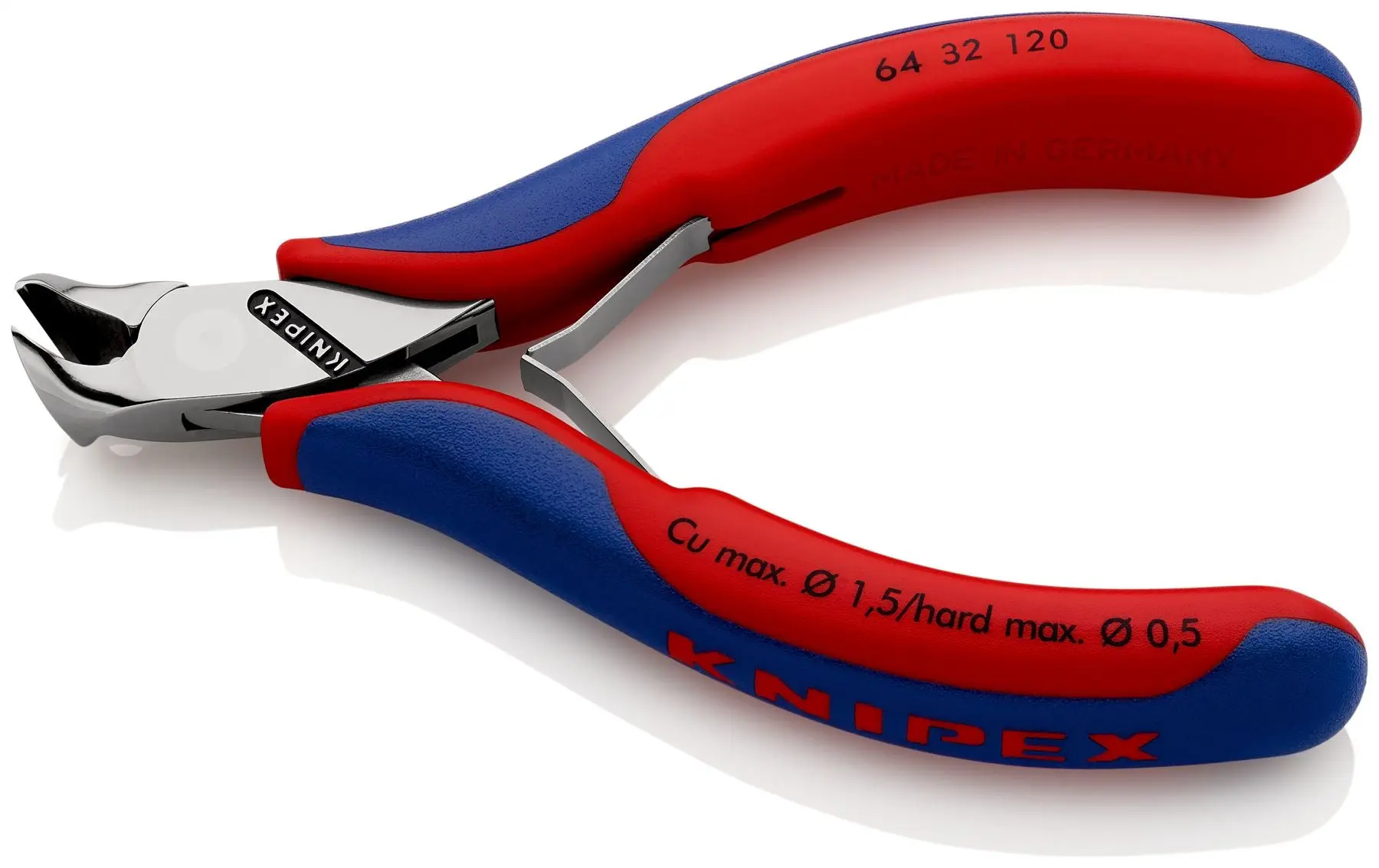

KNIPEX Precision Electronics End Cutting Nipper Pliers 15° Bend 120mm Multi Component Grips 64 32 120

KNIPEX Precision Electronics End Cutting Nipper Pliers 15° Bend 120mm Multi Component Grips 64 32 120

64 32 120 Electronics End Cutting Nipper
Precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics. Sturdy, zero backlash box joint. Low-friction double spring for gentle and even opening. The polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools. Cutters additionally laser hardened, cutter hardness at least 56 HRC. Oblique End Cutter, short head, with small bevel, α = 15°.

Cutting capacities soft wire (diameter): Ø 1.5 mm

Cutting capacities medium hard wire (diameter): Ø 1.0 mm

Schneidwerte harter Draht (Durchmesser): Ø 0.5 mm

Head width (A): 11 mm

Jaw length (B): 10 mm

Jaw thickness (joint) (D): 7 mm

Cutting edge length mm (C): 17 mm

Technical Information:

• Cutters additionally laser hardened, cutter hardness at least 56 HRC
• low-friction double spring for gentle and even opening
• precision pliers for ultra fine cutting work, e. g. in electronics and fine mechanics
• sturdy, zero backlash box joint
• the polish or mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools

Downloadable Files:

• Data Sheet: View Here
