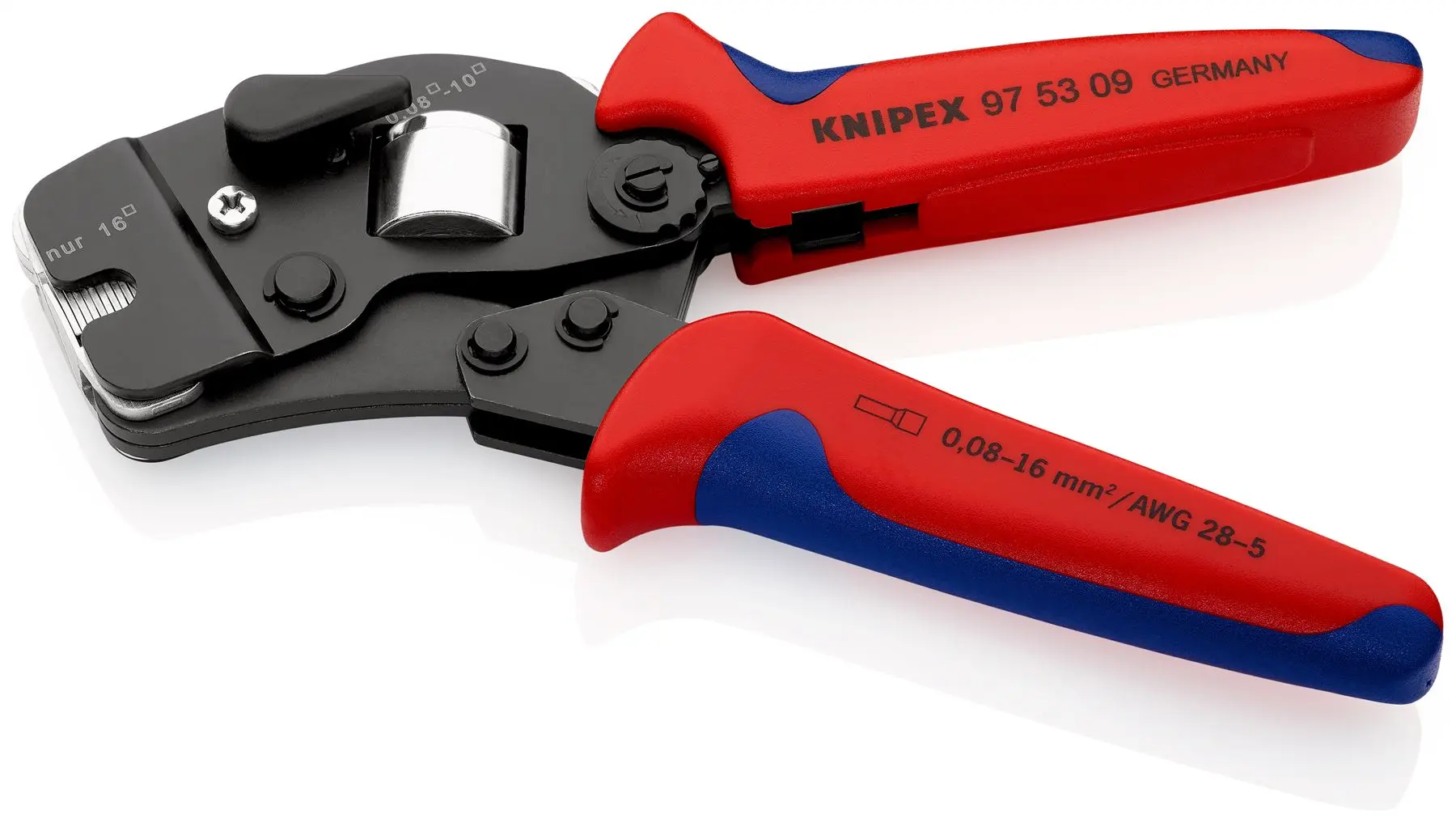

97 53 09 SB Self-Adjusting Crimping Pliers for wire ferrules
For crimping wire ferrules according to DIN 46228 parts 1 + 4. Self-adjusting adaptation to the desired wire ferrule size: no wrong crimps caused by using the wrong die. Frontal insertion of the wire ferrules into the pliers. Repetitive, high crimping quality due to ratchet mechanism (unlockable). Tools have been set precisely (calibrated) in the factory. Optimum transmission of force thanks to toggle lever for fatigue-reduced operation. Handy shape and low weight provide high operation comfort UL approval in conjunction with KNIPEX-AEH 97 99 330 - 399. compression from 0.08 - 10.0 and 16.0 mm² in one profile. with selector lever for setting the crimping area either to 0.08 - 10 mm² or 16 mm². also suitable for twin wire ferrules up to 2 x 10 mm², but smaller than Ø 6.6 mm (e.g. KNIPEX art. no. 97 99 377). self-service card/blister.

Application: Wire ferrules

Capacity in square millimetres: 0.08 — 10 / 16 mm²

Number of crimping positions: 1

AWG: 28 — 6

Technical Information:

• also suitable for twin wire ferrules up to 2 x 10 mm², but smaller than Ø 6.6 mm (e.g. KNIPEX art. no. 97 99 377)
• compression from 0.08 - 10.0 and 16.0 mm² in one profile
• for crimping wire ferrules according to DIN 46228 parts 1 + 4

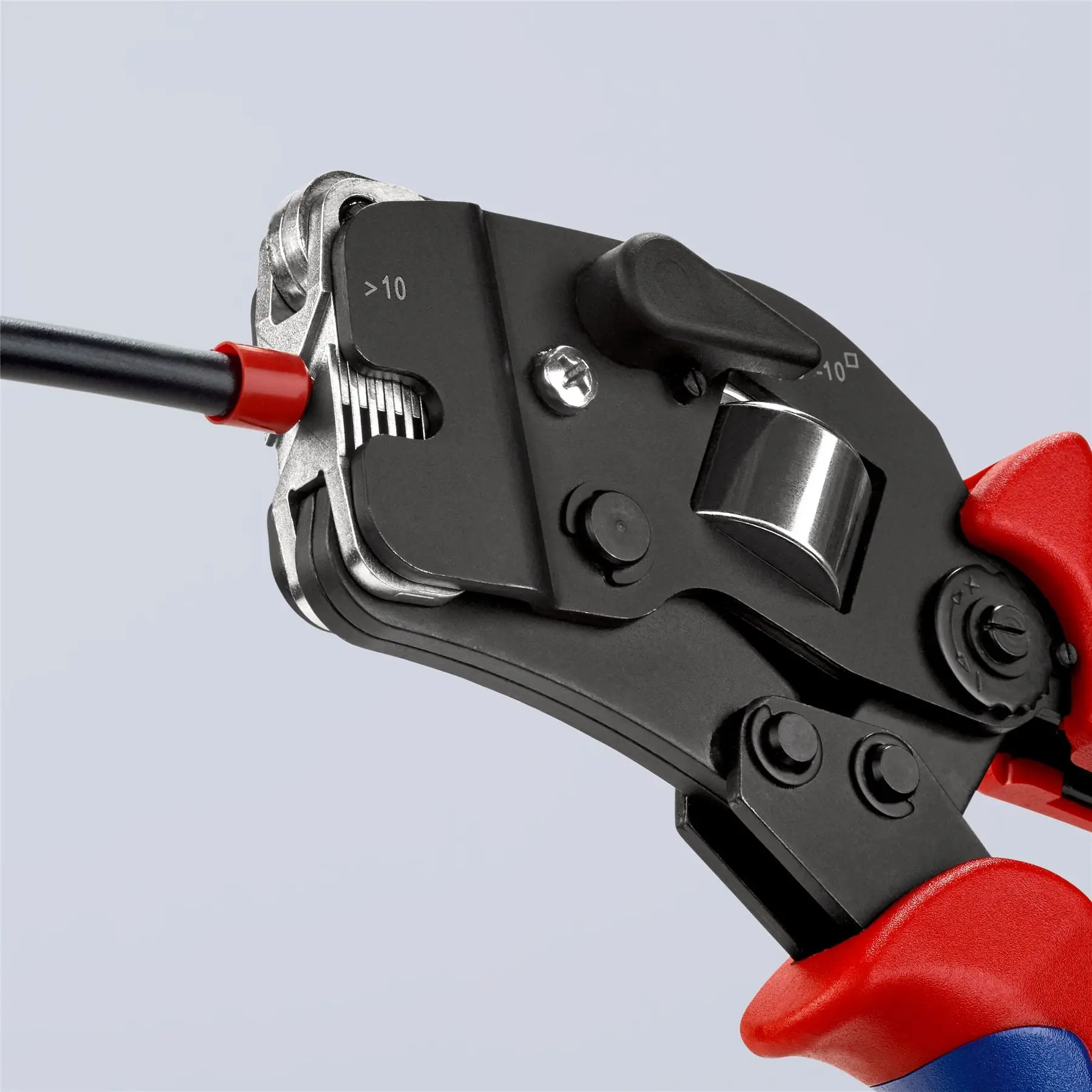

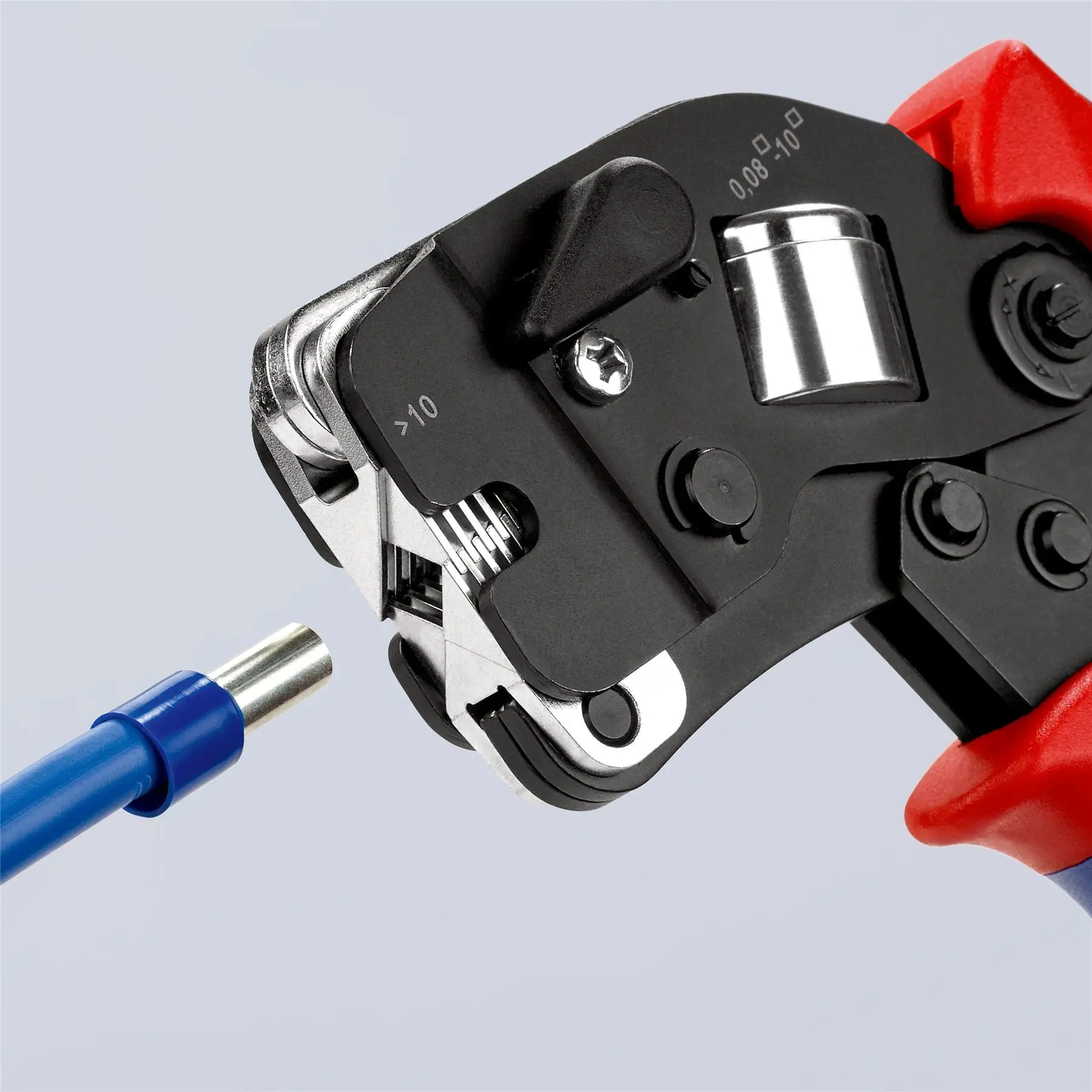

• Frontal insertion of the wire ferrules into the pliers
• handy shape and low weight provide high operation comfort
• optimum transmission of force thanks to toggle lever for fatigue-reduced operation
• Repetitive, high crimping quality due to ratchet mechanism (unlockable)
• self-adjusting adaptation to the desired wire ferrule size: no wrong crimps caused by using the wrong die
• tools have been set precisely (calibrated) in the factory
• with selector lever for setting the crimping area either to 0.08 - 10 mm² or 16 mm²

Downloadable Files:

• Data Sheet: View Here
