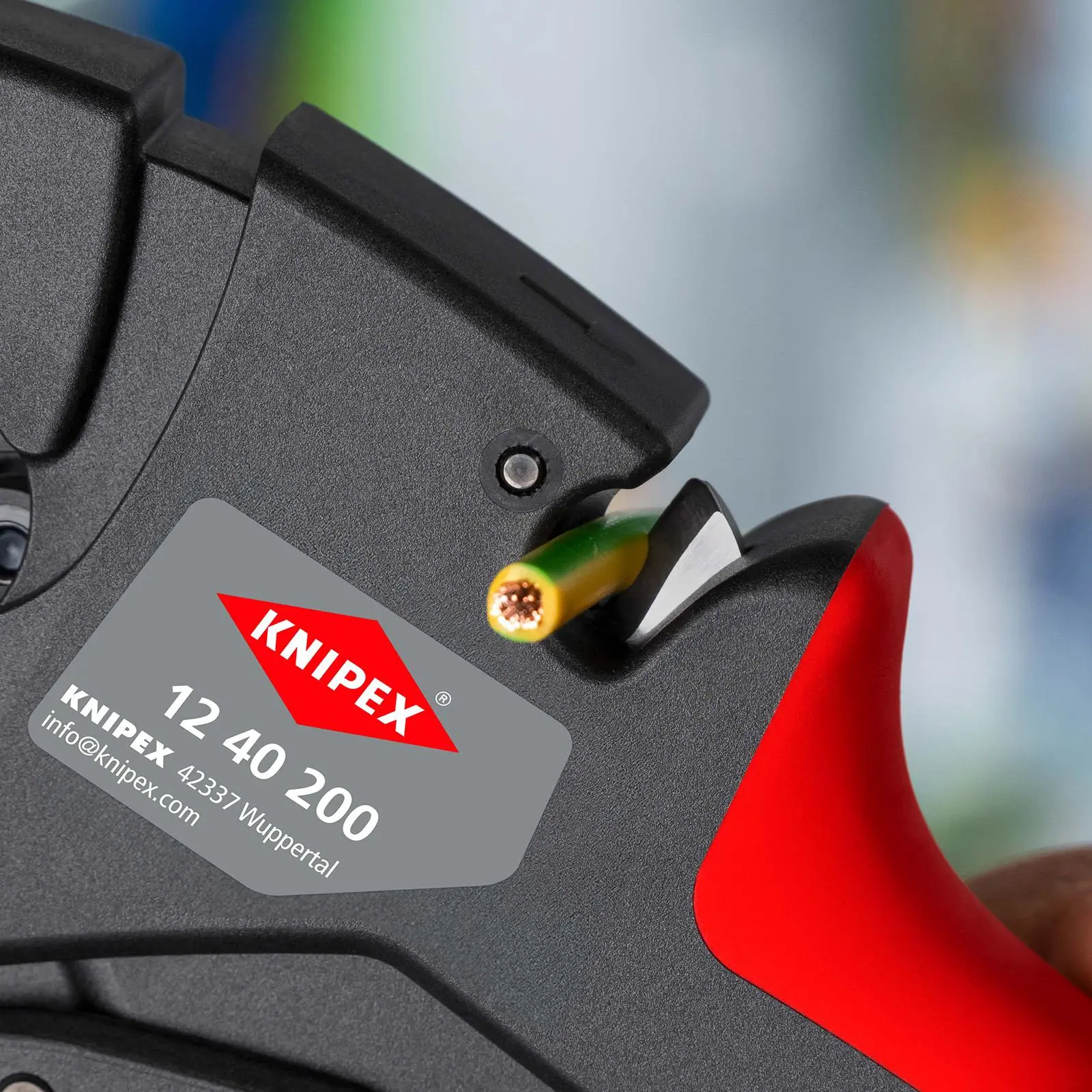

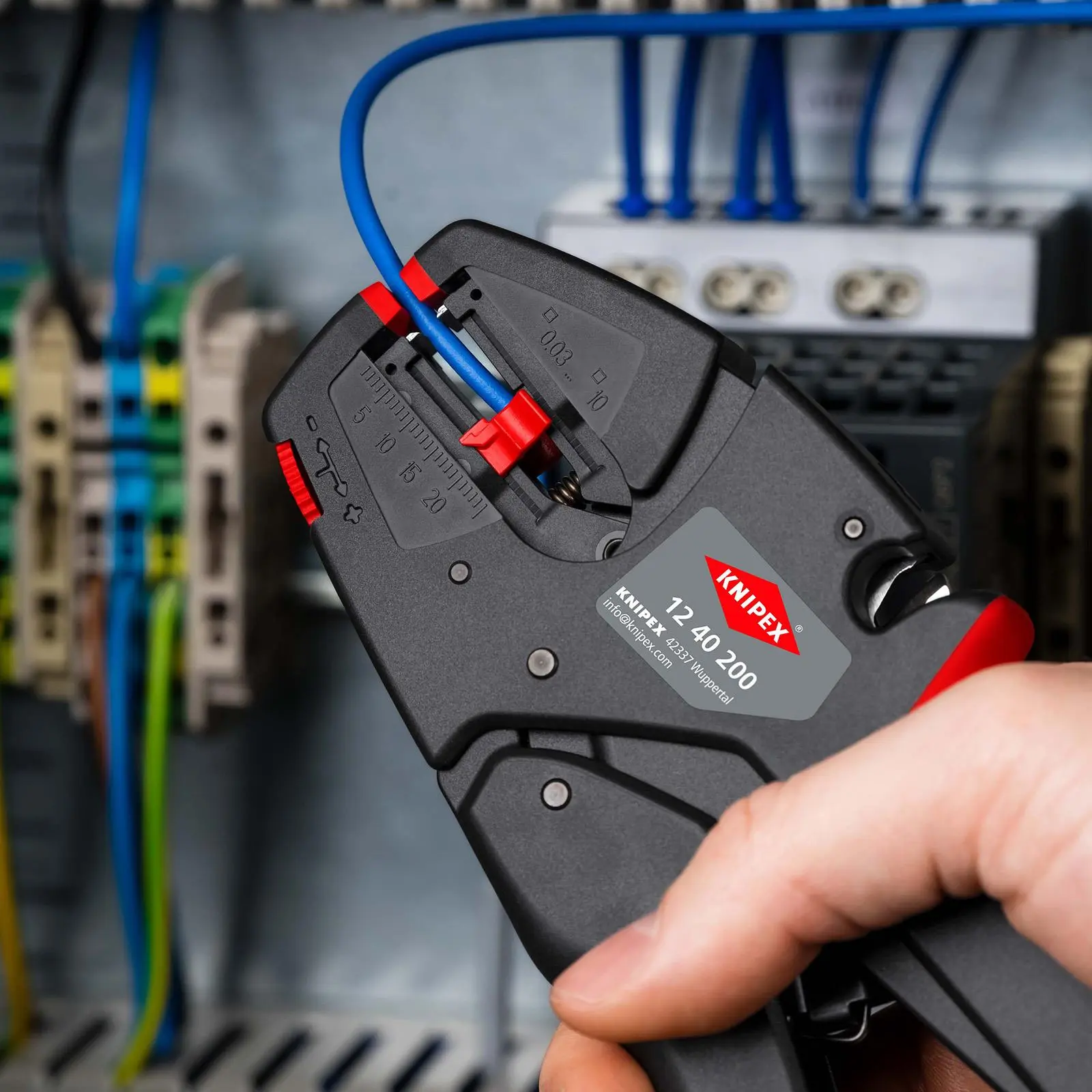

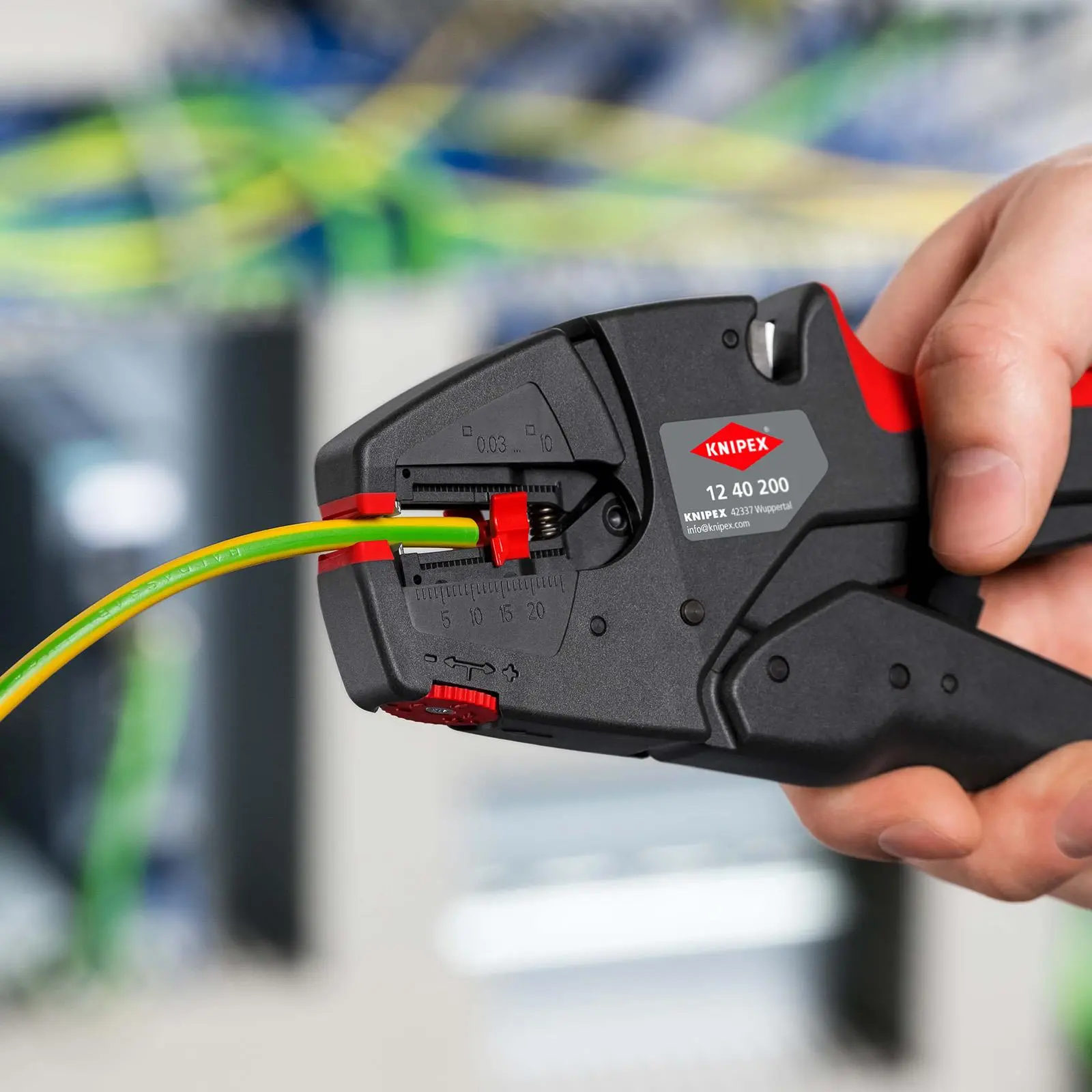

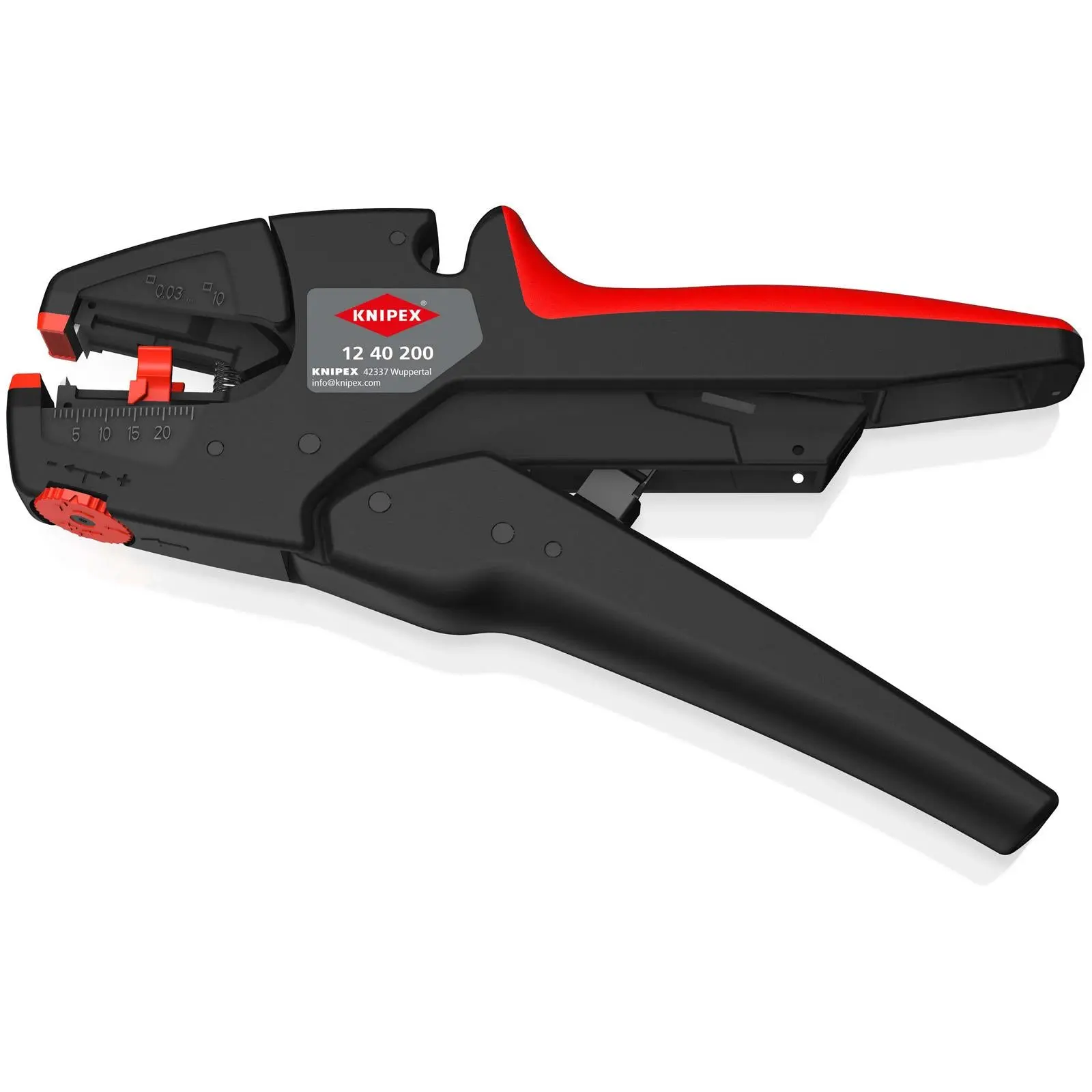

KNIPEX Self Adjusting Insulation Stripper 200mm Stripping Pliers 12 40 200

KNIPEX EvoStrip Self Adjusting Insulation Stripper 200mm Stripping Pliers 12 40 200

12 40 200 KNIPEX EvoStrip
Stripping from 0.03 to 10.0 mm². For single, multiple and fine stranded conductors with plastic or rubber insulation. Adapts automatically to the respective cable cross-section; prevents damage to the conductor. Cutting depth can be adjusted for different insulation materials. With cable cutter for copper and aluminium wires, multiple stranded up to 10 mm² and single stranded up to 6 mm². Smoothly operating mechanism. Stripping blades and clamping jaws easily replaceable. Low weight. for thin ribbon cables up to 10.0 mm width in a single pass.

Stripping capacities in square millimetres: 0.03 — 10.0 mm²

Length stop: 3 – 18 mm

AWG: 32 — 8

Technical Information:

• Stripping from 0.03 to 10.0 mm²
• For single, multiple and fine stranded conductors with plastic or rubber insulation

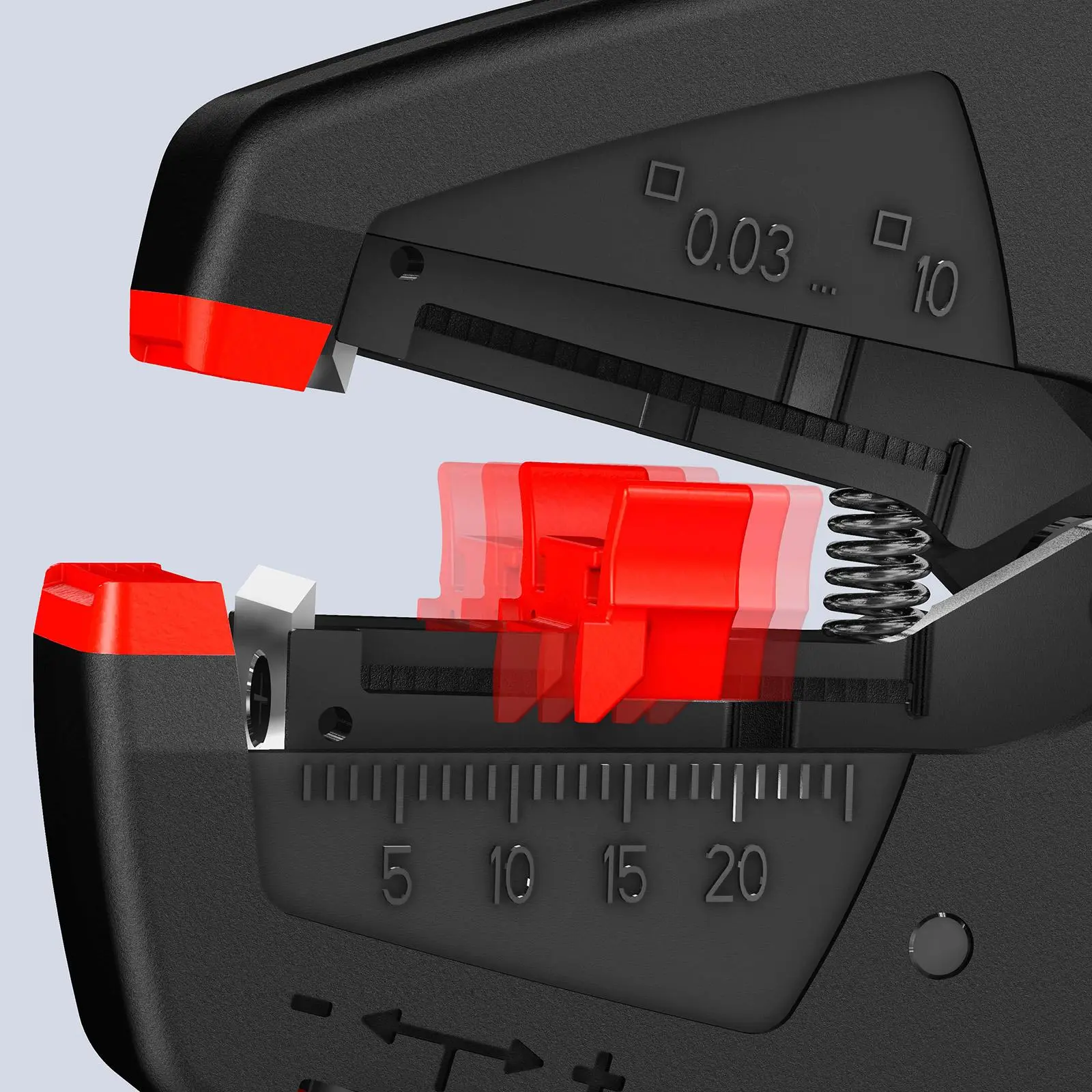

• Adapts automatically to the respective cable cross-section
• Prevents damage to the conductor

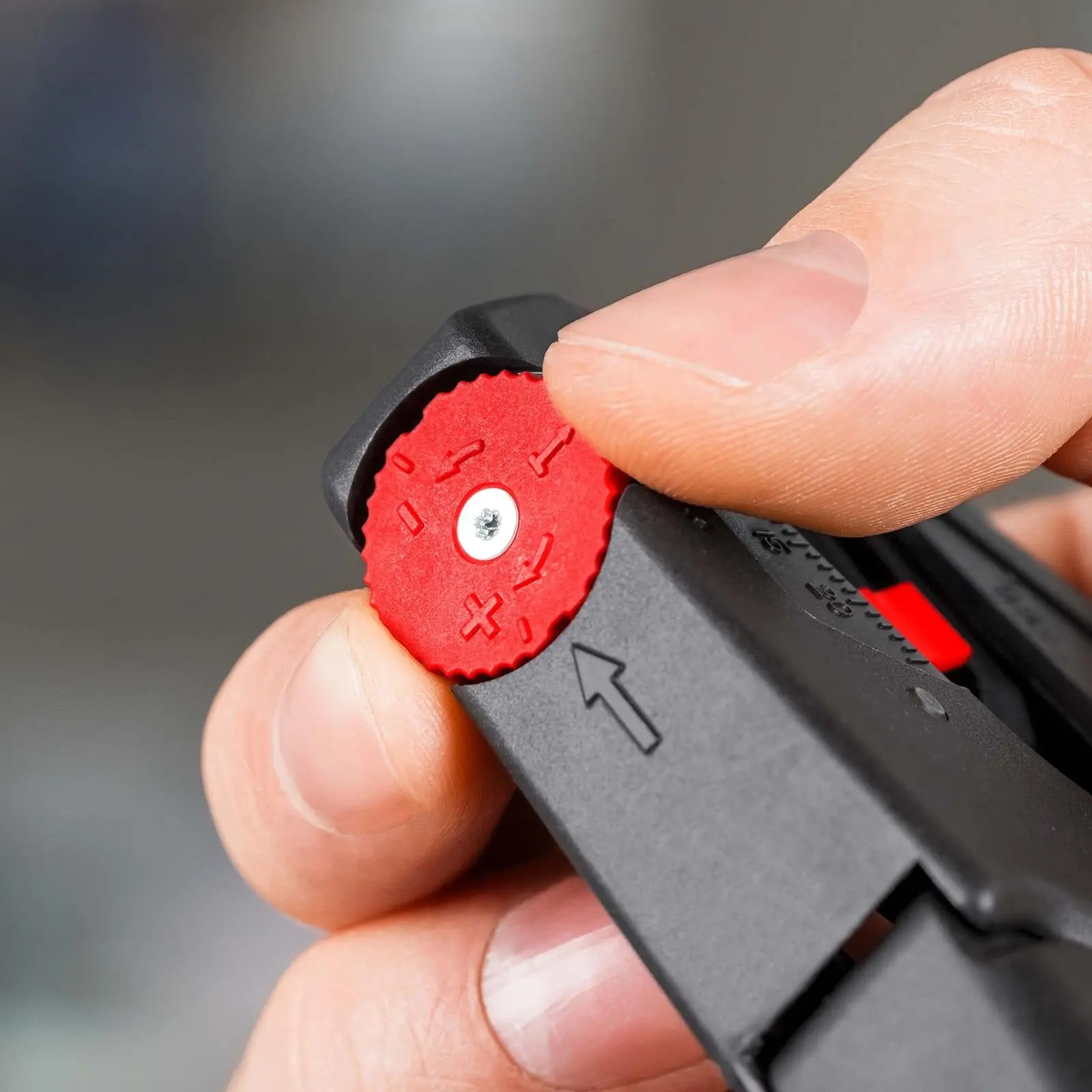

• Cutting depth can be adjusted for different insulation materials
• With cable cutter for copper and aluminium wires, multiple stranded up to 10 mm² and single stranded up to 6 mm²
• smoothly operating mechanism
• stripping blades and clamping jaws easily replaceable
• Low weight
• for thin ribbon cables up to 10.0 mm width in a single pass

Downloadable Files:

• Data Sheet: View Here
