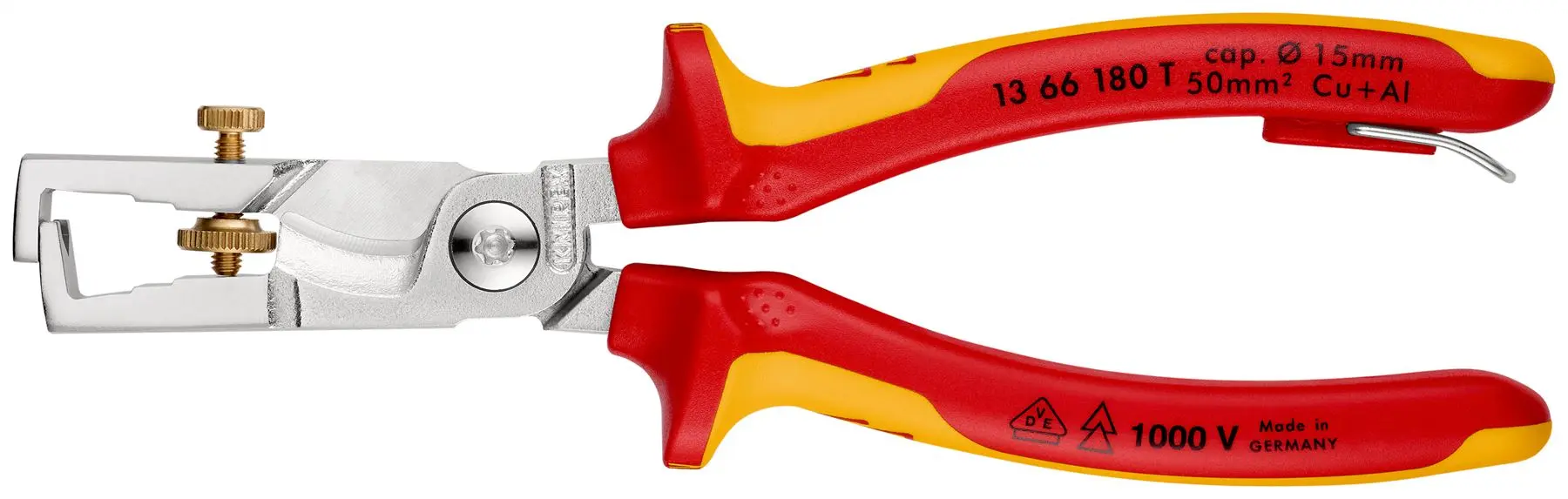

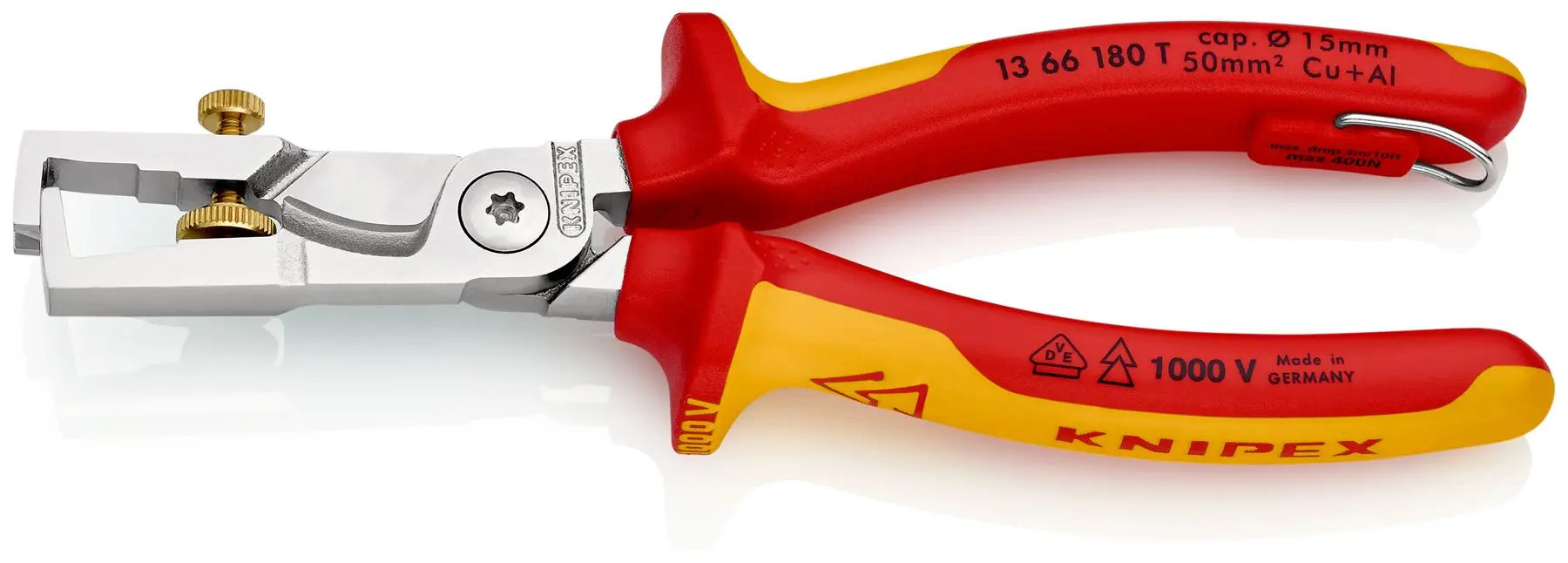

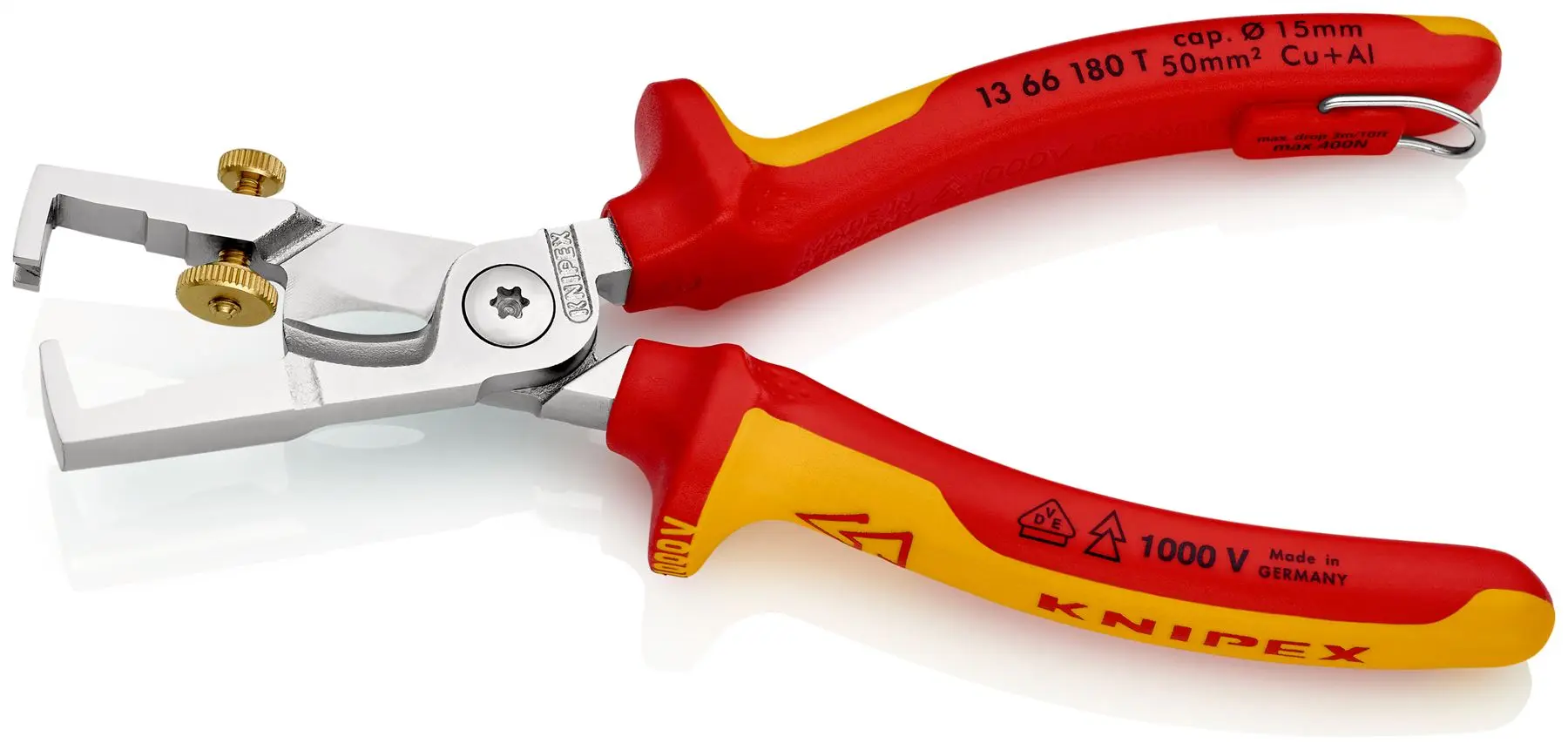

Knipex StriX Insulation Strippers with Cable Shears 180mm VDE Tested 1000V with Tether Point 13 66 180 T

KNIPEX StriX Insulation Strippers with Cable Shears 180mm VDE Tested 1000V with Tether Point 13 66 180 T

13 66 180 T KNIPEX StriX®
Wire stripper with cable shears – two essential electrical installations tools in one pair of pliers. Integrated cable shears for the clean cutting of Cu- and Al-cables without crushing. Cutting edges additionally induction-hardened, cutting edge hardness approx. 57 HRC. Universal adjustment of the stripping blades by means of a knurled screw. Slim dimensions for easy access. Stripping of single-, multi- and fine stranded conductors with plastic or rubber insulation up to Ø 5 mm or 10 mm² cross-section. Graduated jaw provides a visual orientation aid when stripping wire in standard lengths (11 mm and 16 mm). Pliers with integrated, insulated tether attachment point for a tool tether.

Cutting capacity copper cable, multiple-stranded: 50 mm²

Cutting capacity copper cable, multiple-stranded: Ø 15 mm

Stripping capacities in square millimetres: 10.0 mm²

Stripping capacities (diameter): Ø 5.0 mm

AWG: 8

Drop Protection System: yes

VDE tested: yes

Technical Information:

• cutting edges additionally induction-hardened, cutting edge hardness approx. 57 HRC
• Graduated jaw provides a visual orientation aid when stripping wire in standard lengths (11 mm and 16 mm)

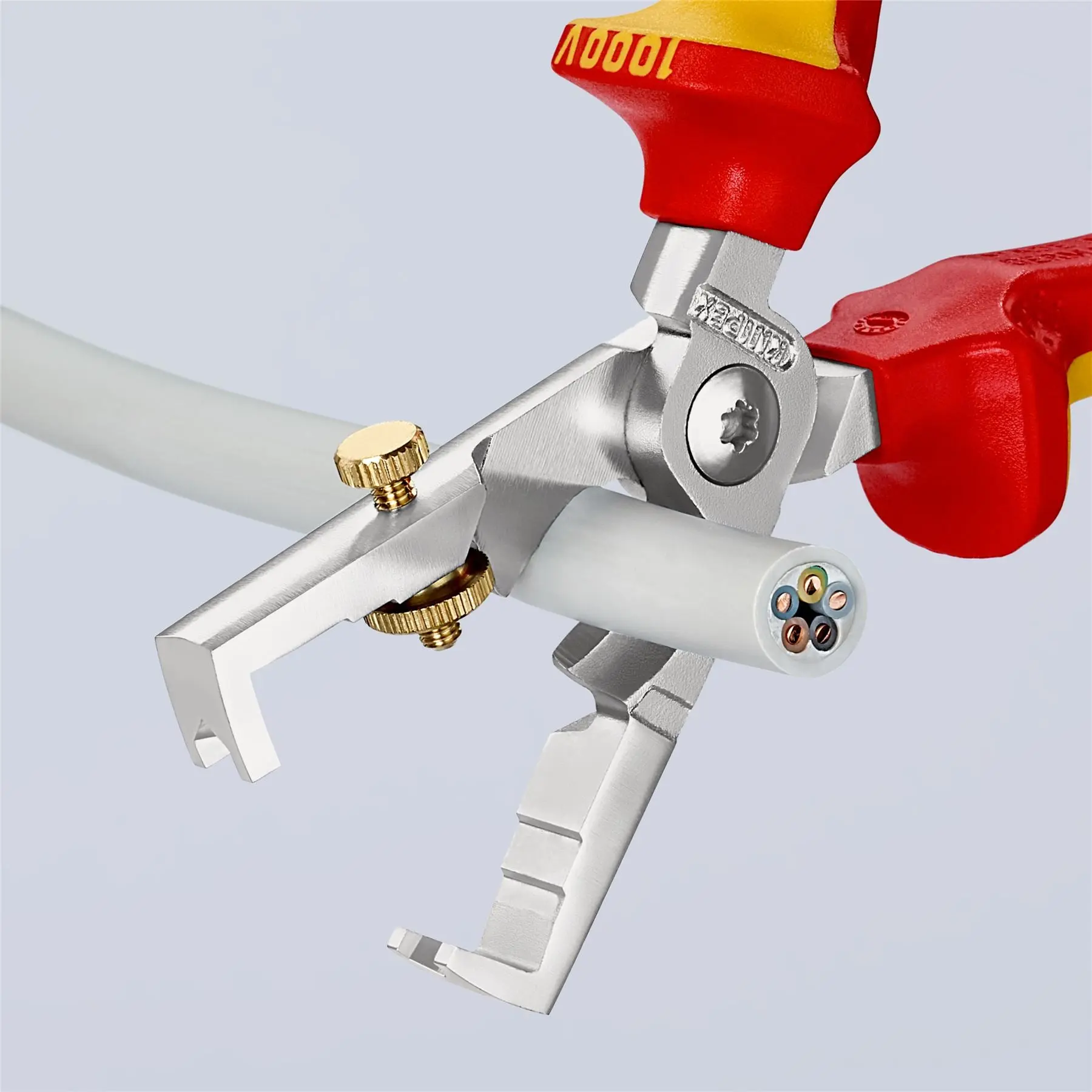

• Integrated cable shears for the clean cutting of Cu- and Al-cables without crushing up to Ø 15 mm (5 x 2,5 mm²)
• Pliers with integrated, insulated tether attachment point for a tool tether
• slim dimensions for easy access

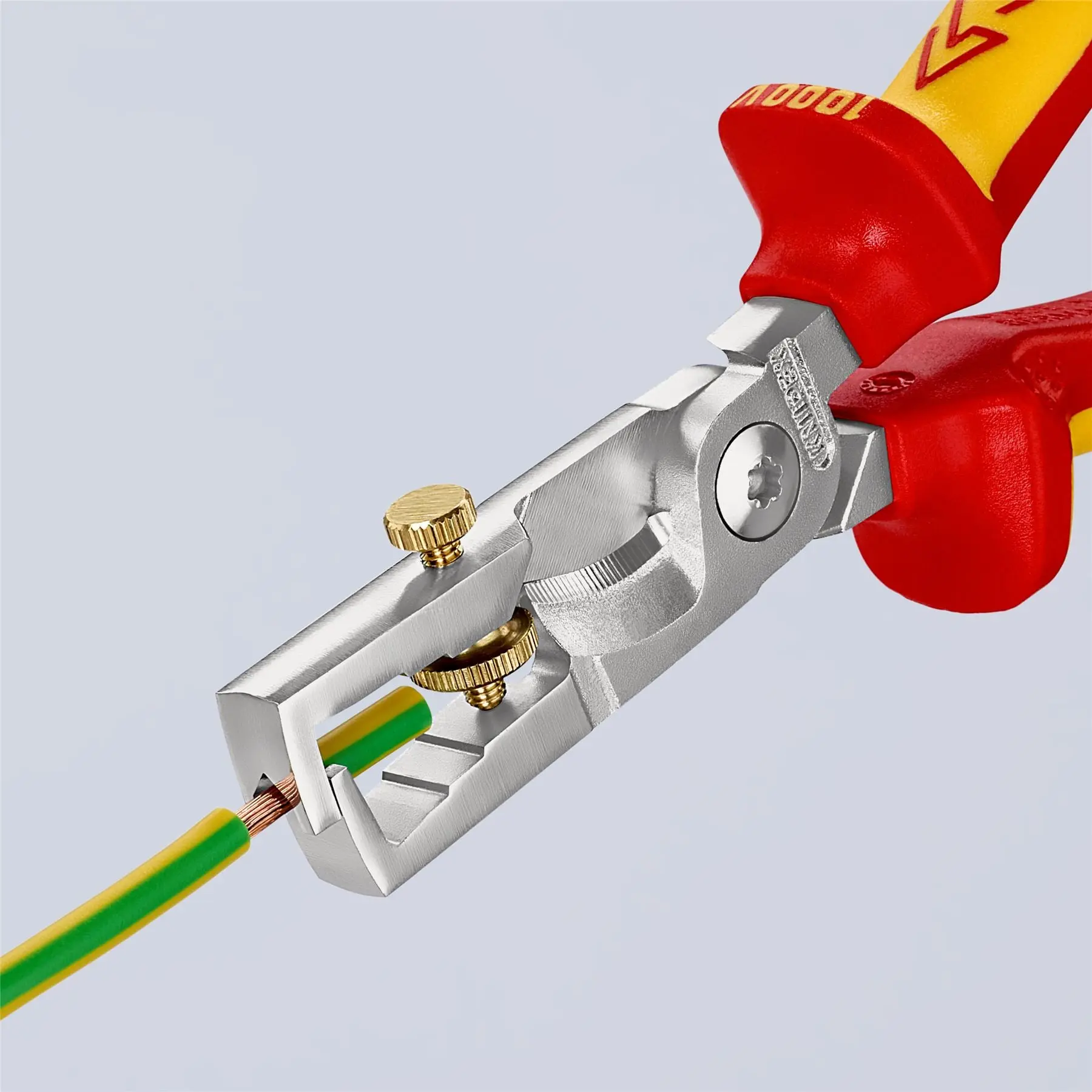

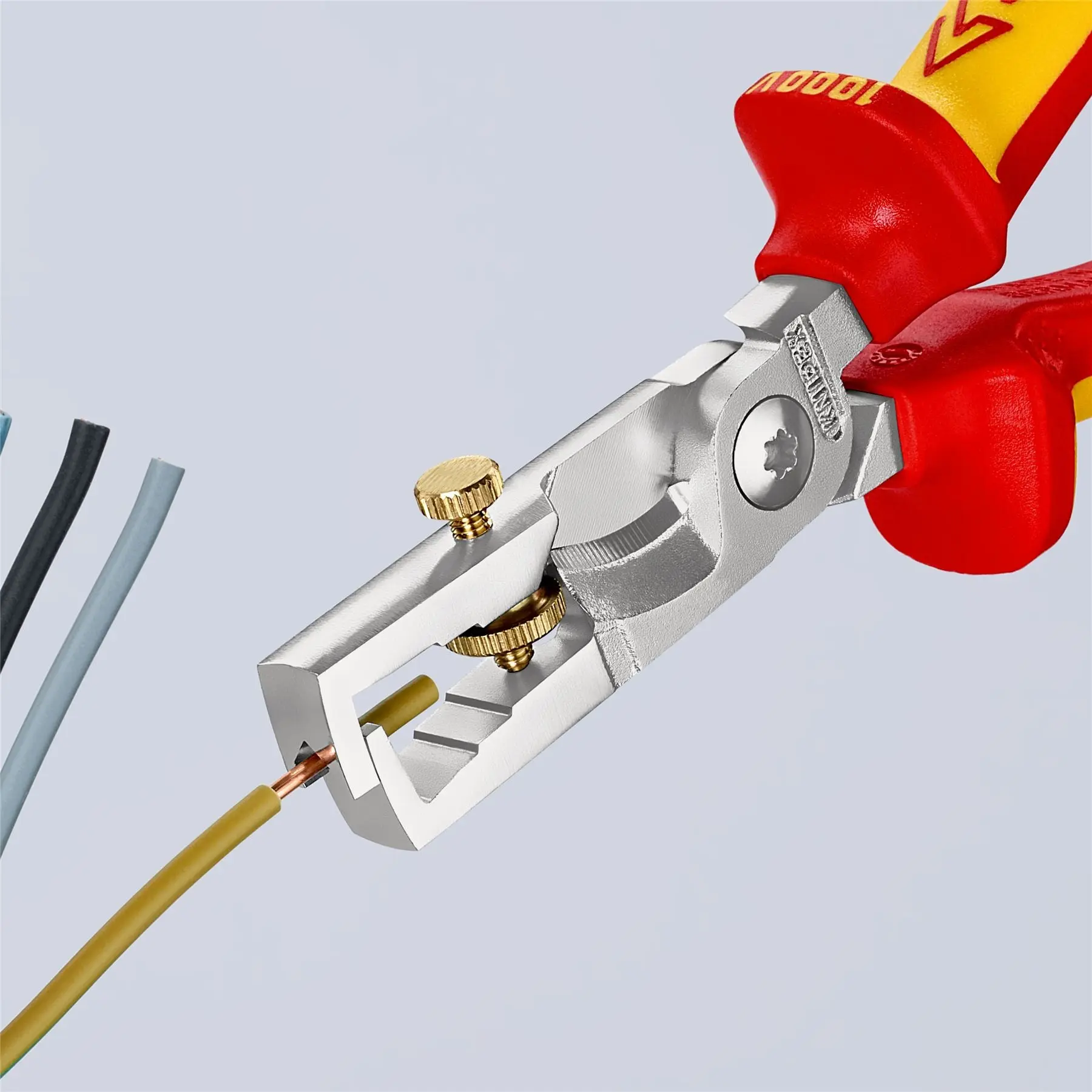

• Stripping of single-, multi- and fine stranded conductors with plastic or rubber insulation up to Ø 5 mm or 10 mm² cross-section
• Universal adjustment of the stripping blades by means of a knurled screw

Downloadable Files:

• Data Sheet: View Here
