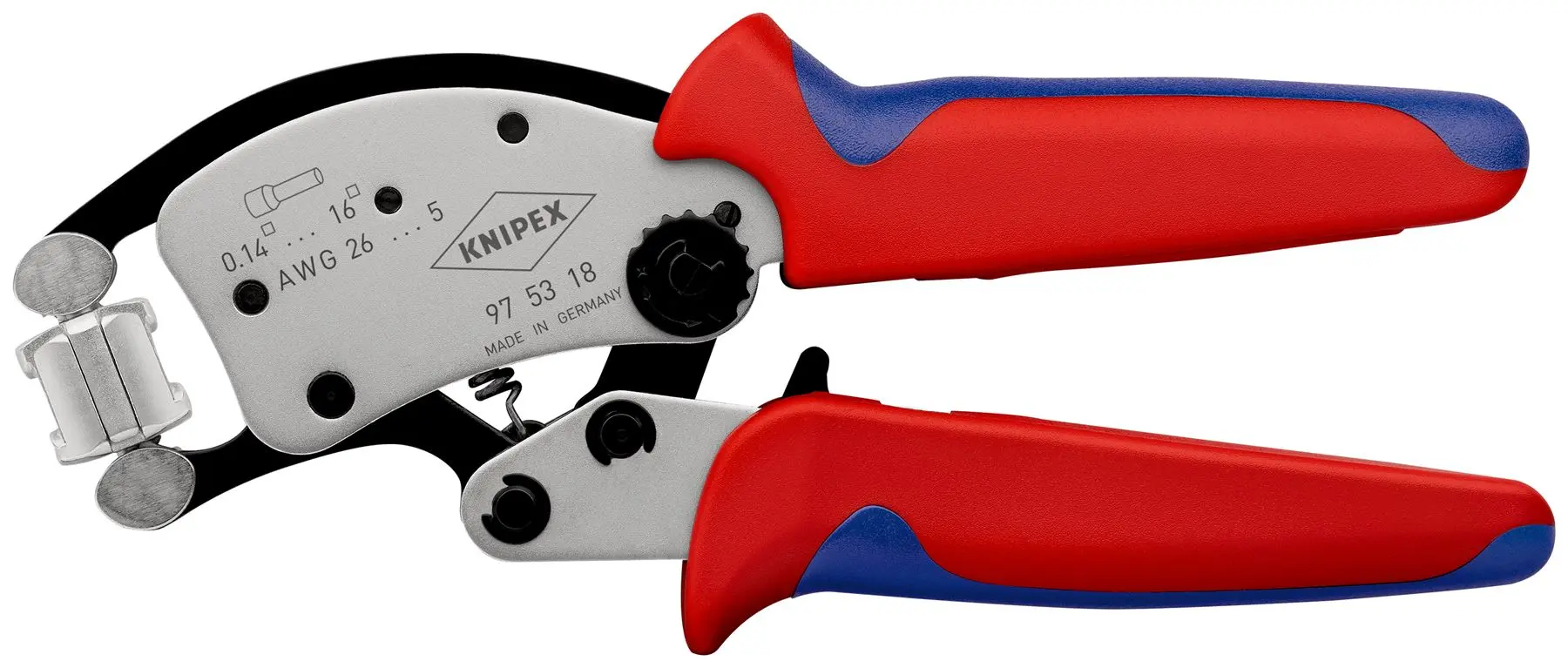

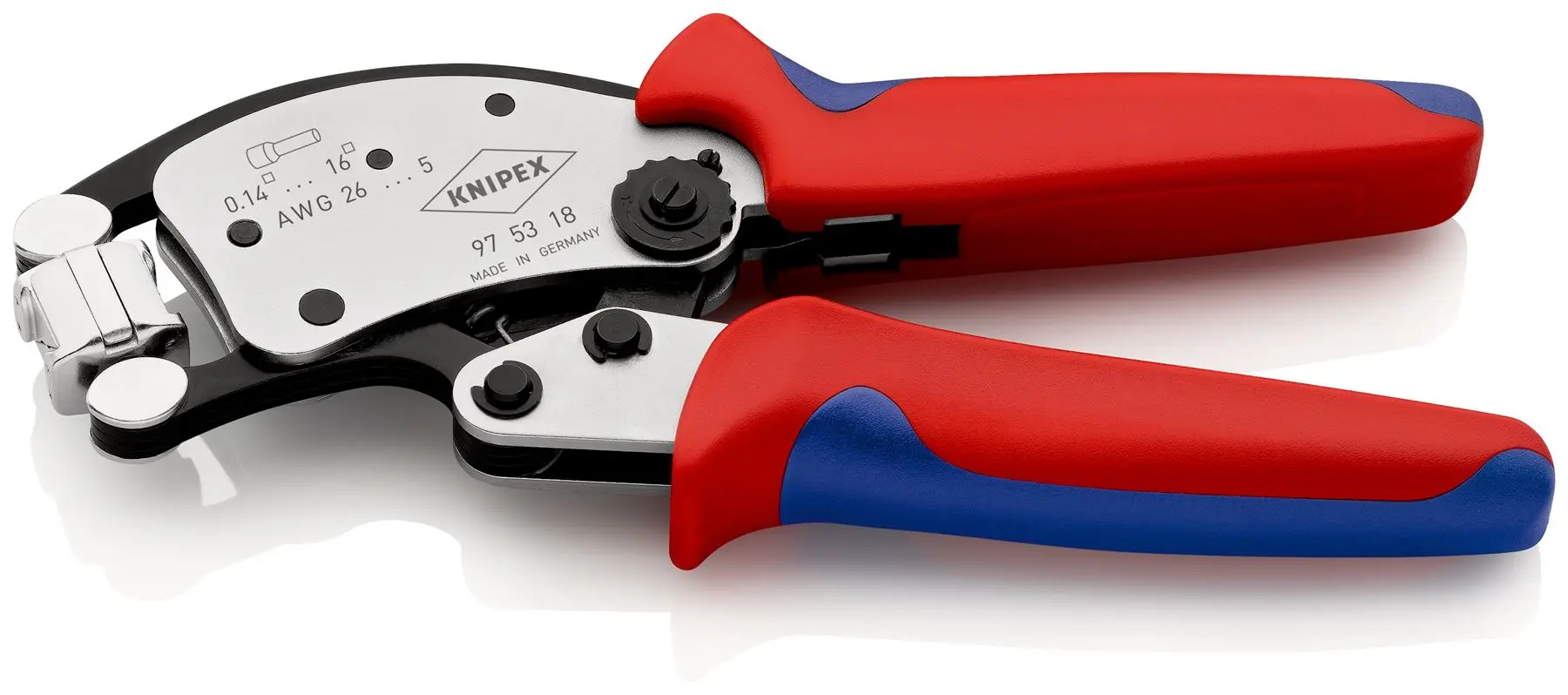

Knipex Twistor 16 Self Adjusting Crimping Pliers for Wire Ferrules with Rotatable Die Head 97 53 18

KNIPEX Twistor 16 Self Adjusting Crimping Pliers for Wire Ferrules with Rotatable Die Head 97 53 18

97 53 18 KNIPEX Twistor 16

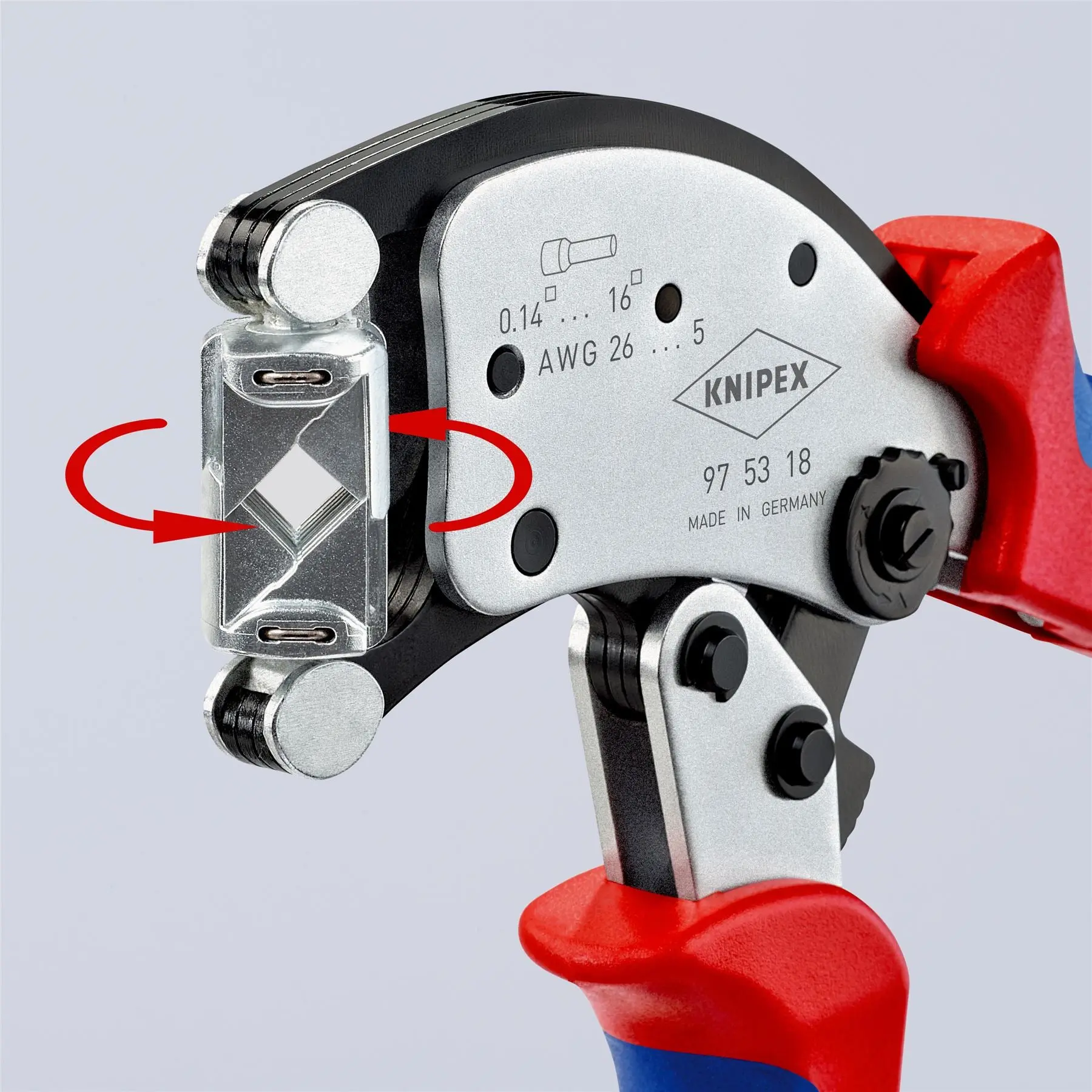

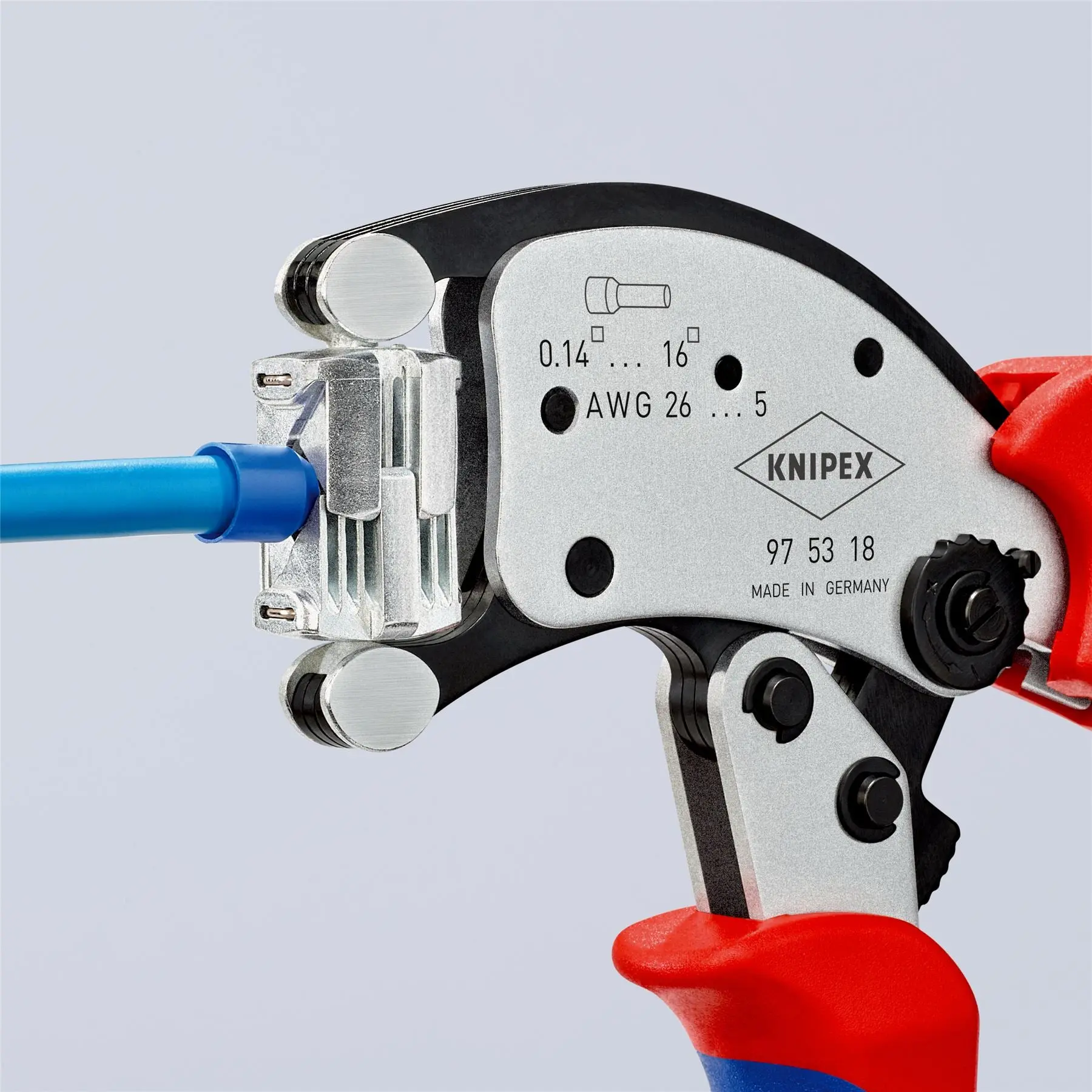

Crimp head can be rotated 360°, with 8 locking positions. Square crimp profile, high capacity range from 0.14 to 16 mm². Wire ferrules can be crimped from almost any working position. Crimping pliers adjust automatically to different cross-sections. Crimp opening accessible from both sides, extra-long wire ferrules can be fed in. Crimping of Twin wire ferrules up to 2 x 6 mm² possible. Repetitive, high crimping quality due to ratchet mechanism (unlockable). Light and handy tool, manual force reinforced by toggle lever mechanism.

Application: Wire ferrules

Capacity in square millimetres: 0.14 — 16 mm²

AWG: 26 — 6

Number of crimping positions: 1

Technical Information:

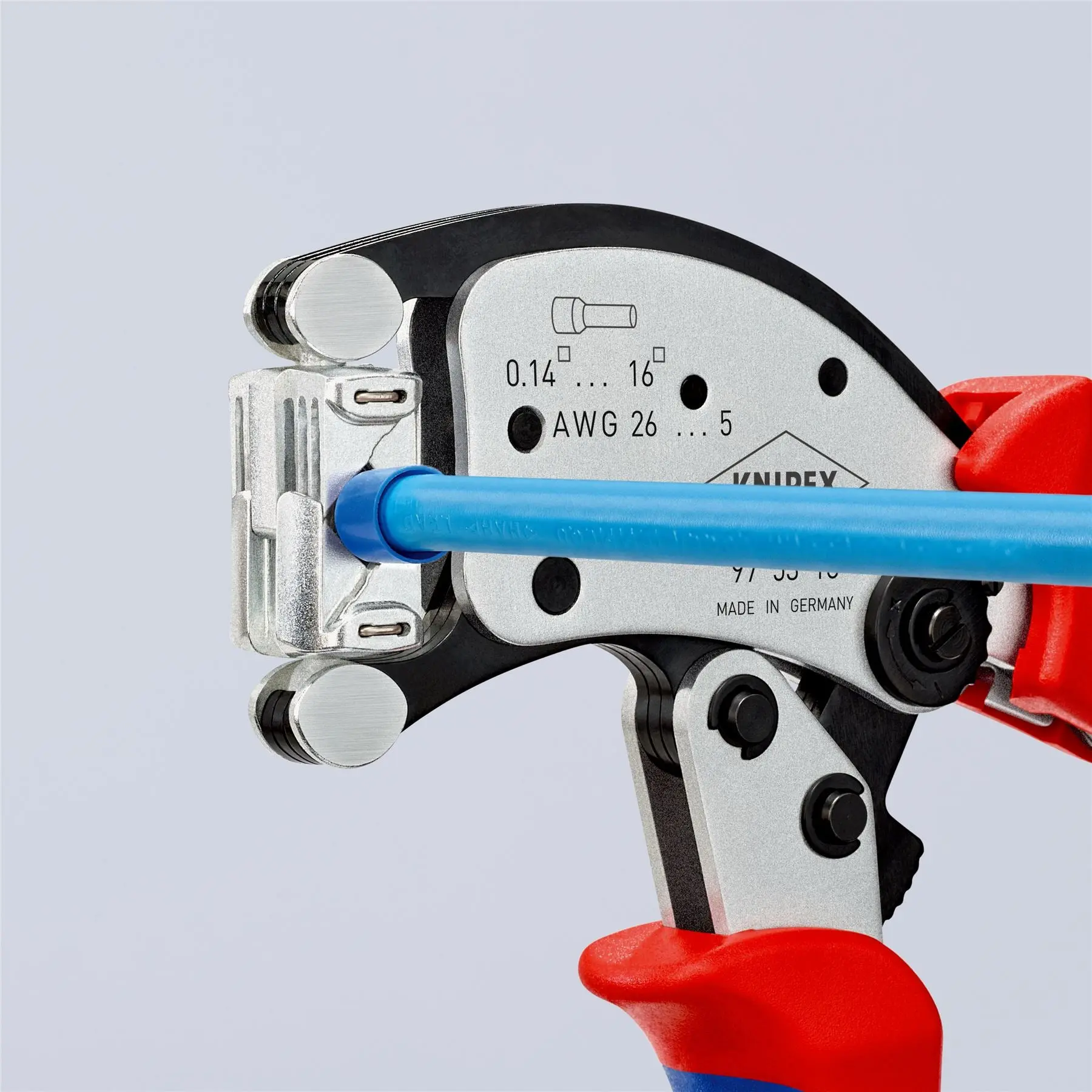

• Crimp opening accessible from both sides, extra-long wire ferrules can be fed in
• Crimping of Twin wire ferrules up to 2 x 6 mm² possible
• Crimping pliers adjust automatically to different cross-sections
• Light and handy tool, manual force reinforced by toggle lever mechanism
• Repetitive, high crimping quality due to ratchet mechanism (unlockable)

Downloadable Files:

• Data Sheet: View Here
