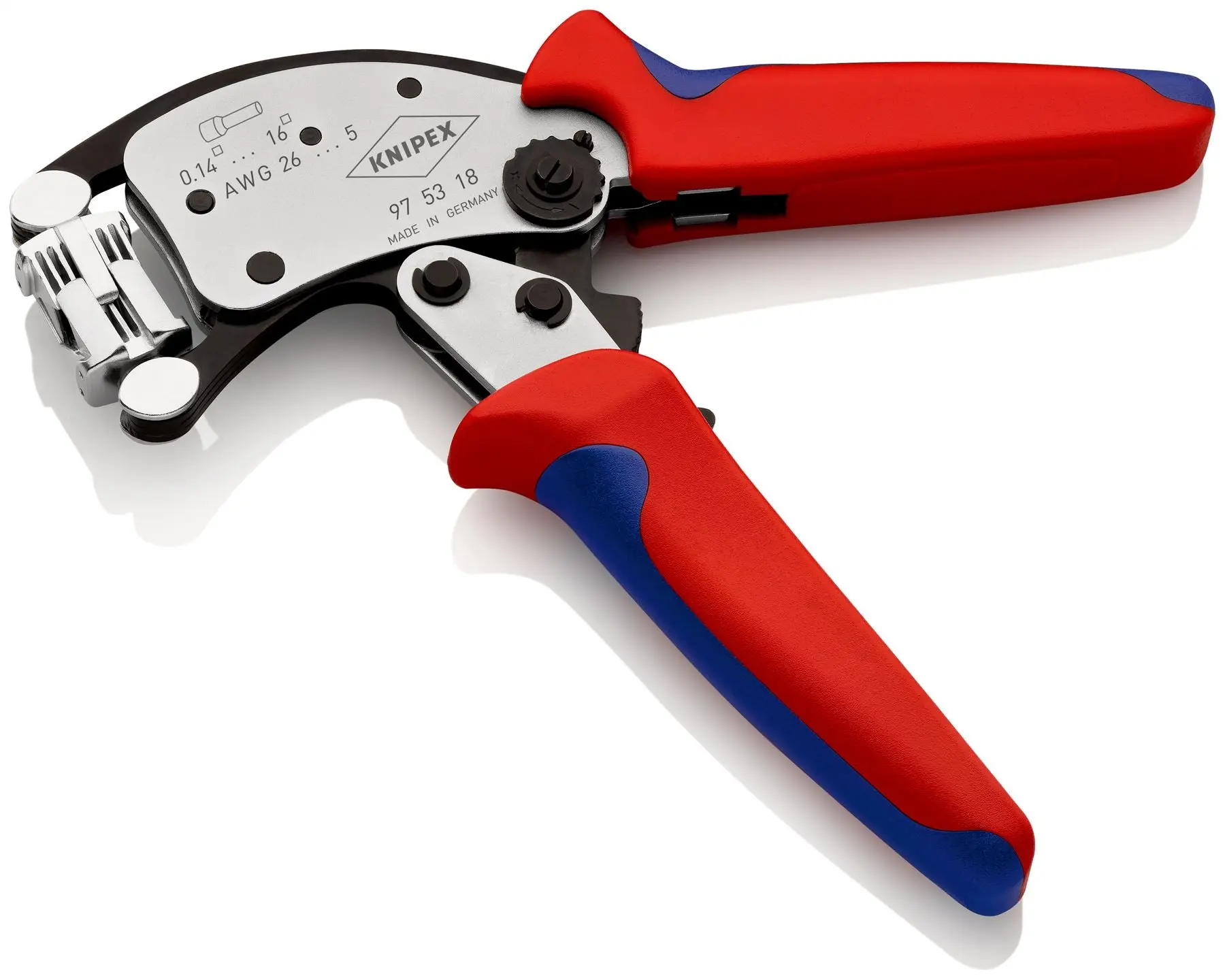

KNIPEX Twistor16 Self Adjusting Crimping Pliers Wire Ferrules Rotatable Die Head 0.14-16mm² 200mm Multi Component Grips 97 53 18 SB

KNIPEX Twistor16 Self Adjusting Crimping Pliers Wire Ferrules Rotatable Die Head 0.14-16mm² 200mm Multi Component Grips 97 53 18 SB

97 53 18 SB KNIPEX Twistor16®
Crimp head can be rotated 360°, with 8 locking positions. Square crimp profile, high capacity range from 0.14 to 16 mm². Wire ferrules can be crimped from almost any working position. Crimping pliers adjust automatically to different cross-sections. Crimp opening accessible from both sides, extra-long wire ferrules can be fed in. Crimping of Twin wire ferrules up to 2 x 6 mm² possible. Repetitive, high crimping quality due to ratchet mechanism (unlockable). Light and handy tool, manual force reinforced by toggle lever mechanism. self-service card/blister.

Application: Wire ferrules

Capacity in square millimetres: 0.14 — 16 mm²

AWG: 26 — 6

Number of crimping positions: 1

Technical Information:

• Crimp opening accessible from both sides, extra-long wire ferrules can be fed in
• Crimping of Twin wire ferrules up to 2 x 6 mm² possible
• Crimping pliers adjust automatically to different cross-sections
• Light and handy tool, manual force reinforced by toggle lever mechanism
• Repetitive, high crimping quality due to ratchet mechanism (unlockable)

Downloadable Files:

• Data Sheet: View Here
