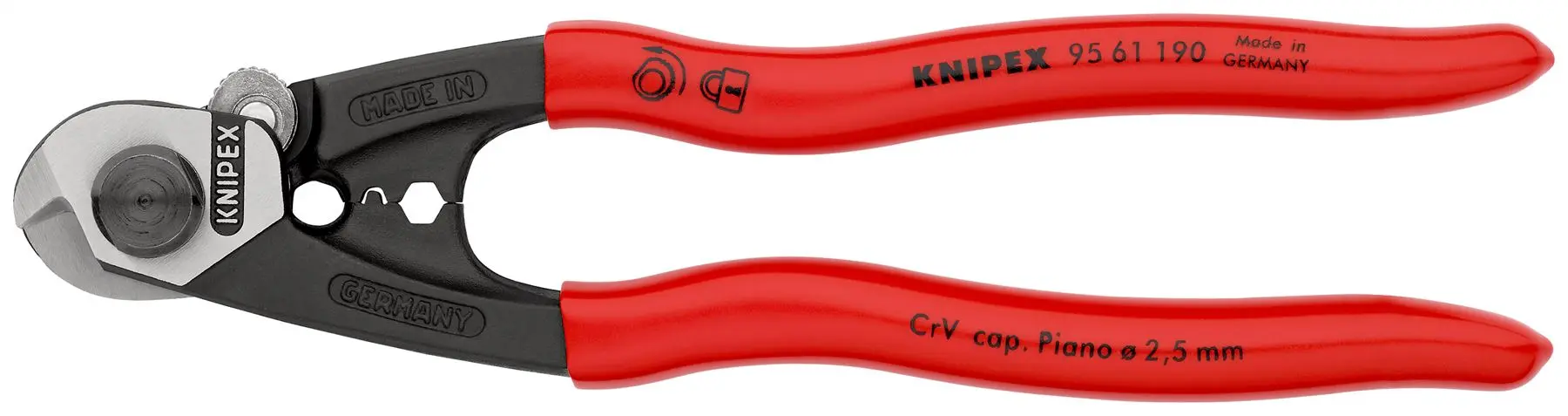

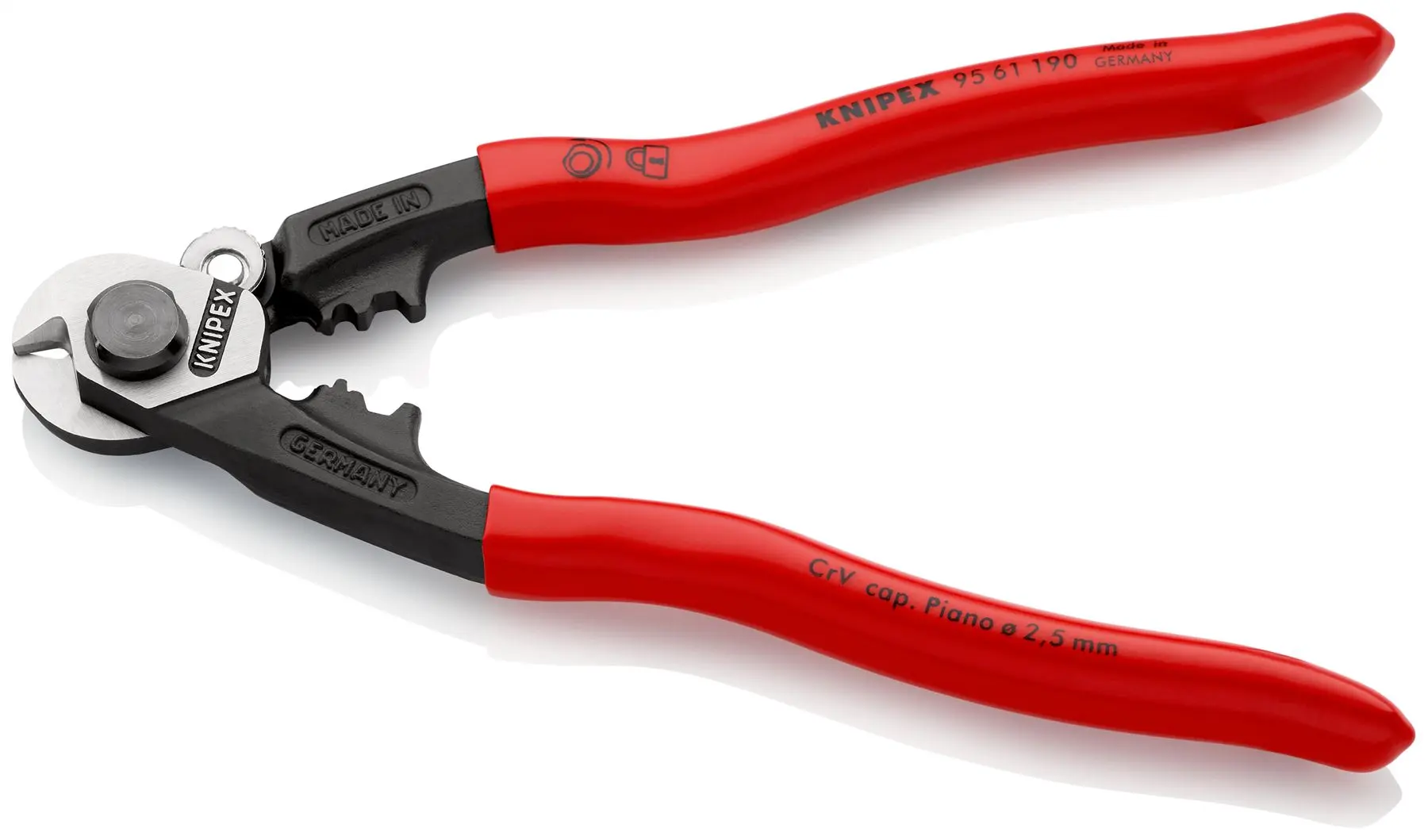

KNIPEX Wire Rope Cutter Forged 190mm Plastic Coated Handles 95 61 190 SB

KNIPEX Wire Rope Cutter Forged 190mm Plastic Coated Handles 95 61 190 SB

95 61 190 SB Wire Rope Cutter

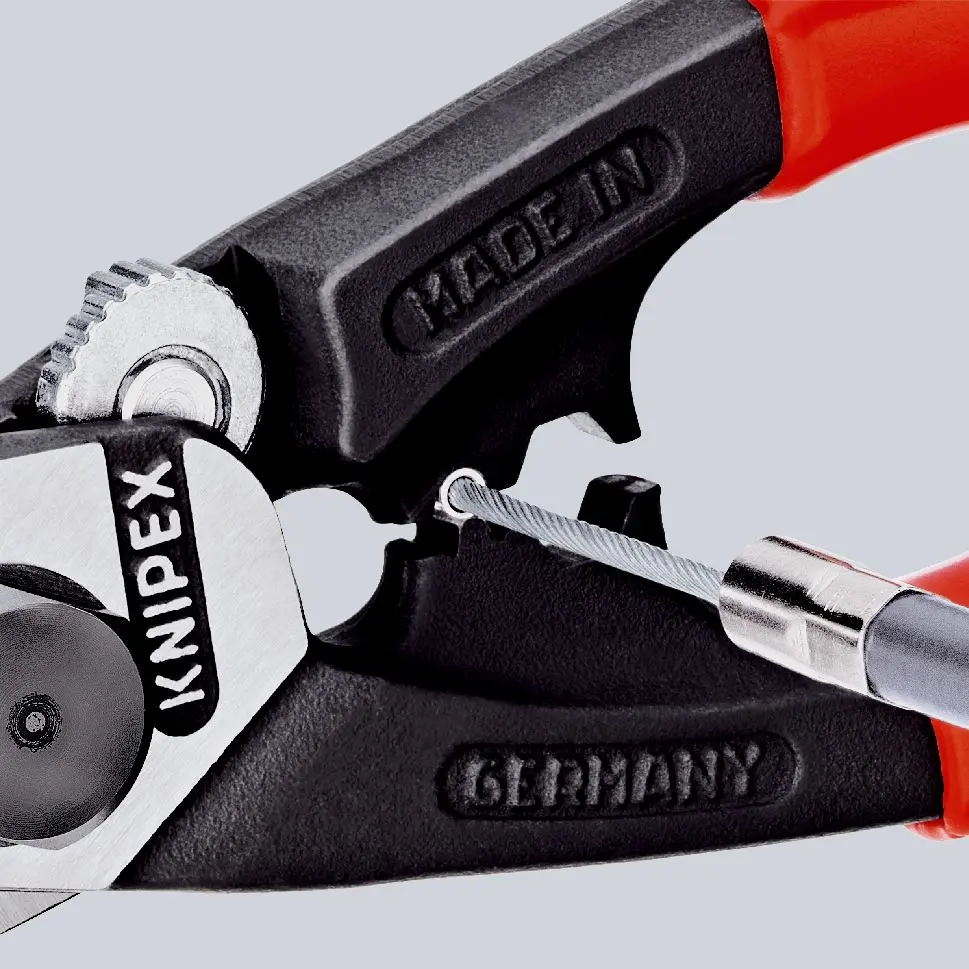

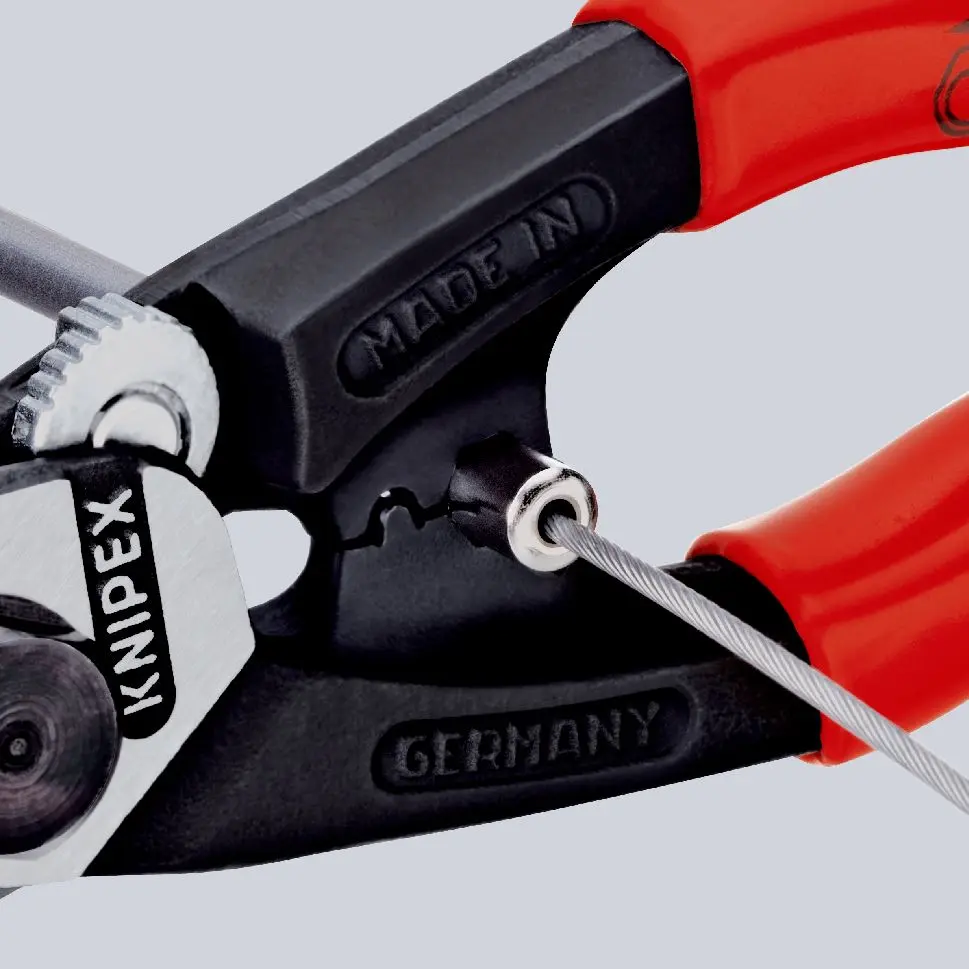

With two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables. Comfortable work thanks to handy, slim design and internal opening spring. Bolted joint for precise blade guidance, re-adjustable. High leverage for reduced effort. Cutting edge hardness approx. 64 HRC. self-service card/blister.

Cutting capacity copper cable, multiple-stranded: 10 mm²

Cutting capacity copper cable, multiple-stranded (diameter): Ø 7.0 mm

Cutting capacity copper cable, fine-stranded (diameter): Ø 6.0 mm

Cutting capacities wire rope (diameter): Ø 5.0 mm

Cutting capacities medium hard wire (diameter): Ø 4.0 mm

Cutting capacities piano wire (diameter): Ø 2.5 mm

Cutting capacites iron (diameter): Ø 4 mm

AWG: 8

Technical Information:

• bolted joint for precise blade guidance, re-adjustable
• comfortable work thanks to handy, slim design and internal opening spring
• cutting edge hardness approx. 64 HRC
• high leverage for reduced effort
• with two crimping dies for end caps on Bowden cable sheaths and end ferrules for traction cables

Downloadable Files:

• Data Sheet: View Here
