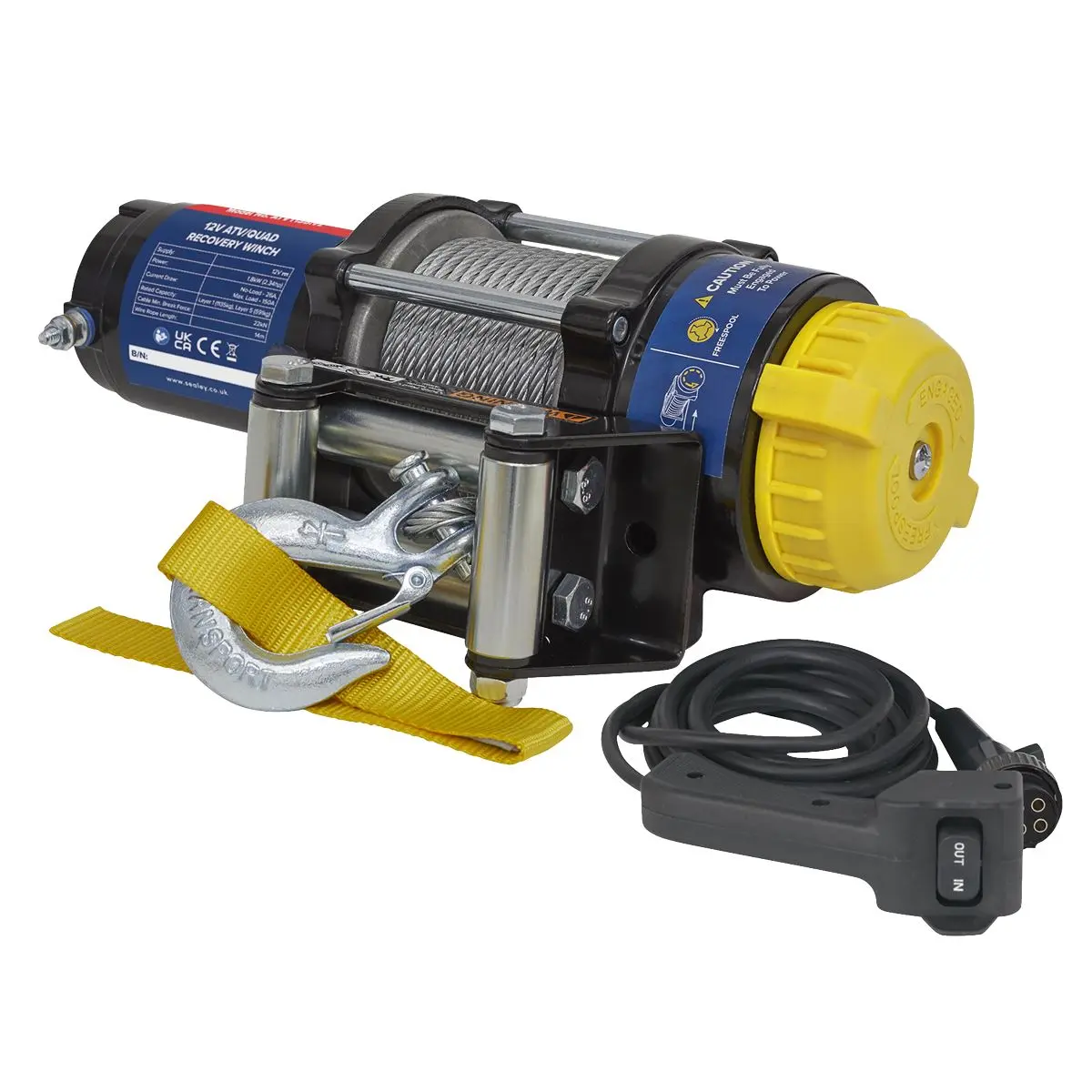

Sealey ATV/Quad Recovery Winch 1135kg (2500lb) Line Pull 12V

Sealey ATV/Quad Recovery Winch 1135kg (2500lb) Line Pull 12V

Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability.

Designed and built with the toughest jobs in mind.

High power 1.8kW (2.34hp) 12V DC permanent magnet type motor gives first class pulling power.

Heavy-duty all-weather housing.

3-Stage planetary gears.

Patented unique automatic spring brake, reliable in full load operation.

Sliding ring gear clutch

High quality wire rope feeds through 4-way roller fairlead.

IP67 rated motor and gearbox.

Gear Ratio: 180:1.

Specification:

• Model No ATV1135
• Brand: Sealey
• Cable Minimum Brake Force: 22kN
• Consumable Parts: ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135
• Current Draw: No-Load - 26A, Maximum Load - 150A
• Gear Ratio: 180:1
• Line Pull*: 1135kg(2500lb)
• Line Speed*: No-Load - 4.8m/min, Maximum Load - 1.6m/min
• Motor Power: 1.8kW(2.34hp)
• Nett Weight: 11.8kg
• Note: *Performance quoted at first layer of cable on drum
• Rated Capacity: Layer 1: 1135kg, Layer 5: 591kg
• Supply: 12V
• Wire Rope Diameter: 4.8mm
• Wire Rope Length: 14m

Product Guarantee: 1 Year
Catalogue Page: Page 1458

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
