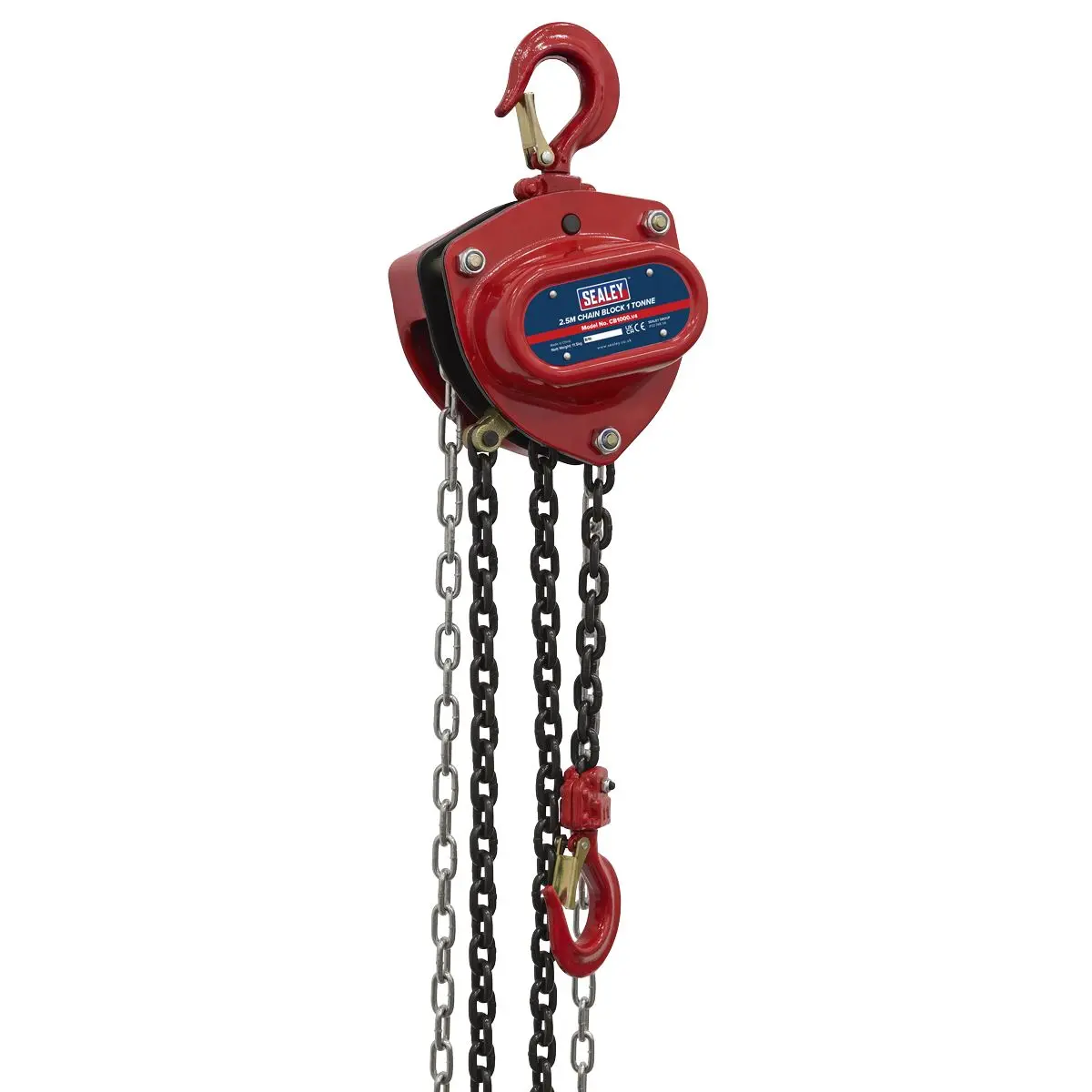

Sealey 2.5m Chain Block 1 Tonne
HEAVY-DUTY GEARING - Fitted with heat treated and ground, triple-spur geared shaft and pinion.
LOAD BRAKE - Also includes mechanical load brake for extra safety.
HARDENED CHAINS - All chains are manufactured from hardened alloy material

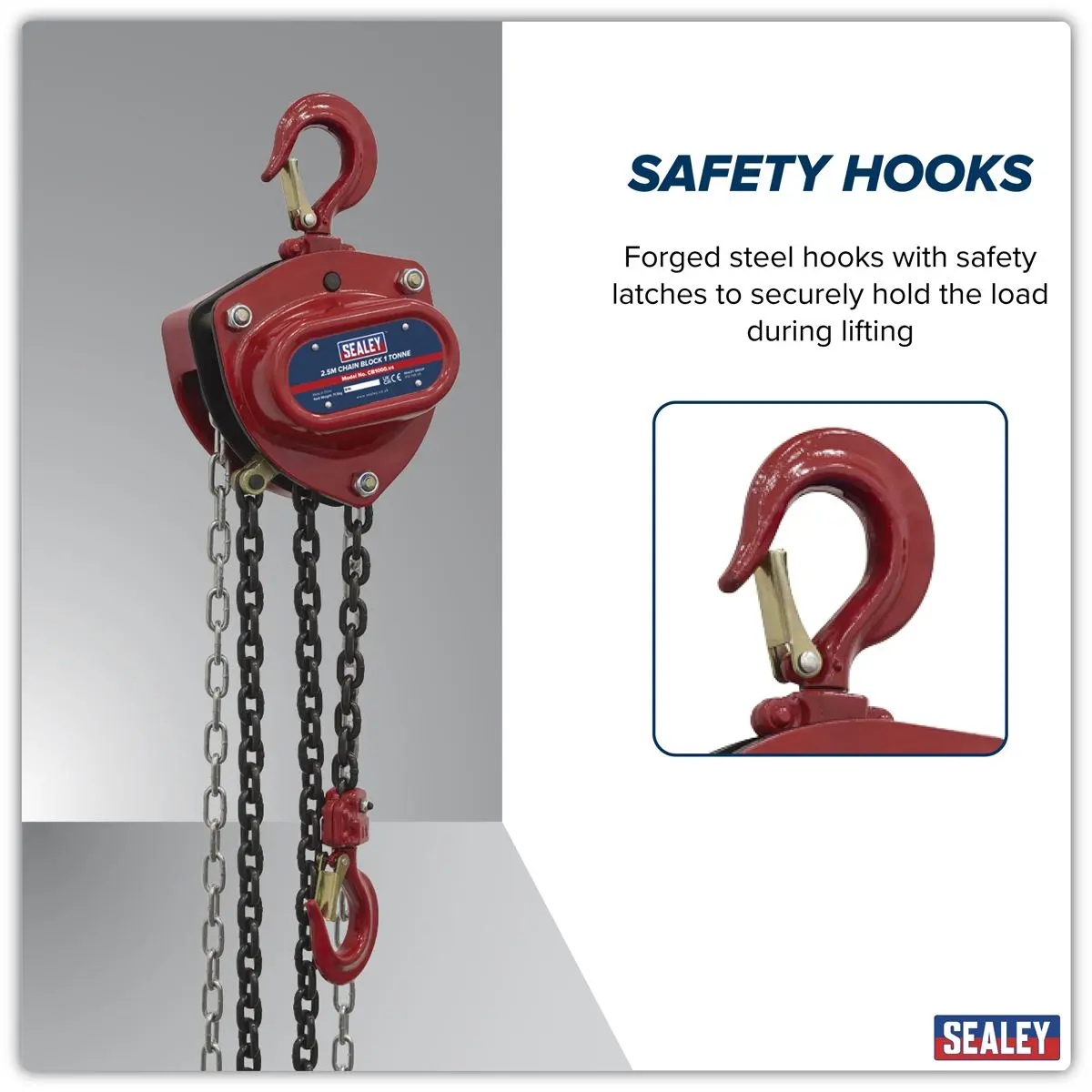

SAFETY HOOKS - Load hooks feature safety latches.
REDUCED SIZE GEAR HOUSING - Compact gear housing allows use where headroom is limited.

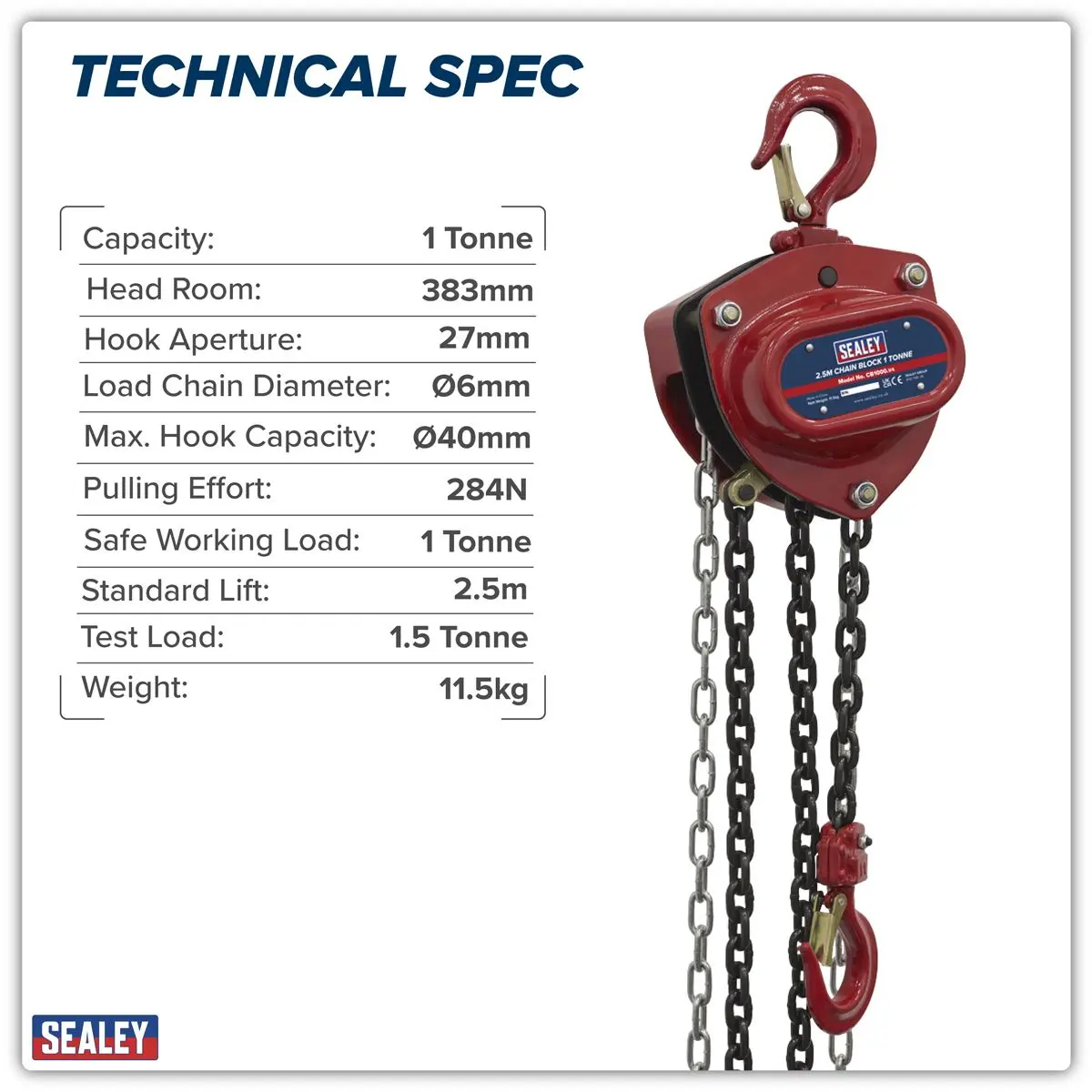

Specification:
- Model No CB1000
- Brand: Sealey
- Capacity: 1000kg
- Head Room: 383mm
- Hook Aperture: 27mm
- Load Chain Diameter: Ø6mm
- Maximum Hook Capacity Ø: 40mm
- Nett Weight: 11.5kg
- Pulling Effort: 284N
- Safe Working Load: 1000kg
- Size (W x D): N/A
- Standard Lift: 2.5m
- Test Load: 1500kg
Catalogue Page: Page 893
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Sealey 2.5m Chain Block 1 Tonne
HEAVY-DUTY GEARING - Fitted with heat treated and ground, triple-spur geared shaft and pinion.
LOAD BRAKE - Also includes mechanical load brake for extra safety.
HARDENED CHAINS - All chains are manufactured from hardened alloy material
SAFETY HOOKS - Load hooks feature safety latches.
REDUCED SIZE GEAR HOUSING - Compact gear housing allows use where headroom is limited.
Specification:
- Model No CB1000
- Brand: Sealey
- Capacity: 1000kg
- Head Room: 383mm
- Hook Aperture: 27mm
- Load Chain Diameter: Ø6mm
- Maximum Hook Capacity Ø: 40mm
- Nett Weight: 11.5kg
- Pulling Effort: 284N
- Safe Working Load: 1000kg
- Size (W x D): N/A
- Standard Lift: 2.5m
- Test Load: 1500kg
Catalogue Page: Page 893
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
