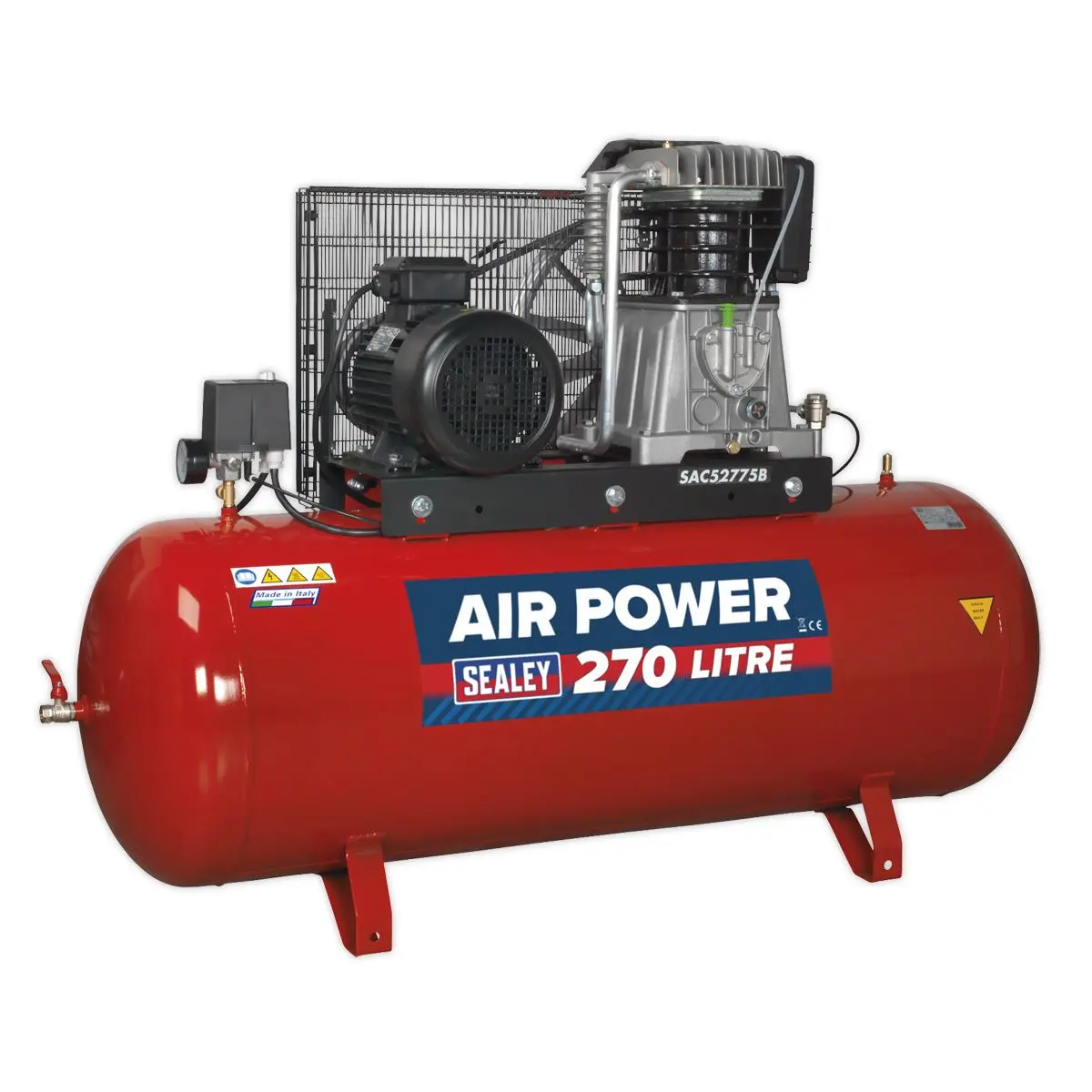

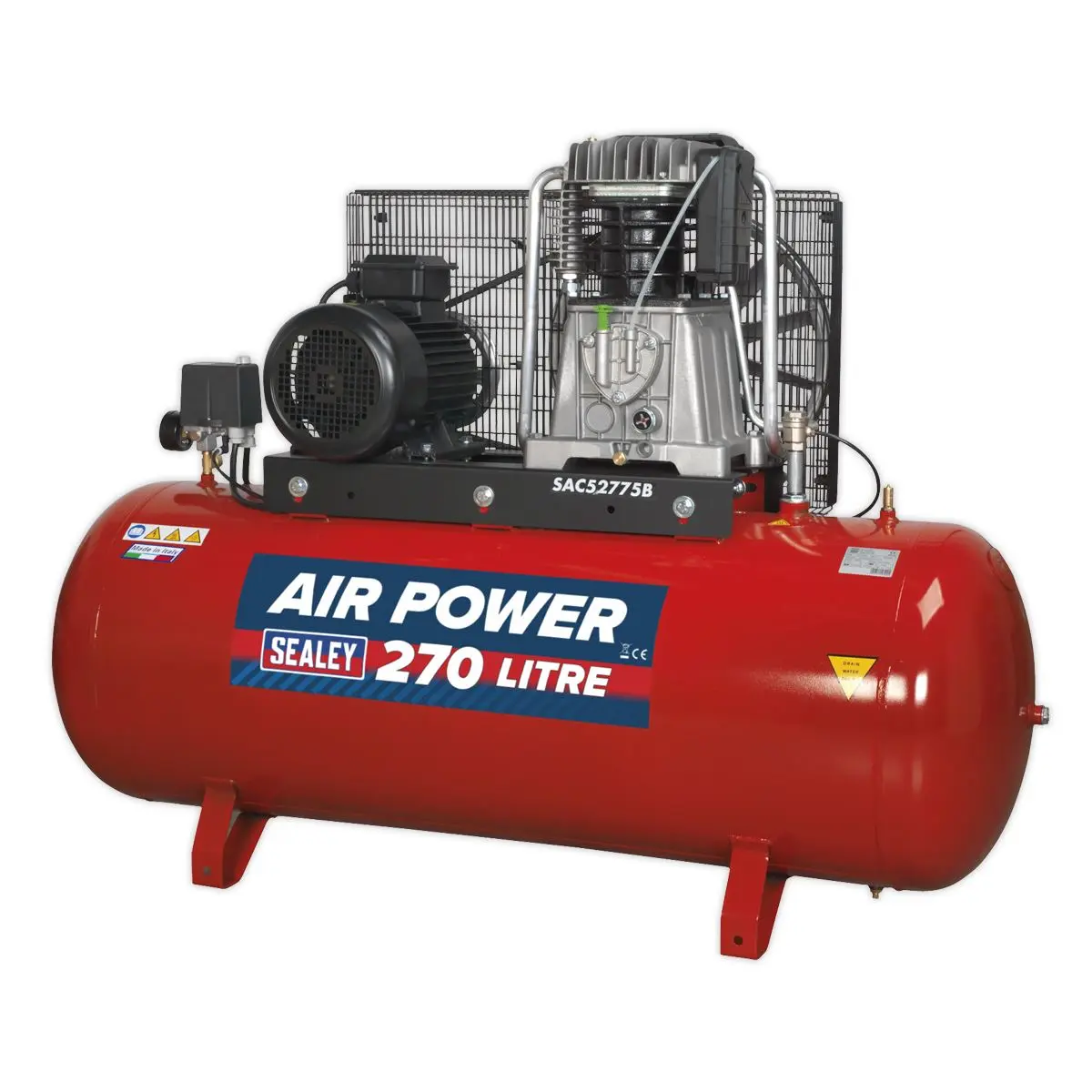

Sealey 270L Belt Drive Air Compressor with Cast Cylinders 7.5hp 3ph 2-Stage

Sealey 270L Belt Drive Air Compressor with Cast Cylinders 7.5hp 2-Stage

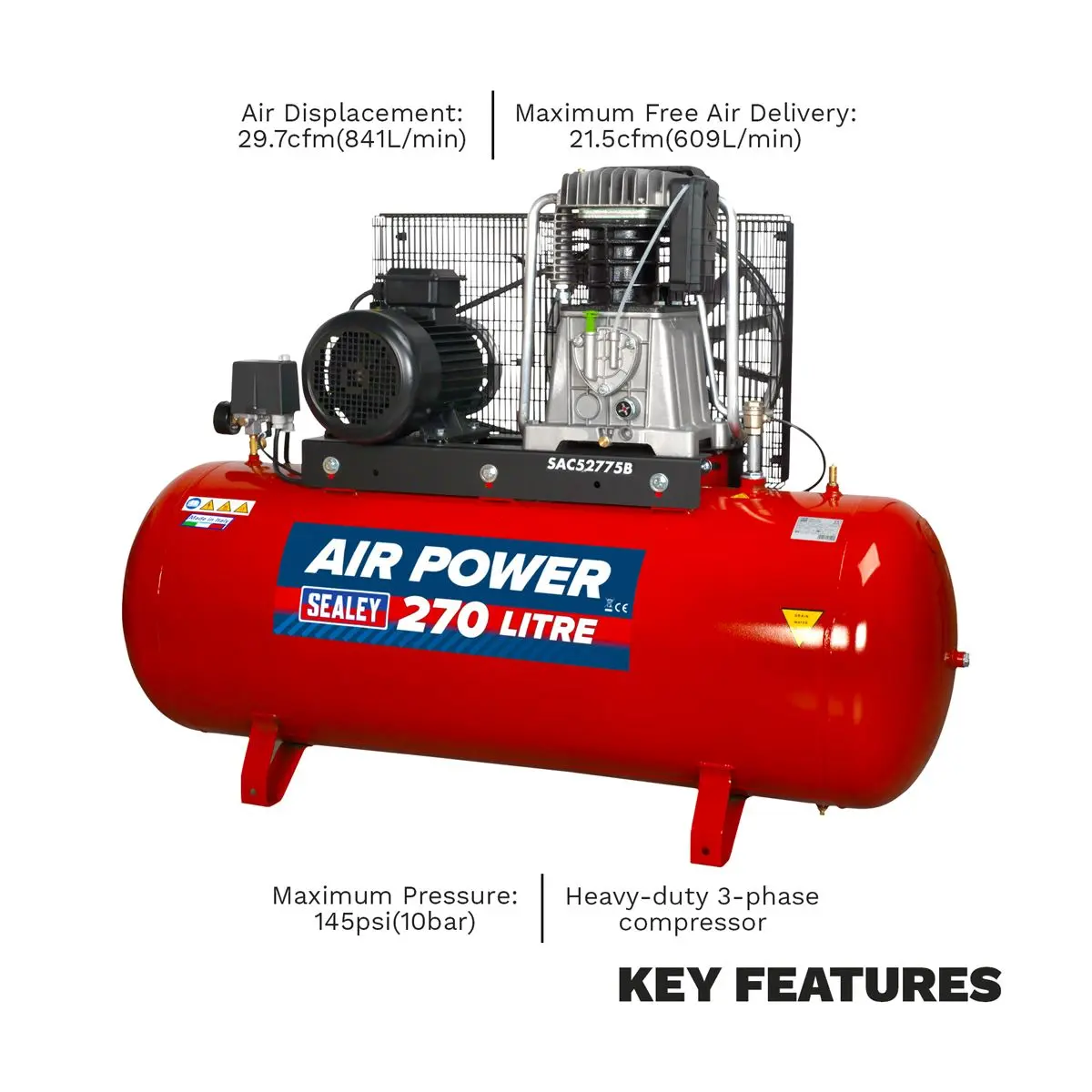

Air Displacement: 29.7cfm(841L/min).

Maximum Free Air Delivery: 21.5cfm(609L/min).

Maximum Pressure: 145psi(10bar).

Heavy-duty 3-phase compressor suitable for the professional workshop.

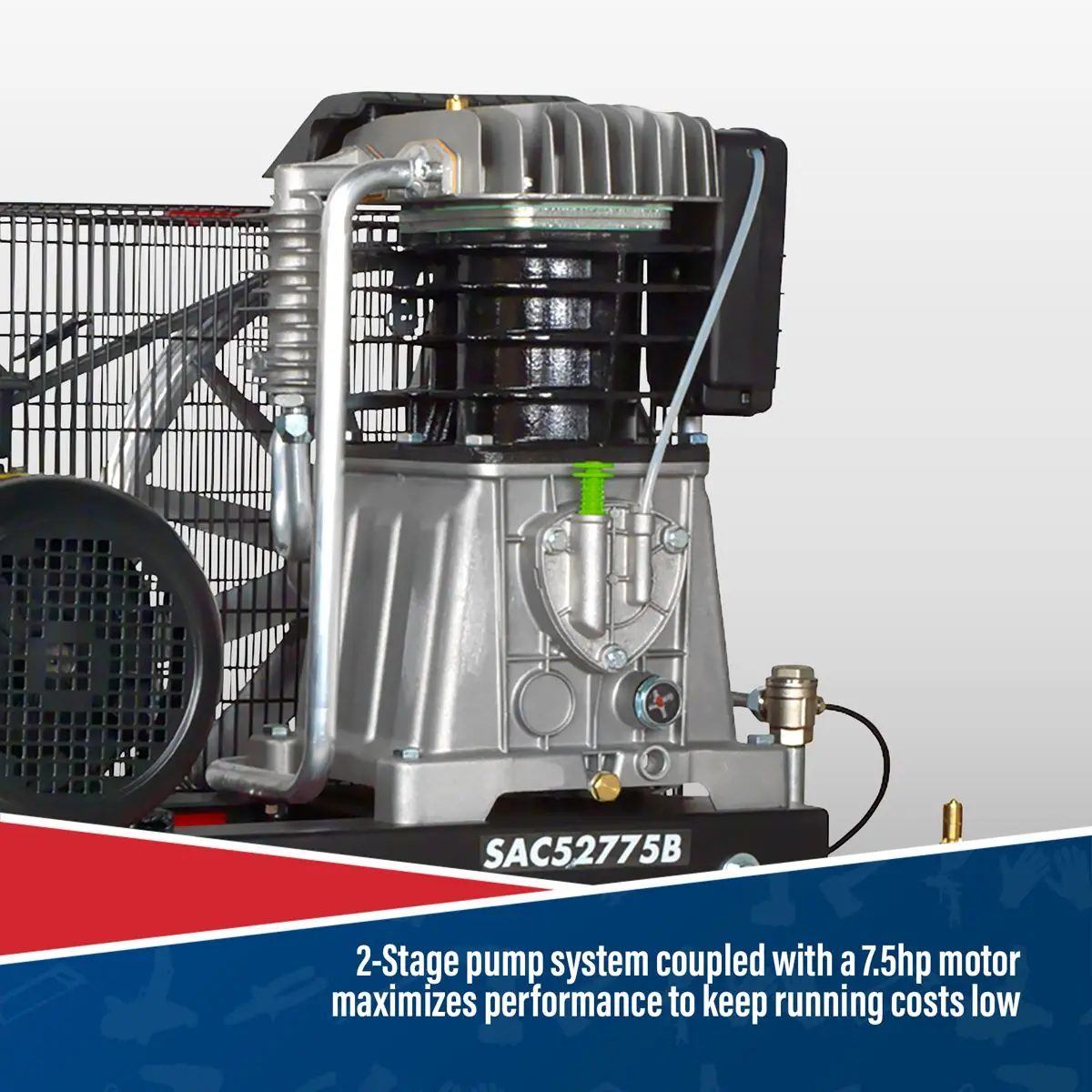

2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase model.

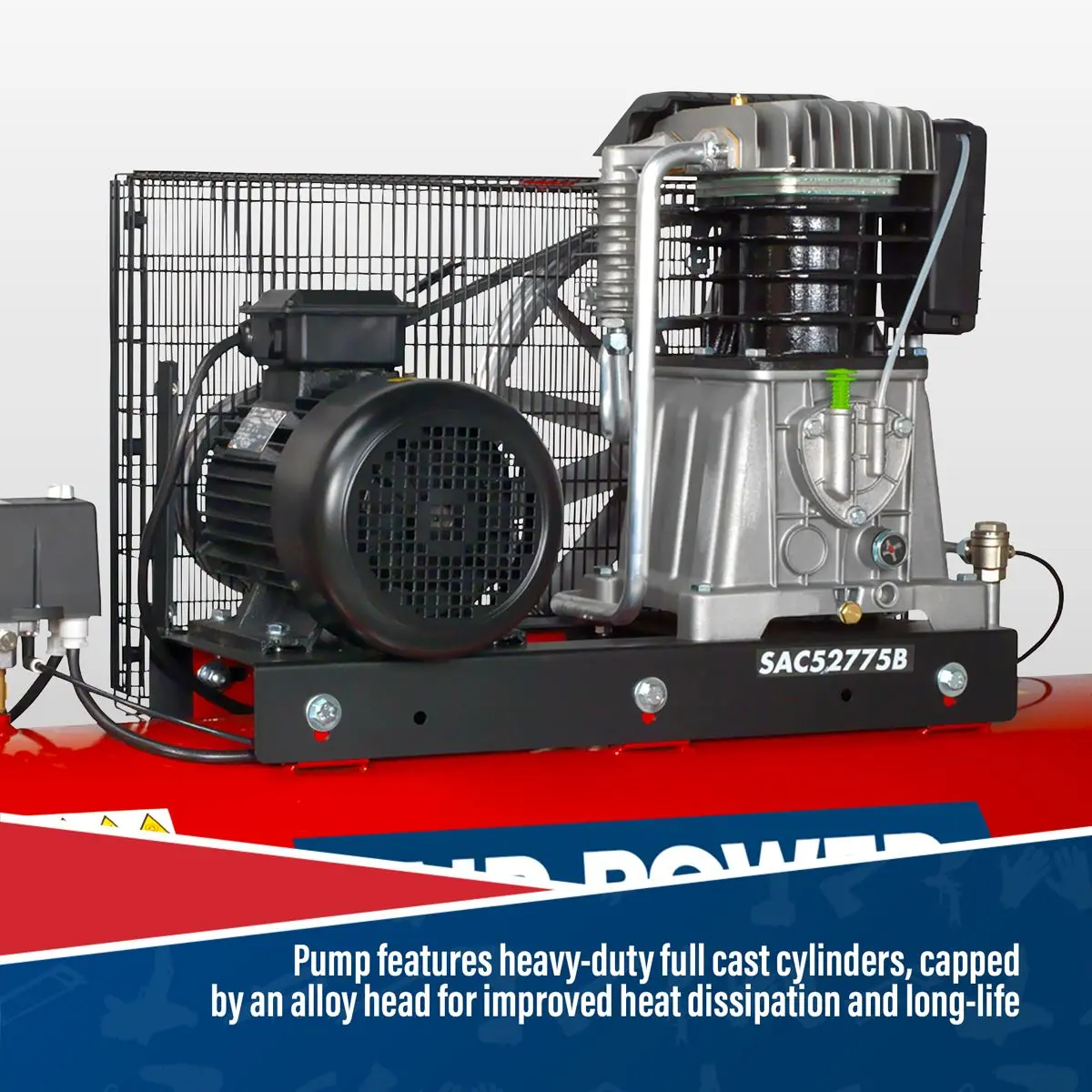

Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.

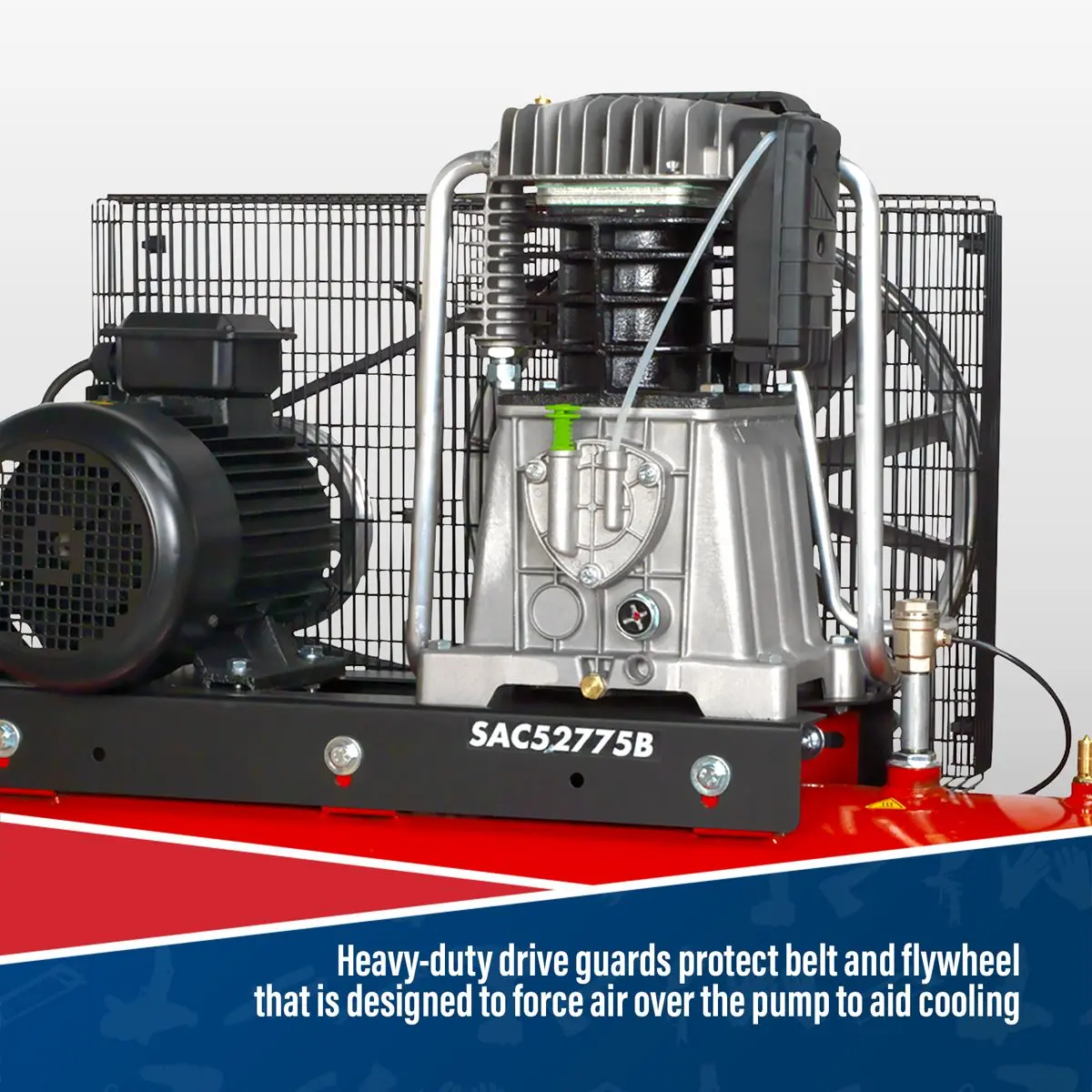

Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.

Supplied with full CE certification, test certificates and operating/maintenance manual.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No SAC52775B
• Air Displacement cfm(L/min): 29.7(841)
• Brand: Sealey
• Maximum Free Air Delivery cfm(L/min): 21.5(609)
• Maximum Pressure: 145psi(10bar)
• Minimum Rated Supply: 32A
• Motor Output: 7.5hp
• Nett Weight: 143kg
• Oil Capacity: 1.57L
• Outlet: 1/2"BSP Female Tap
• Phase: 3ph
• Receiver Capacity: 270L
• Size (W x D x H): 1550 x 510 x 1070mm
• Speed: 1280rpm
• Supply: 400V/32A

Product Guarantee: 1 Year
Catalogue Page: Page 1182

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
