Sealey Citroen, Peugeot, Fiat - Diesel Injector Puller

Sealey Diesel Injector Puller for Citroen, Peugeot, Fiat

Comprehensive set for removing Citroen/Peugeot/Fiat 2.0/2.2HDi 16v fuel injectors.

Allows the removal of seized injectors without the need to remove the cylinder head.

Bridge fits perfectly on the cylinder head preventing damage to the area surrounding the injector.

Supplied in storage case.

Specification:

• Model No VS2005
• Application(s):
• Citroen 2.0HDi: C4 (04-13), C4 Picasso/Grand Picasso (06-13), DS4 (11-13), C5 (04-15), DS5 (12-15), C8 (02-10), Dispatch (99-12), Jumpy III (07-12)
• Citroen 2.2HDi: C5 (07-09), C6 (06-11), C8 (02-10), C-Crosser (07-12)
• Peugeot 2.0HDi: 307 (01-09), 308 (07-16), 3008 (02-15), 407 (04-12), 508 (11-16), 5008 (09-16), 607 (00-11), RCZ (10-15), Expert III (07-16)
• Peugeot 2.2HDi: 508 (11-15), 4007 (07-12), 607 (00-09), 807 (02-10)
• Fiat 2.0D Multijet: Scudo (07-13)
• Brand: Sealey

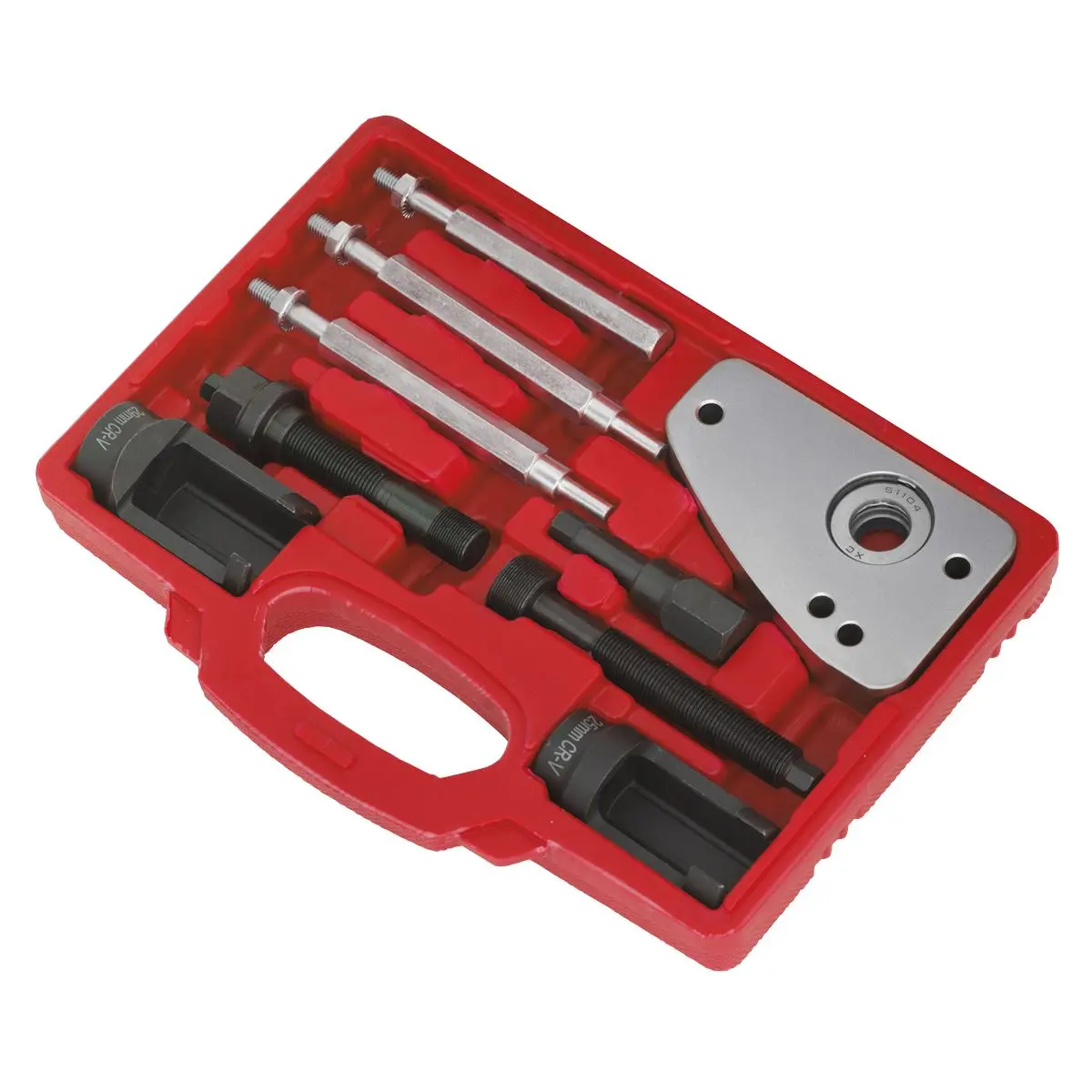

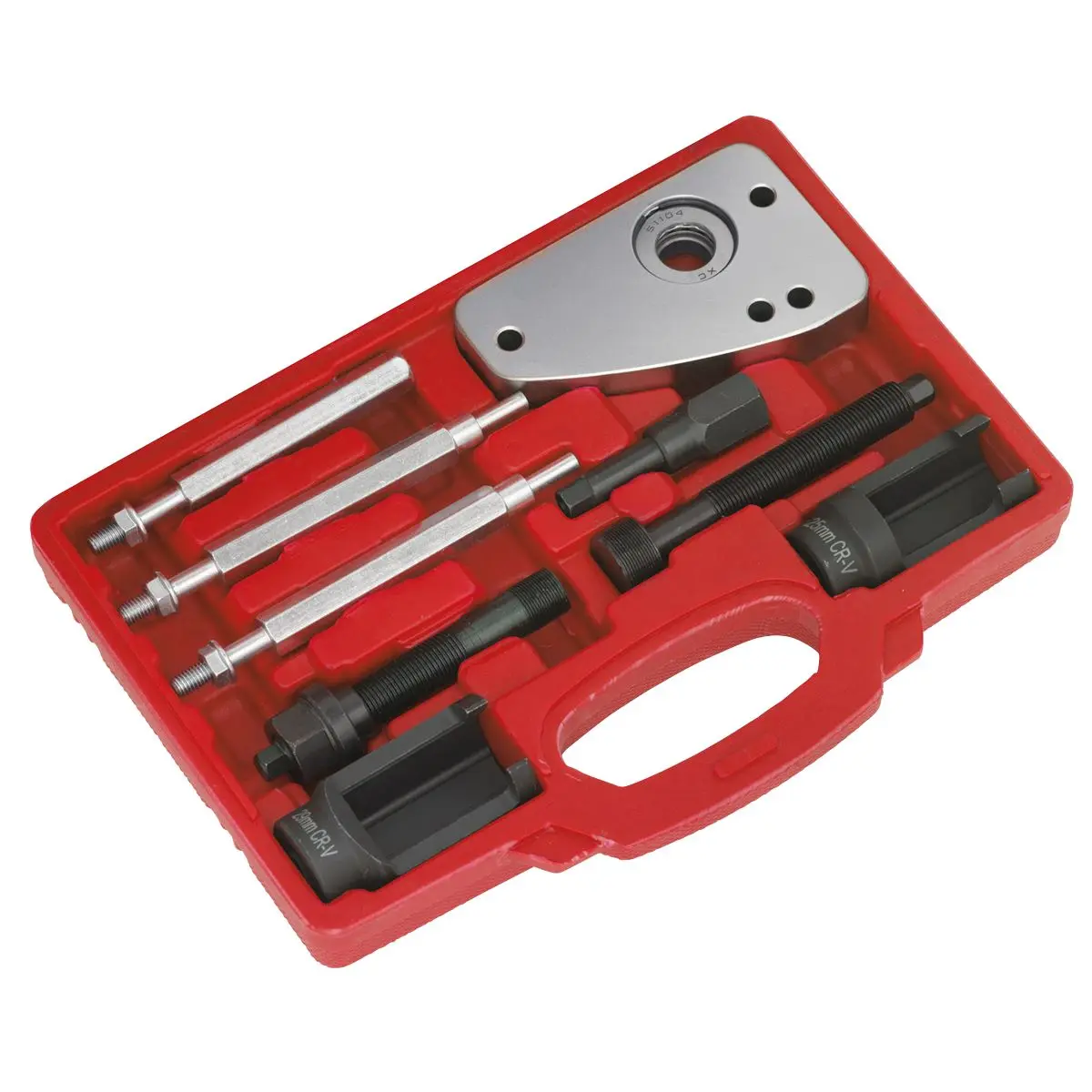

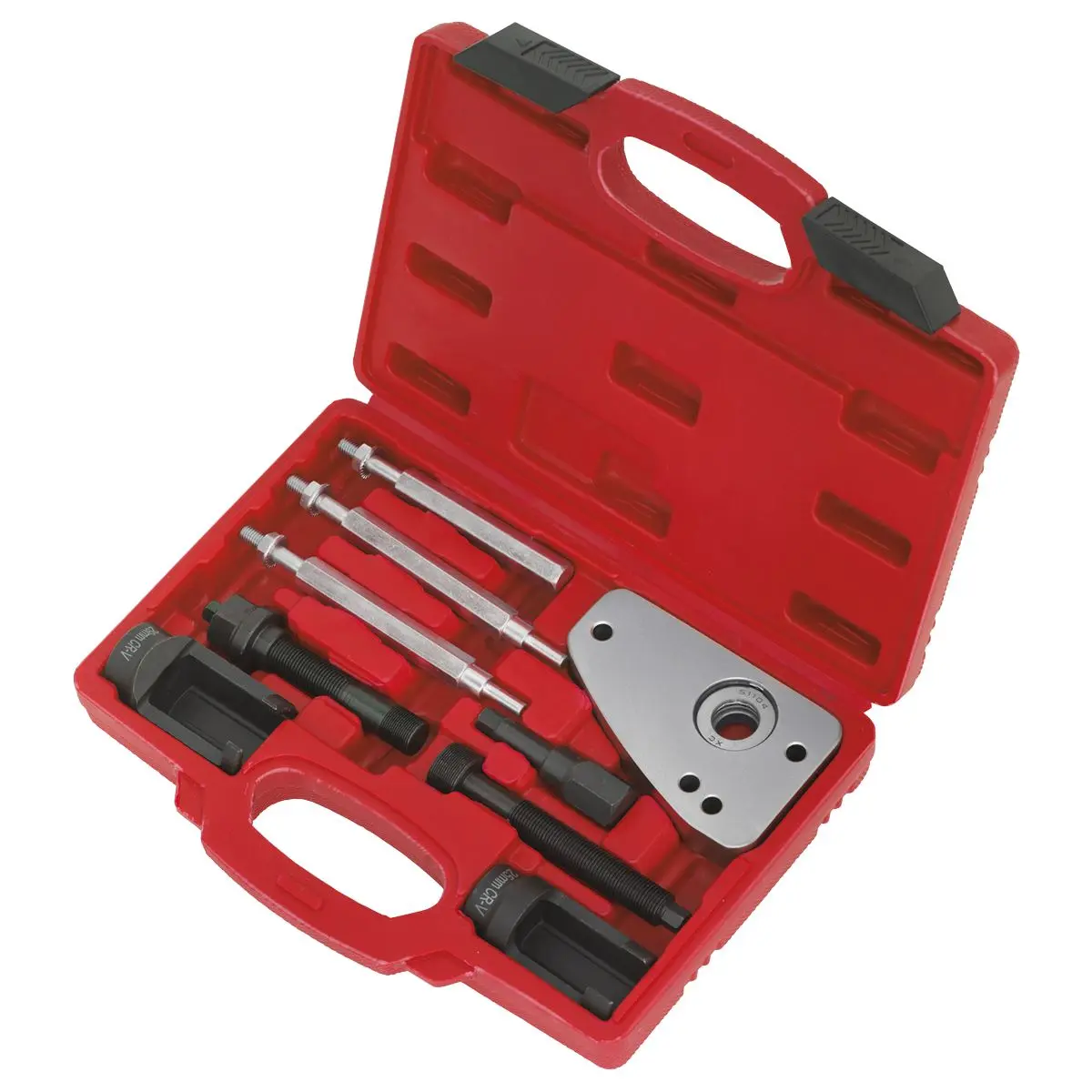

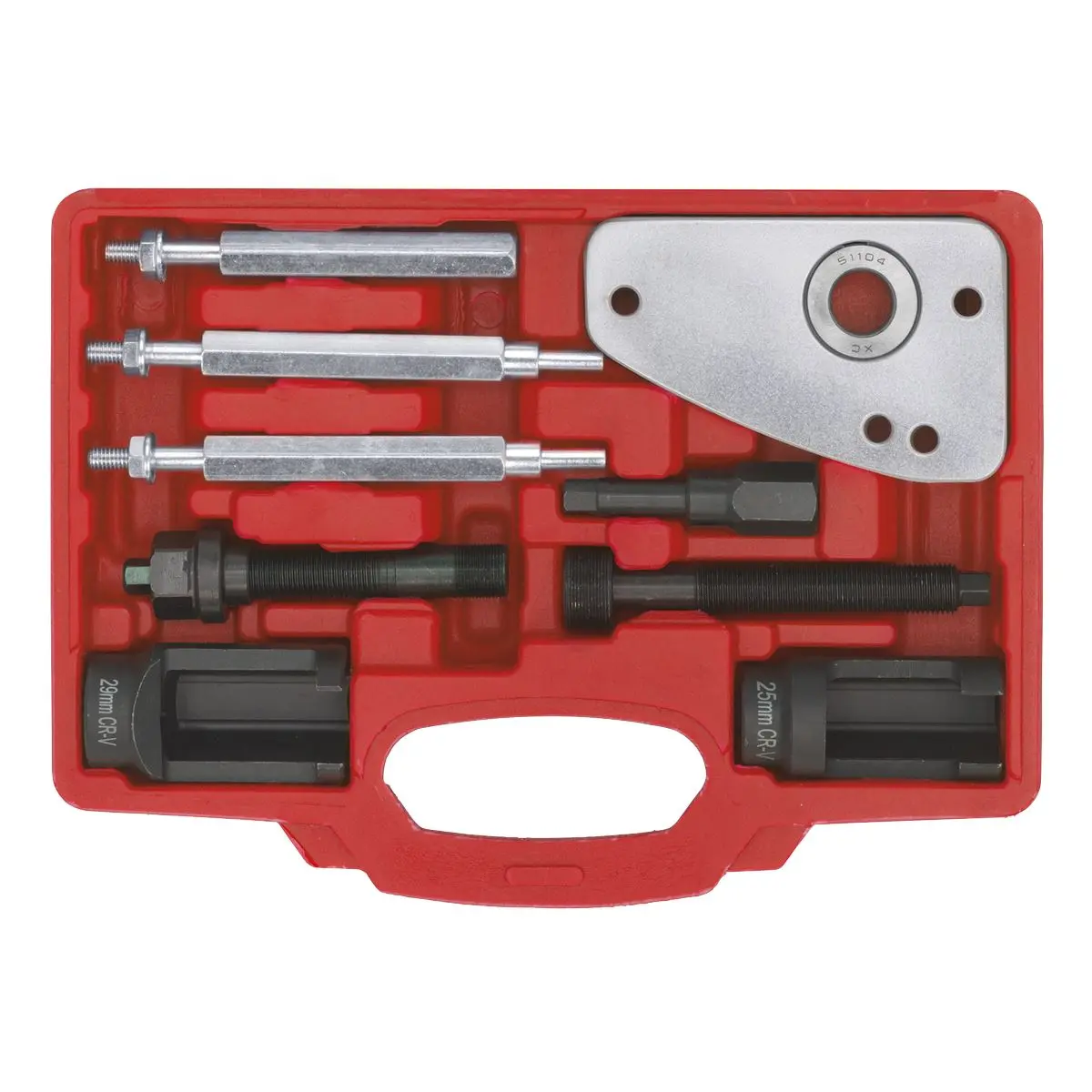

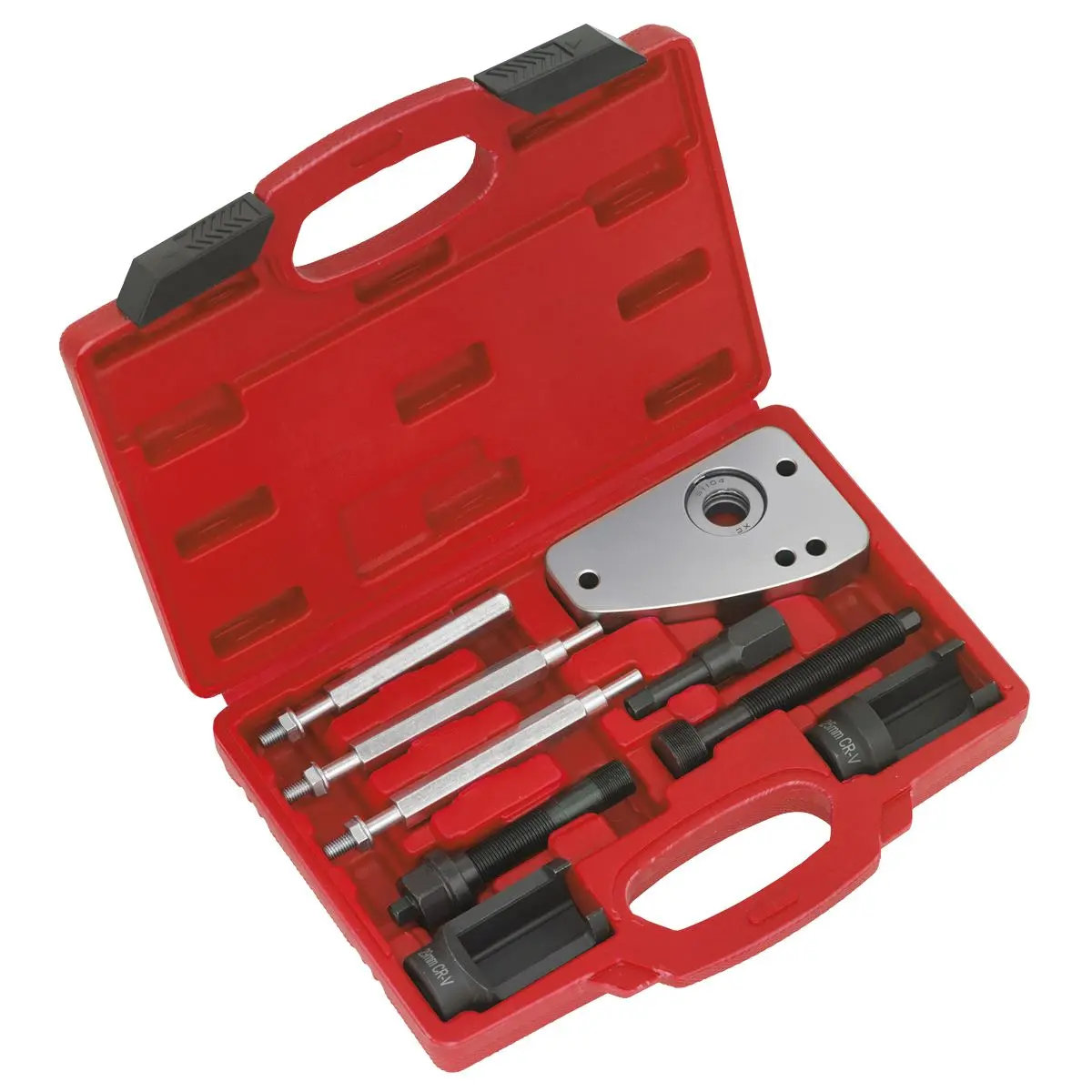

• Contents: Pulling Bridge, Bridge Leg (x3), 10mm Security Hex Key, Injector Cap Sockets; Ø25, Ø29mm, Injector Force Screw Threads; Ø17mm Male x 1mm Pitch, Ø25mm x 1mm Pitch, Injector Force Screw Nut
• Engine Code(s): DW10ATD (RHY), DW10ATED (RHS, RHW, RHZ), DW10ATED4/L4 (RHT), DW10ATED4 (RHM, RHW), DW10BTED/L3 (RHX, RHZ), DW10BTED (RHX), DW10BTED4 (RHF, RHJ, RHL, RHR), DW10C (RHD, RHH), DW10CD (AHZ), DW10CTED4 (RHC, RHD, RHE, RHH, RH02), DW10FD (AHX), DW10JATED4 (RHM, RHW), DW10JTED4 (RHW), DW10TD (RHY, RHZ), DW10UTD (RHV), DW10UTED4 (RHG, RHK), DW12ATED (4HX, 4HZ), DW12ATED4/L4 (4HW), DW12BTED4 (4HP, 4HR, 4HS, 4HT, 4HX), DW12CTED4 (4HL), DW12MTED4 (4HK, 4HN), DW12TED4 (4HX), DW12UTED (4HY)
• Nett Weight: 3.44kg

Product Guarantee: 1 Year
Catalogue Page: Page 371

Downloadable Files:

• Instructions: View Here
