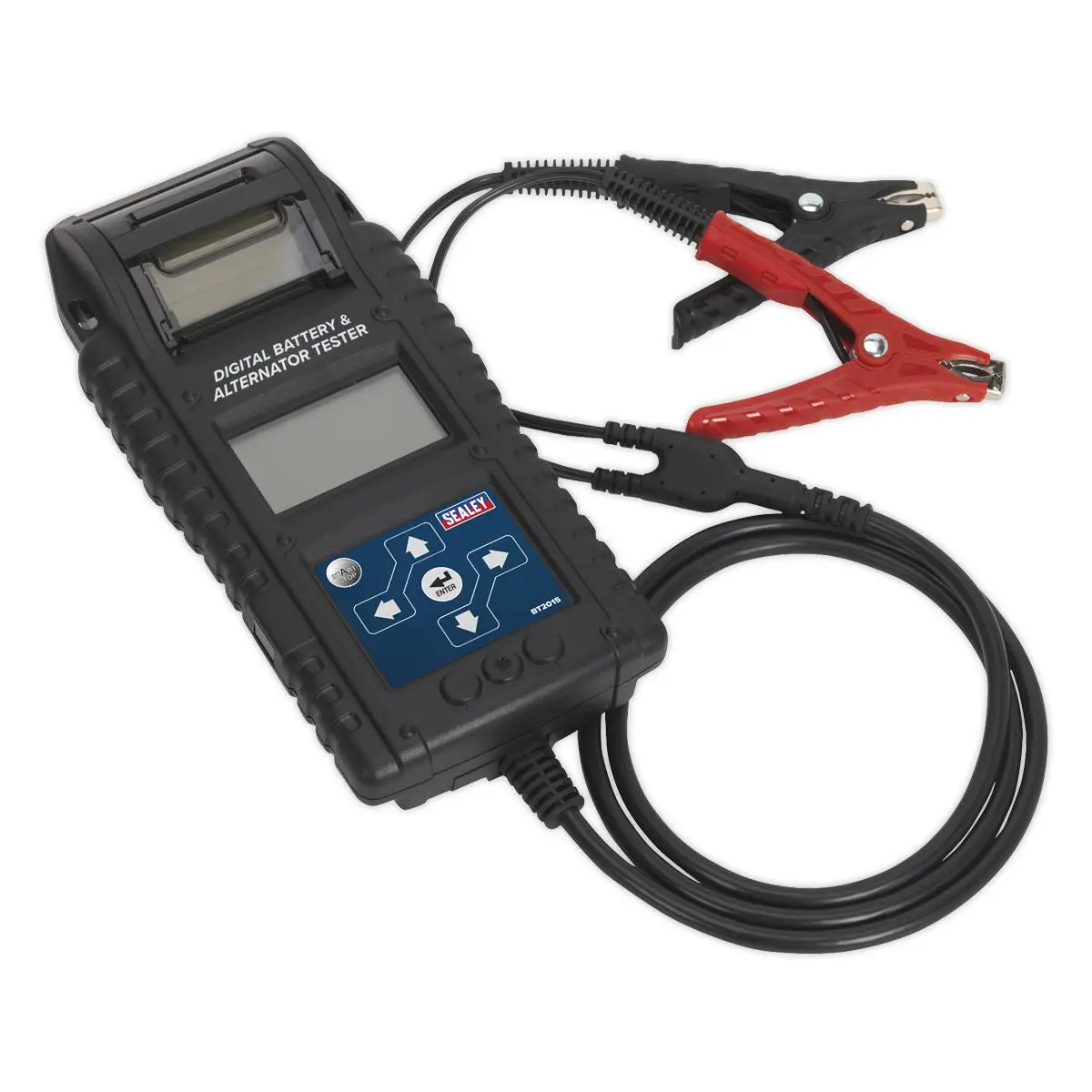

Sealey Digital Start/Stop Battery & Alternator Tester with Printer 6/12/24V

Sealey Digital Start/Stop Battery & Alternator Tester with Printer 6/12/24V

Professional diagnosis of battery and alternator faults with the added facility to print the results.

Tests batteries up to 3000 CCA* SAE with as little as 1.5V of residual charge.

No heat, no sparks and no misdiagnosis.

Checks condition of alternator, no complicated connections or interpretation required.

Analyse the charging system at rest and under load to determine condition of the alternator.

Suitable for use on motorcycles, cars (including start/stop), and commercial vehicles.

Connect and follow the prompts on the 4-line/16 character LCD screen for straightforward answers.

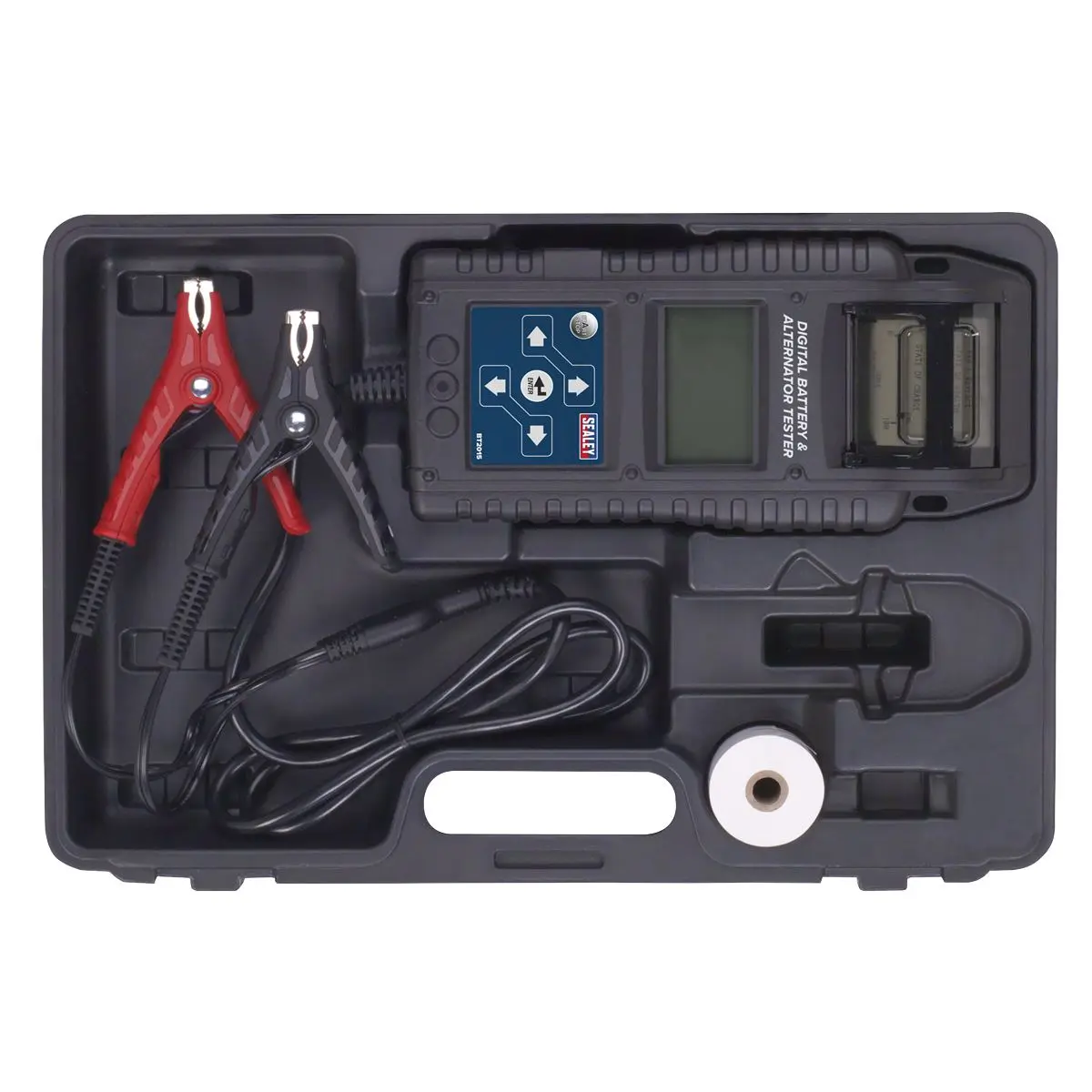

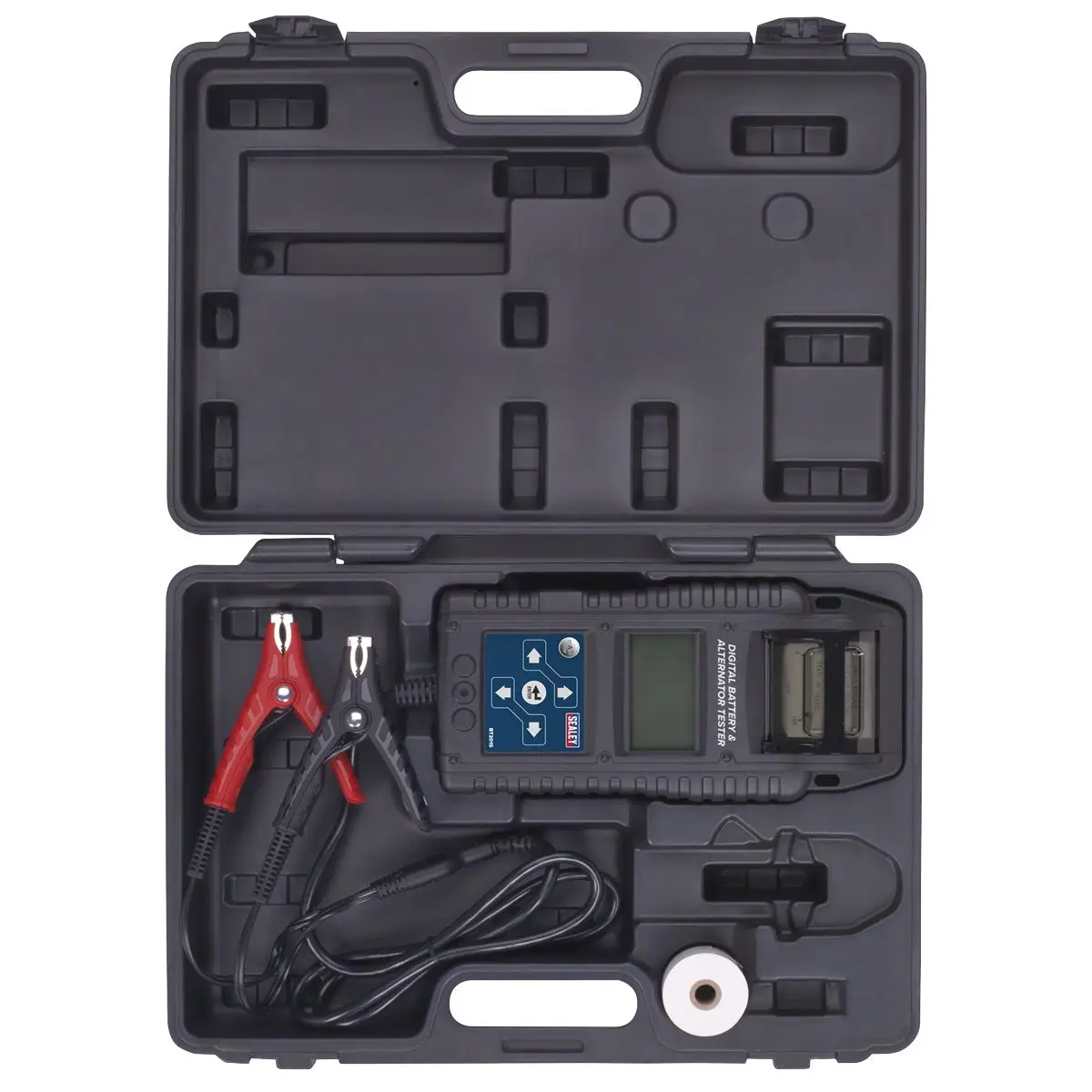

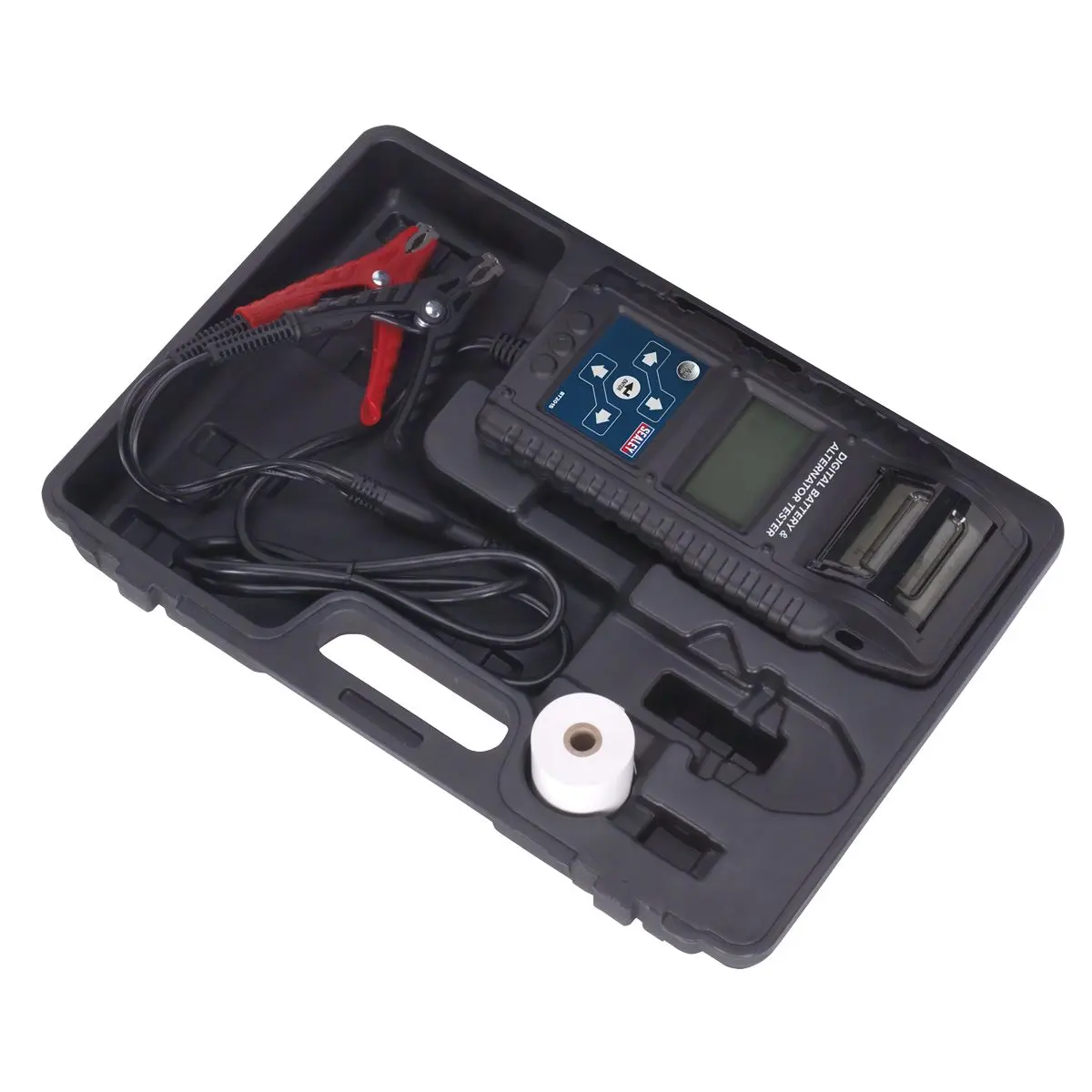

Supplied in storage case with two rolls of printing paper, PC software and instruction manual.

Specification:

• Model No BT2015
• Battery: 6 x AA (not included)
• Brand: Sealey
• Charging System Capability: 12/24V**
• Compatibility: Windows XP, 7, 8, 10
• Consumable Parts: BT2012.V2-01 - Printing Roll Pack of 2
• Minimum Power Requirement: 1.5V
• Nett Weight: 2.48kg
• Note: *CCA - Cold Cranking Amps, **24V Alternator Test only
• Rated Battery Voltage: 6/12V
• Rating Systems: DIN, EN, IEC, JIS, SAE
• Test Ranges: 40-2830 CCA* EN, 40-3000 CCA* SAE, 30-1985 CCA* IEC, 25-1685 CCA* DIN, By Battery Type JIS
• Voltage Range: 1.5-30V

Product Guarantee: 1 Year
Catalogue Page: Page 433

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
