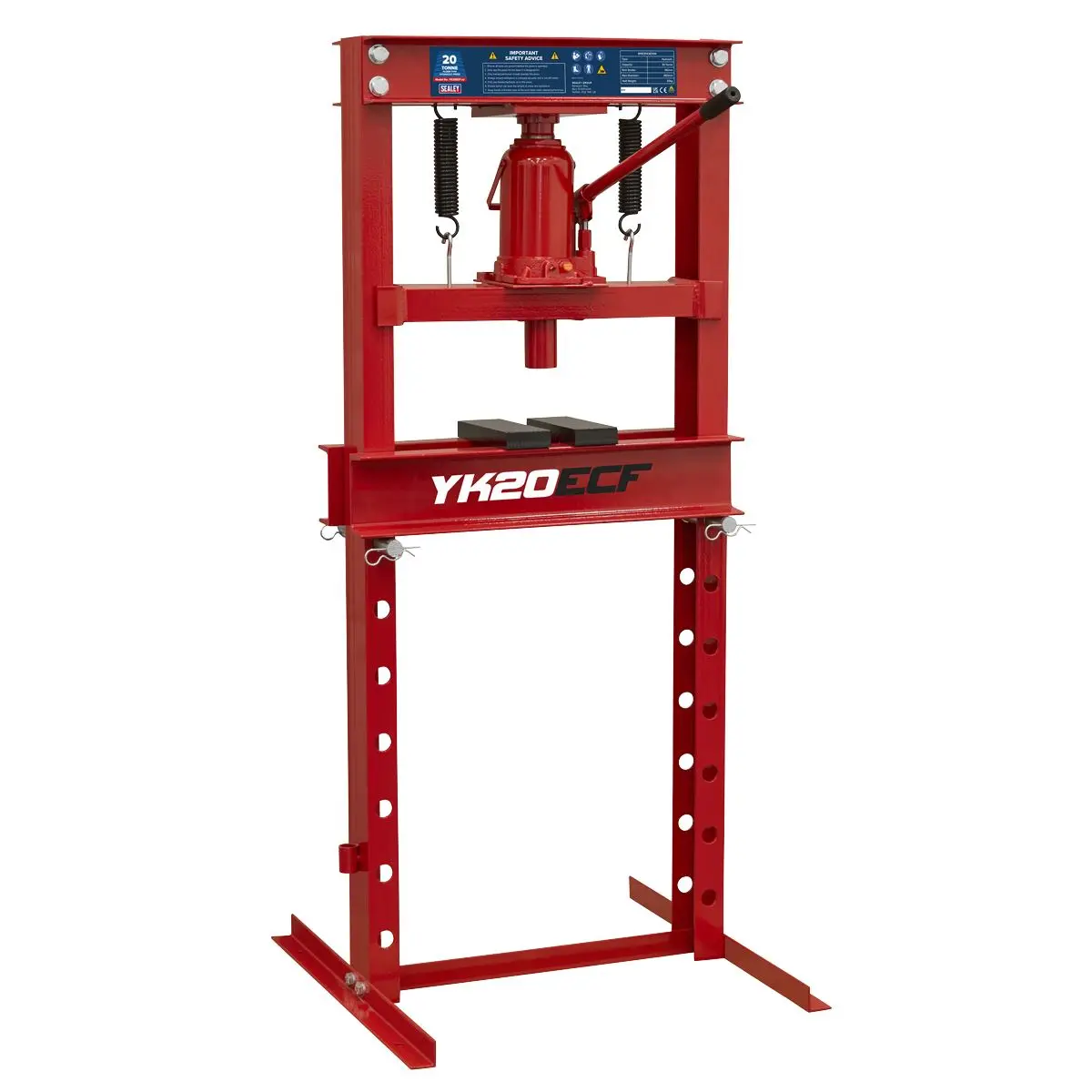

Sealey Hydraulic Floor Type Press 20 Tonne

Sealey Hydraulic Floor Type Press 20 Tonne

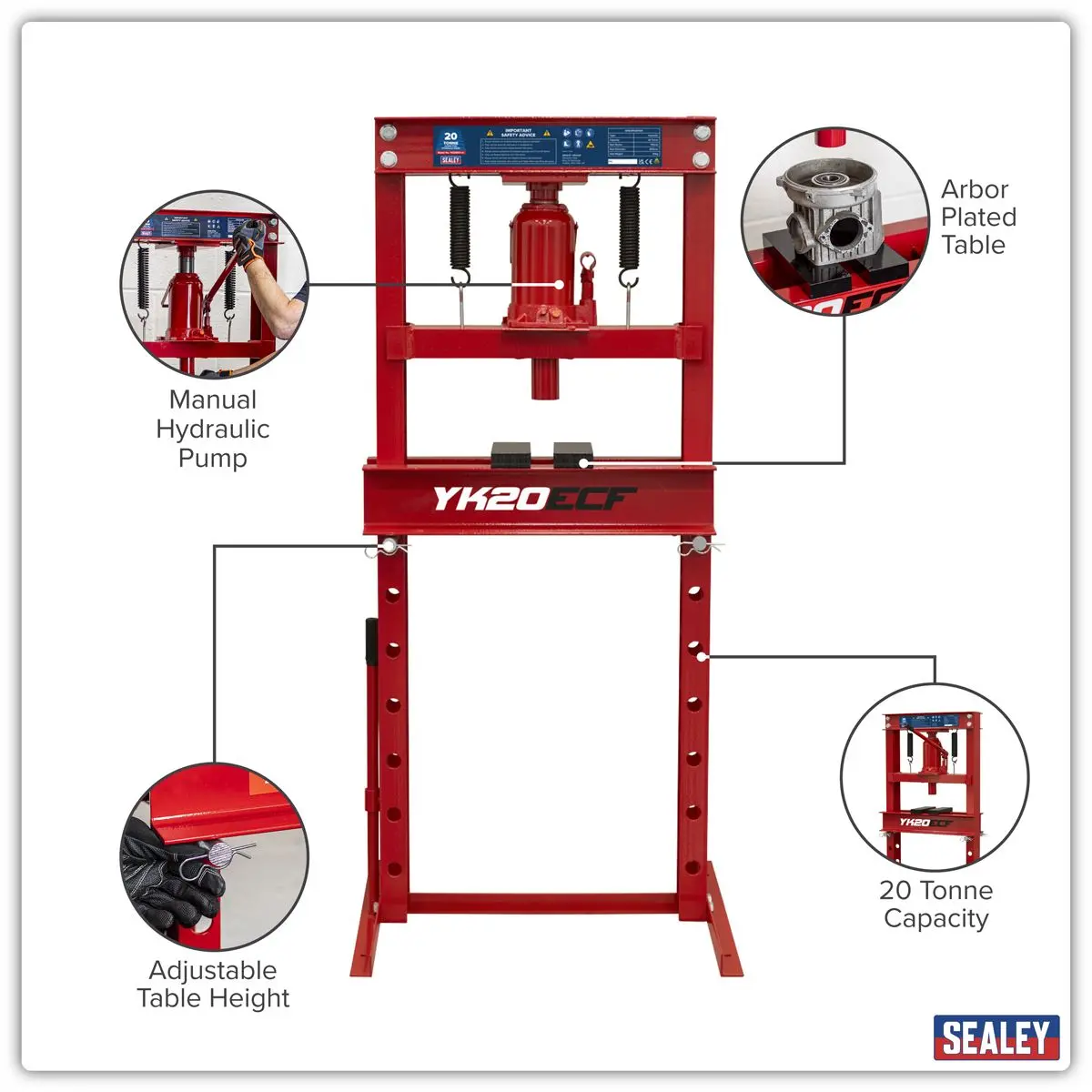

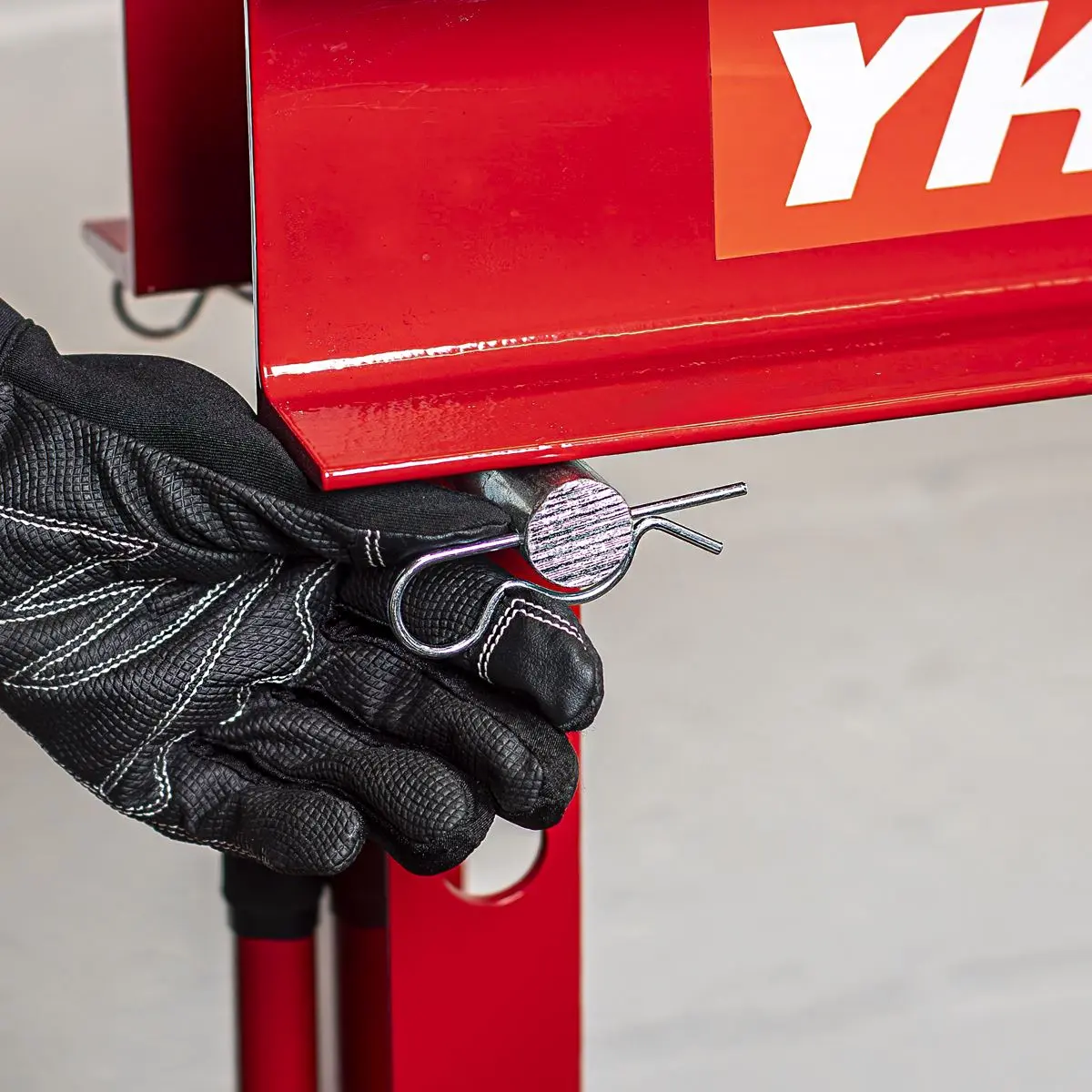

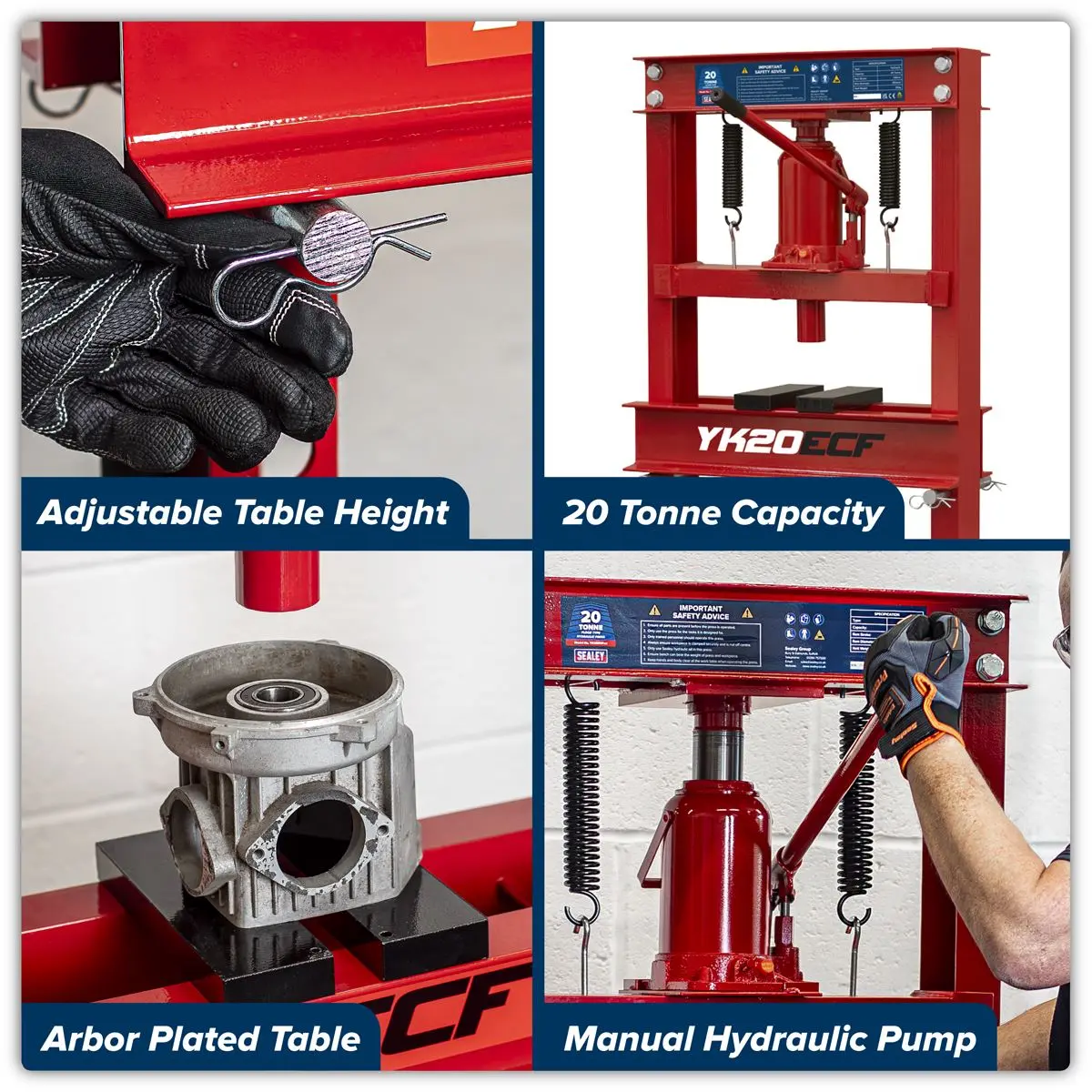

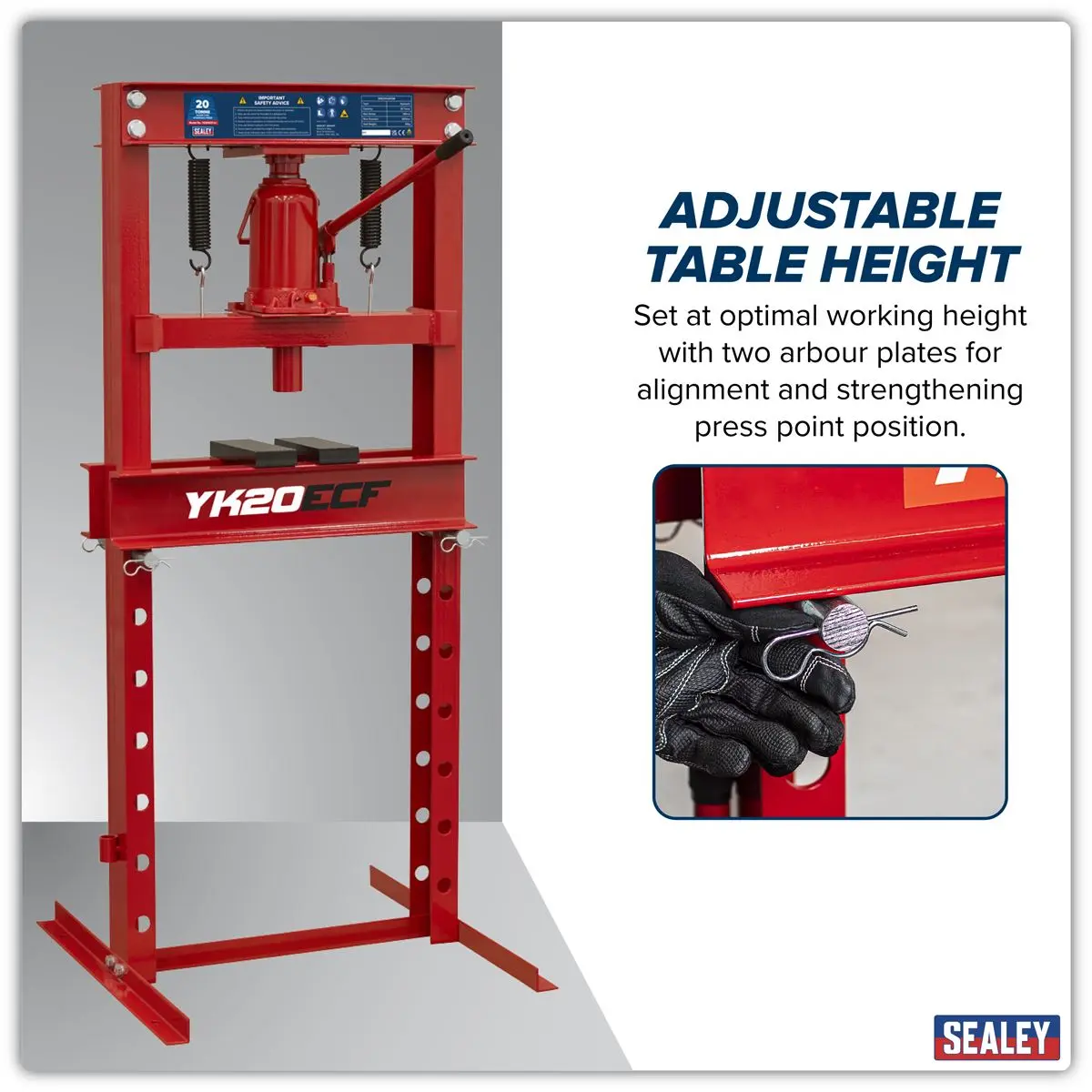

ADJUSTABLE TABLE - Simple relocation of two pins allows the table to be set at your optimum working height.

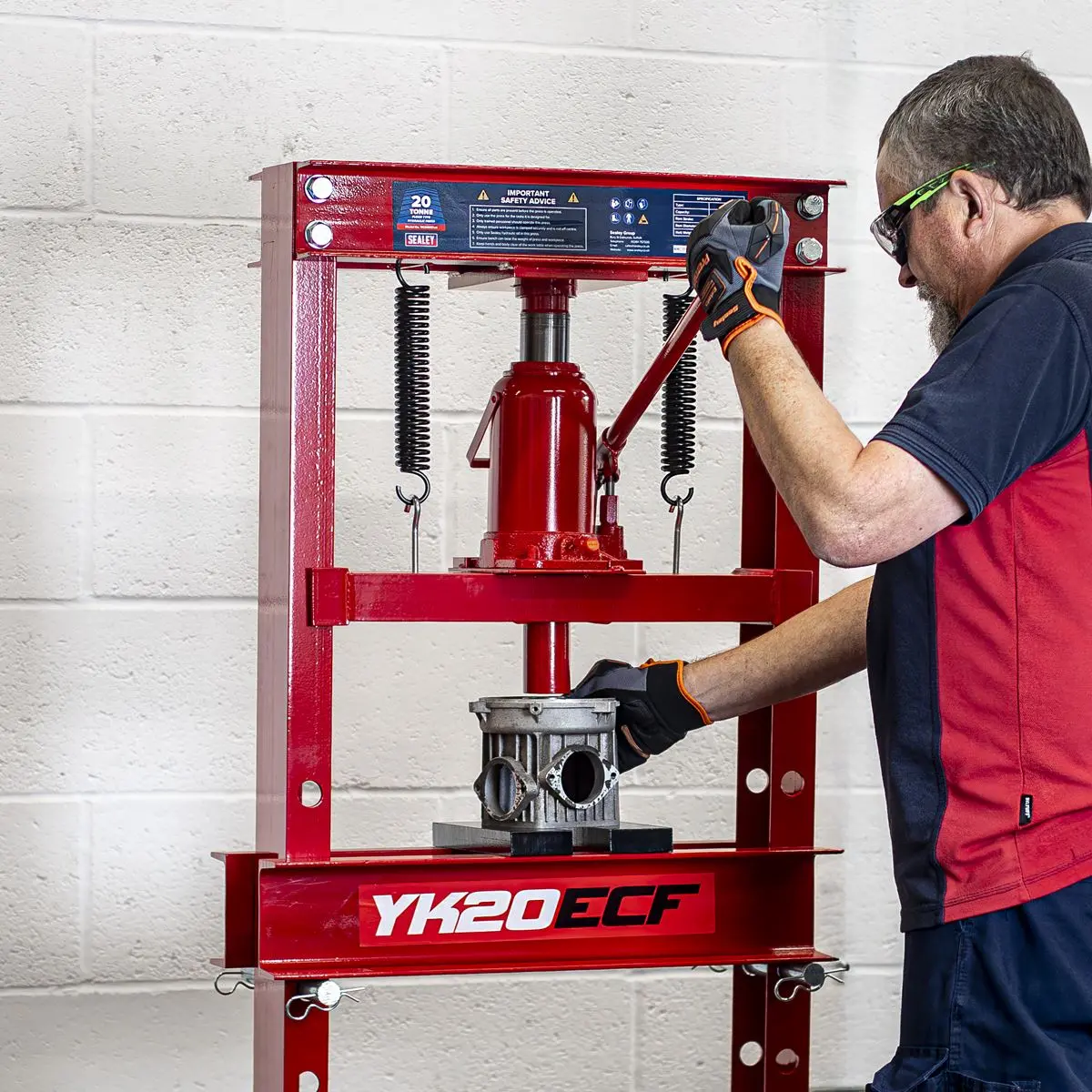

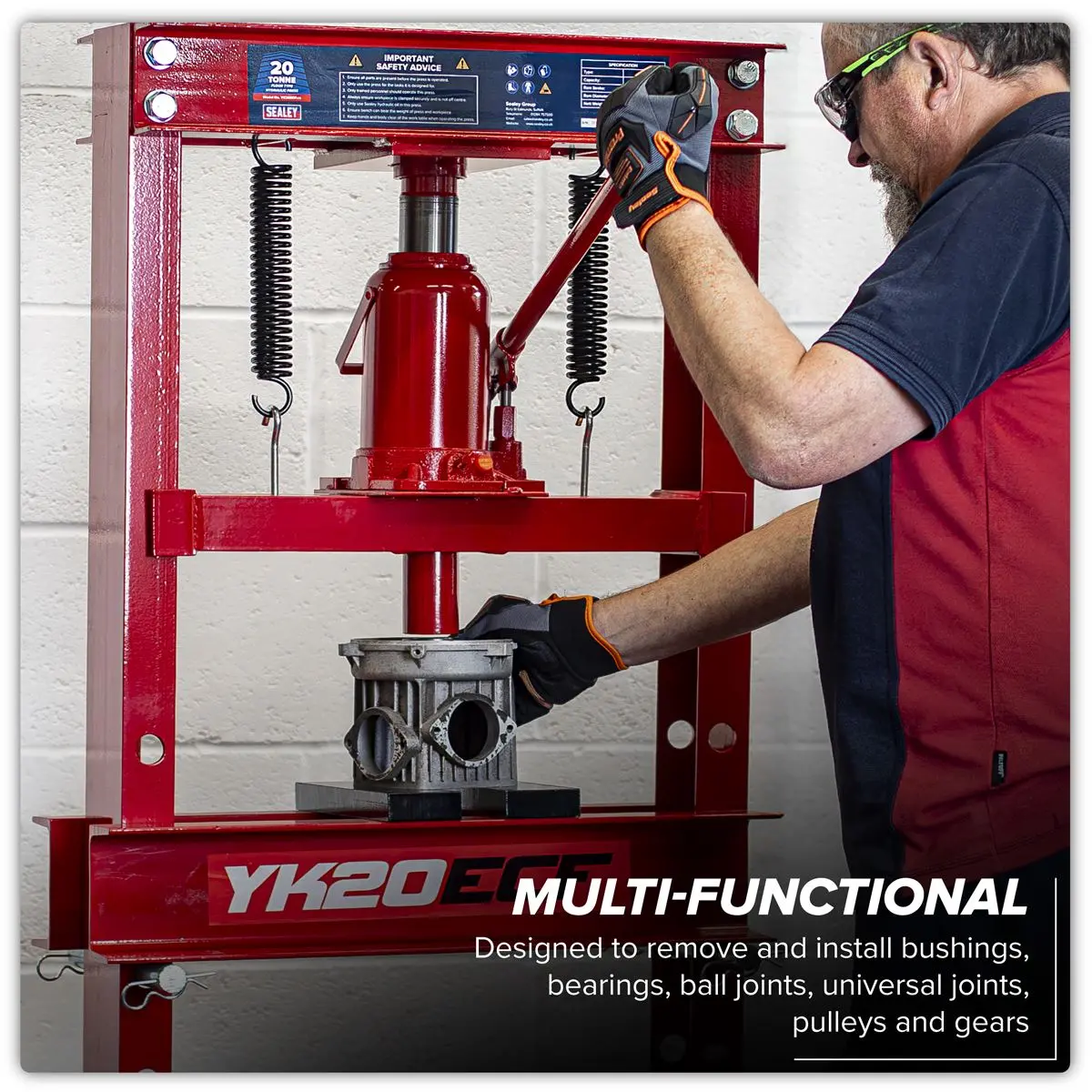

MULTI-FUNCTIONAL - Designed to remove and install bushings, bearings, ball joints, universal joints, pulleys and gears.

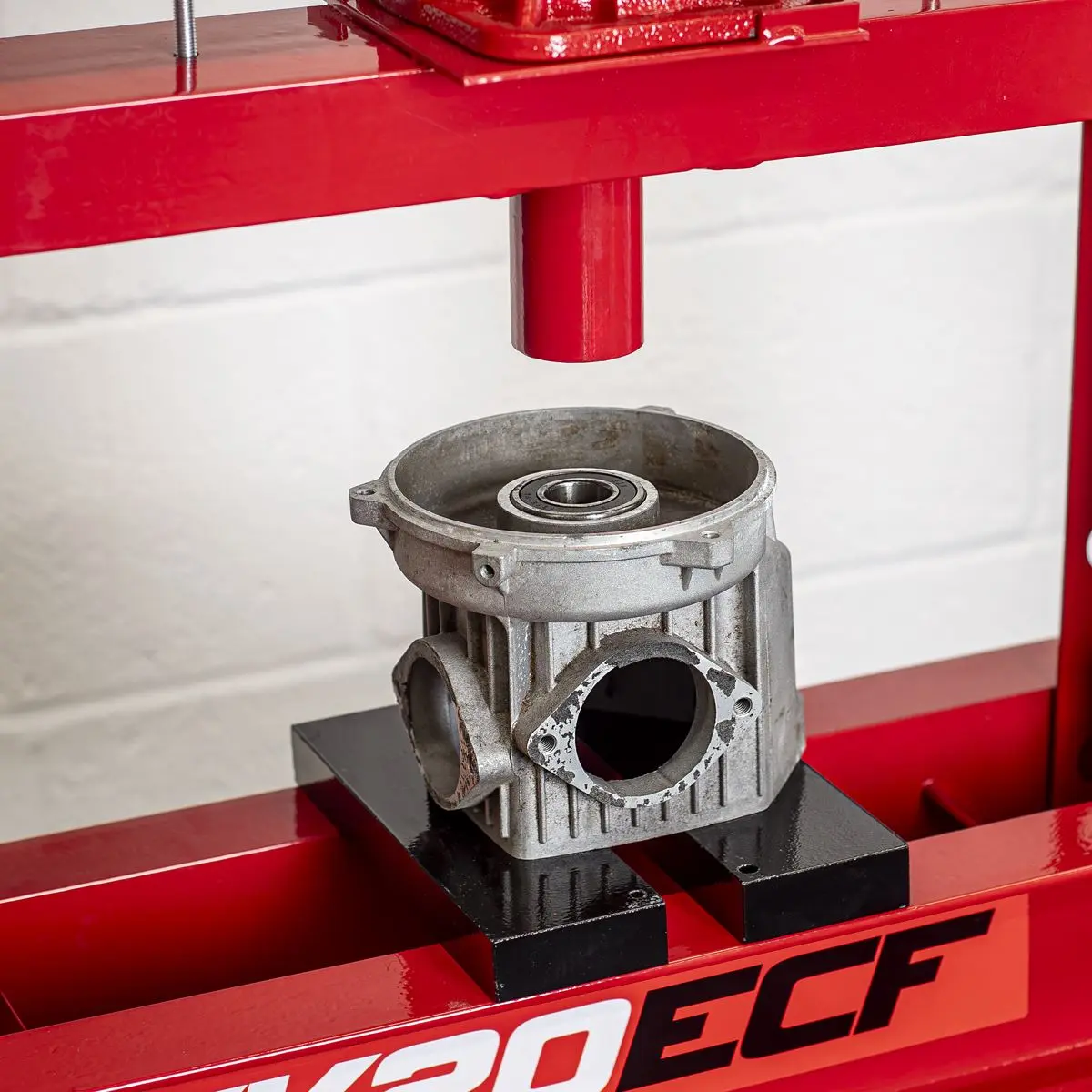

TWO ARBOR PLATES INCLUDED - Assisting alignment, and strengthening the press point position.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

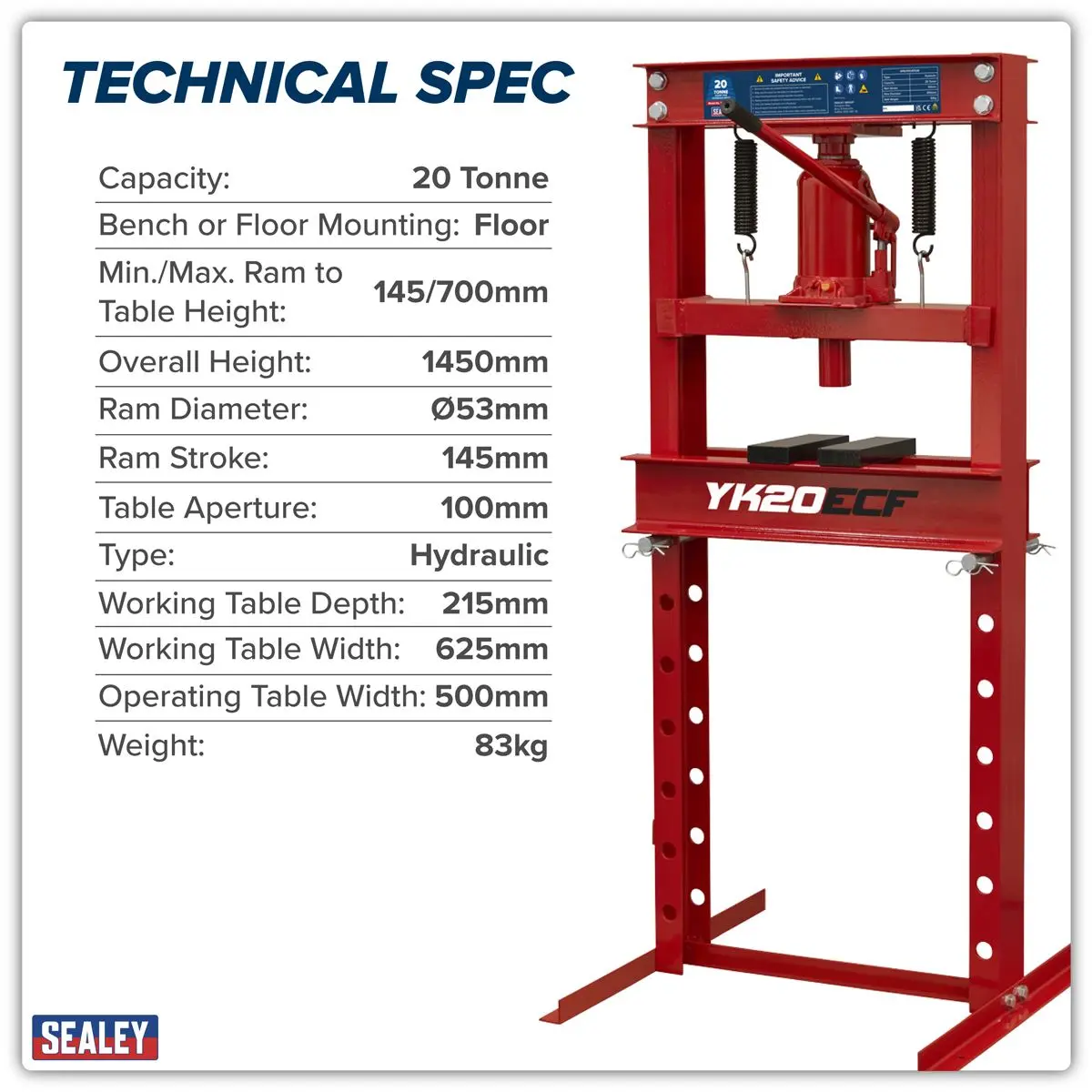

Specification:

• Model No YK20ECF
• Bench or Floor Mounting: Floor
• Brand: Sealey
• Capacity: 20 Tonne
• Gauge Included: No
• Lateral Ram Travel: n/a

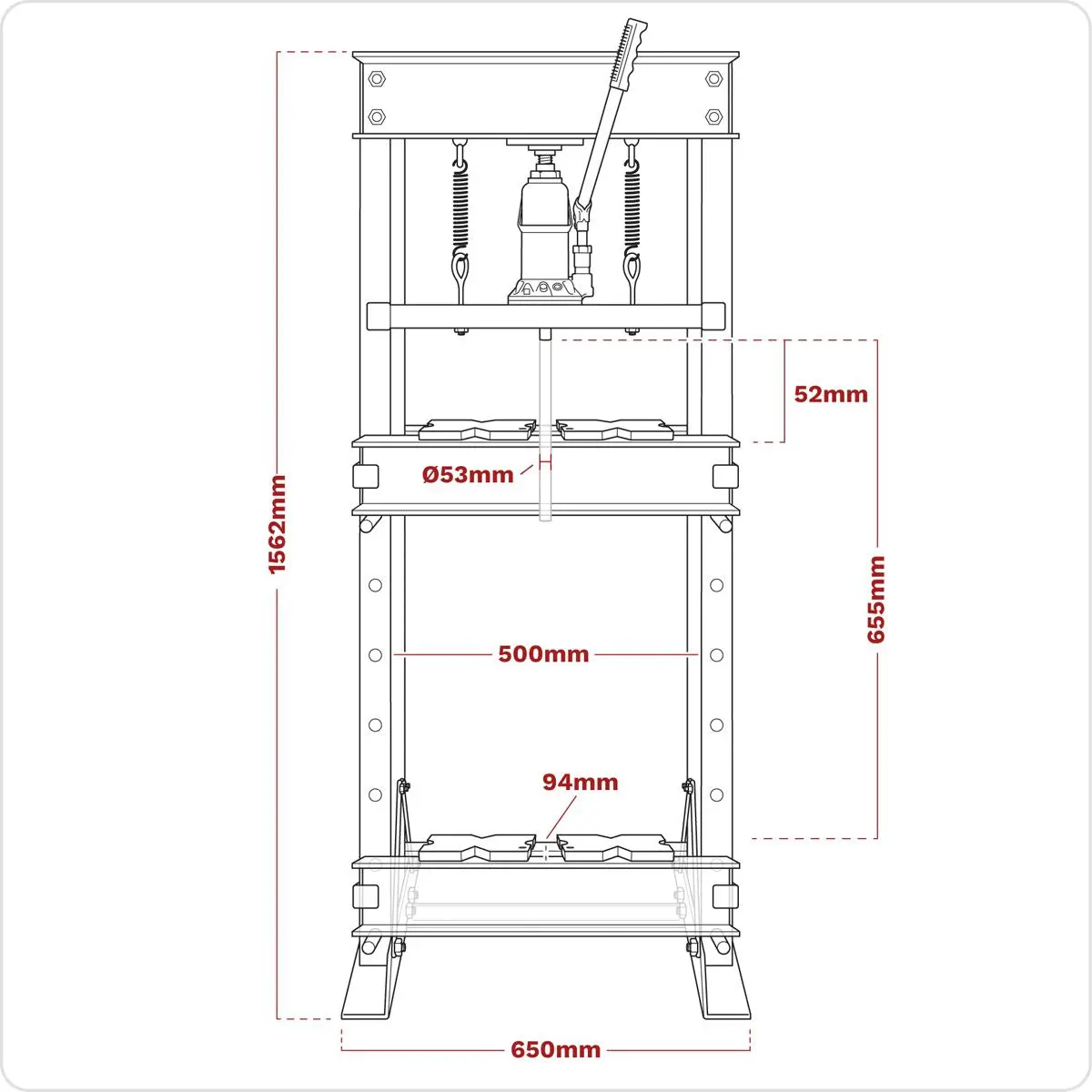

• Maximum Height - Ram to Table: 700mm
• Minimum Height - Ram to Table: -145mm
• Nett Weight: 83kg
• Operating Table Width: 500mm
• Optional Accessories: N/A
• Overall Height: 1450mm
• Ram Diameter: Ø53mm
• Ram Stroke: 145mm
• Table Aperture: 100mm
• Type: Hydraulic
• Working Table Depth: 215mm
• Working Table Width: 625mm

Product Guarantee: 1 Year
Catalogue Page: Page 897

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
