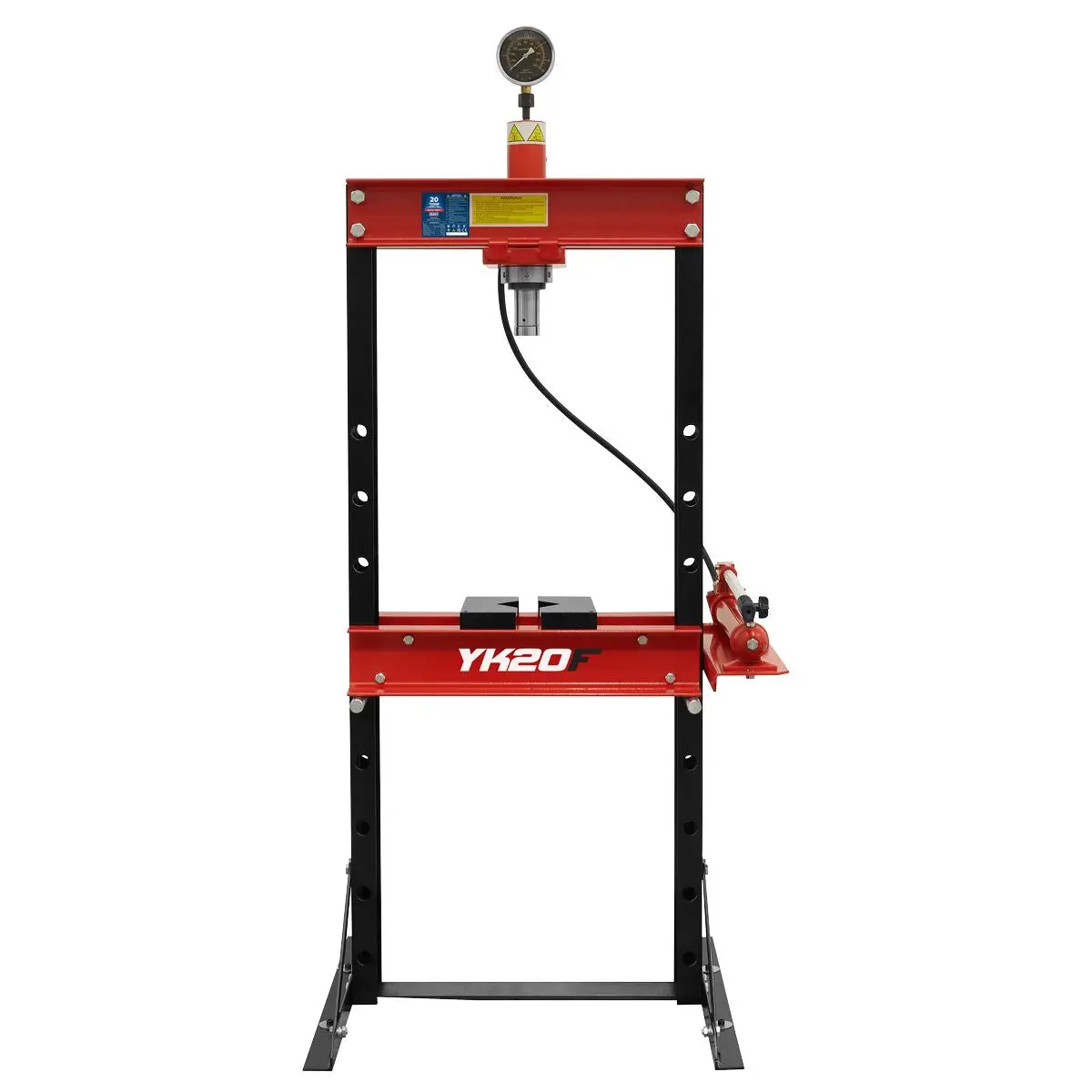

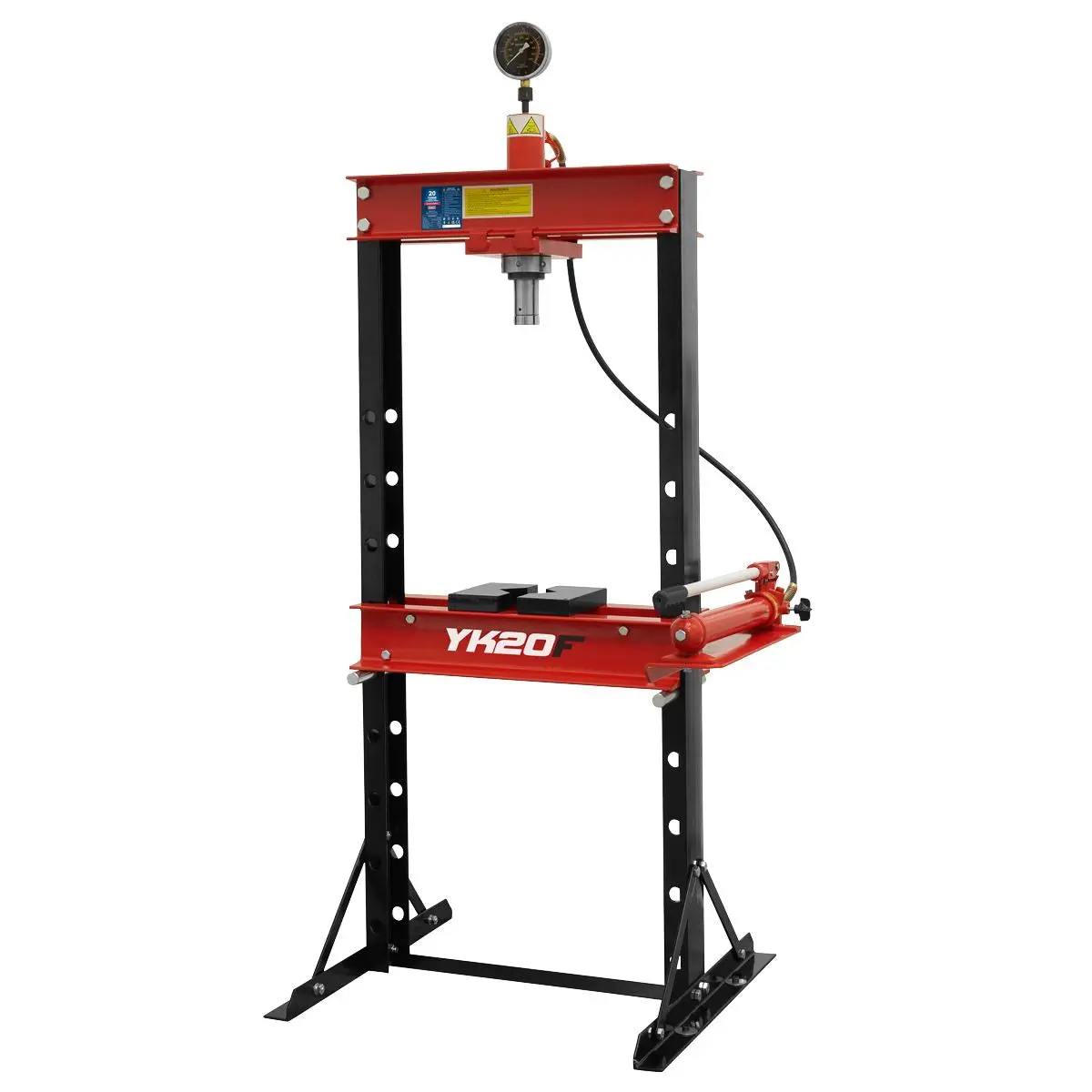

Sealey Hydraulic Floor Type Press 20 Tonne

Sealey Hydraulic Floor Type Press 20 Tonne

Steel frame construction with side mounted hydraulic pump unit.

Sliding hydraulic ram assembly giving 403mm of lateral travel for off-centre pressing applications.

Fitted with ram pressure gauge.

Supplied with flat pressing plate/V-blocks.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No YK20F
• Bench or Floor Mounting: Floor Mounted
• Brand: Sealey
• Capacity: 20 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: 403mm
• Maximum Height - Ram to Table: 1018mm
• Minimum Height - Ram to Table: 58mm
• Nett Weight: 92.5KG
• Operating Table Width: 545mm
• Optional Accessories: YKPP8 - Press Pin Set
• Overall Height: 1796mm
• Ram Diameter: Ø48mm
• Ram Stroke: 185mm
• Table Aperture: 100mm
• Type: Hydraulic
• Type: Hydraulic
• Working Table Width: 545mm

Product Guarantee: 1 Year
Catalogue Page: Page 897

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
