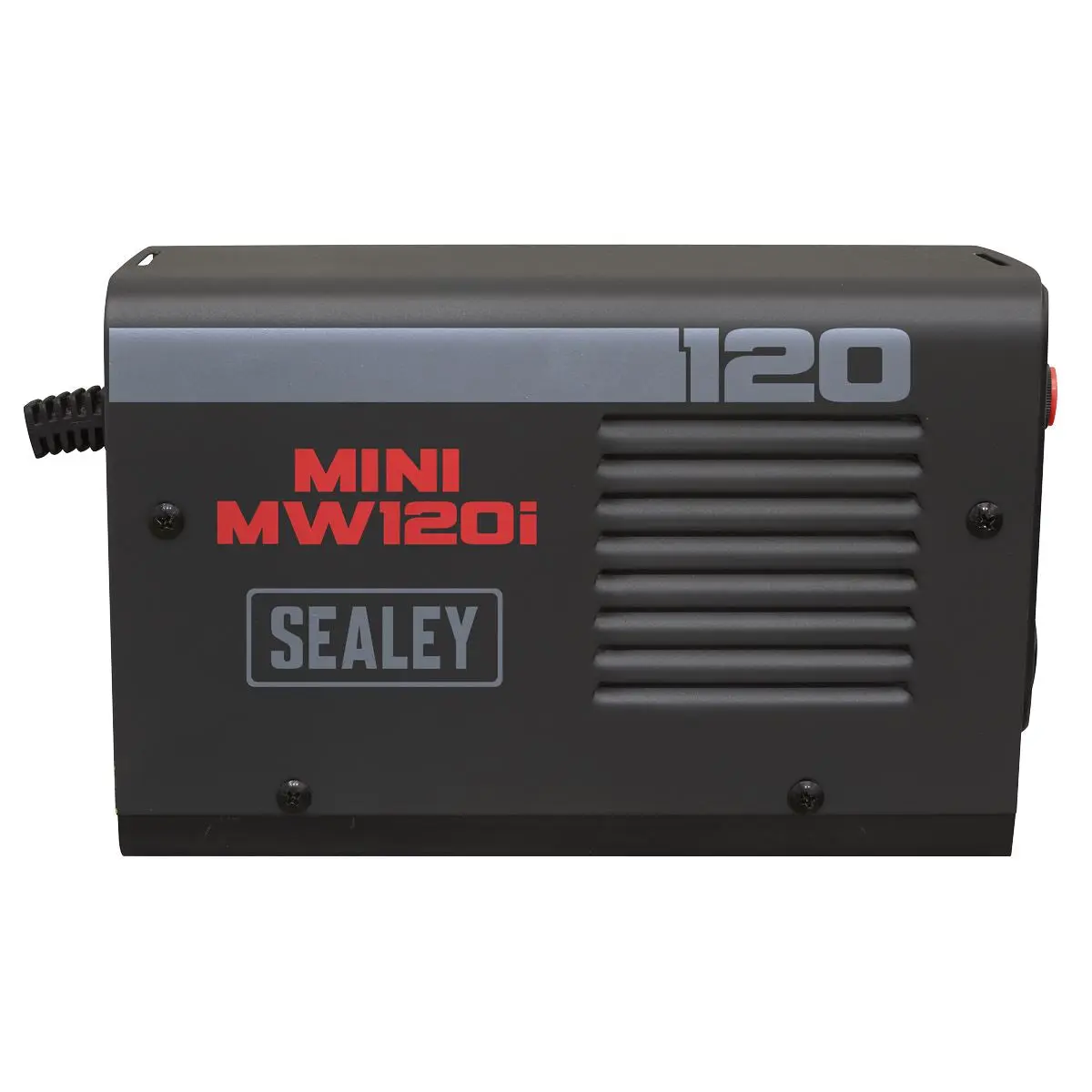

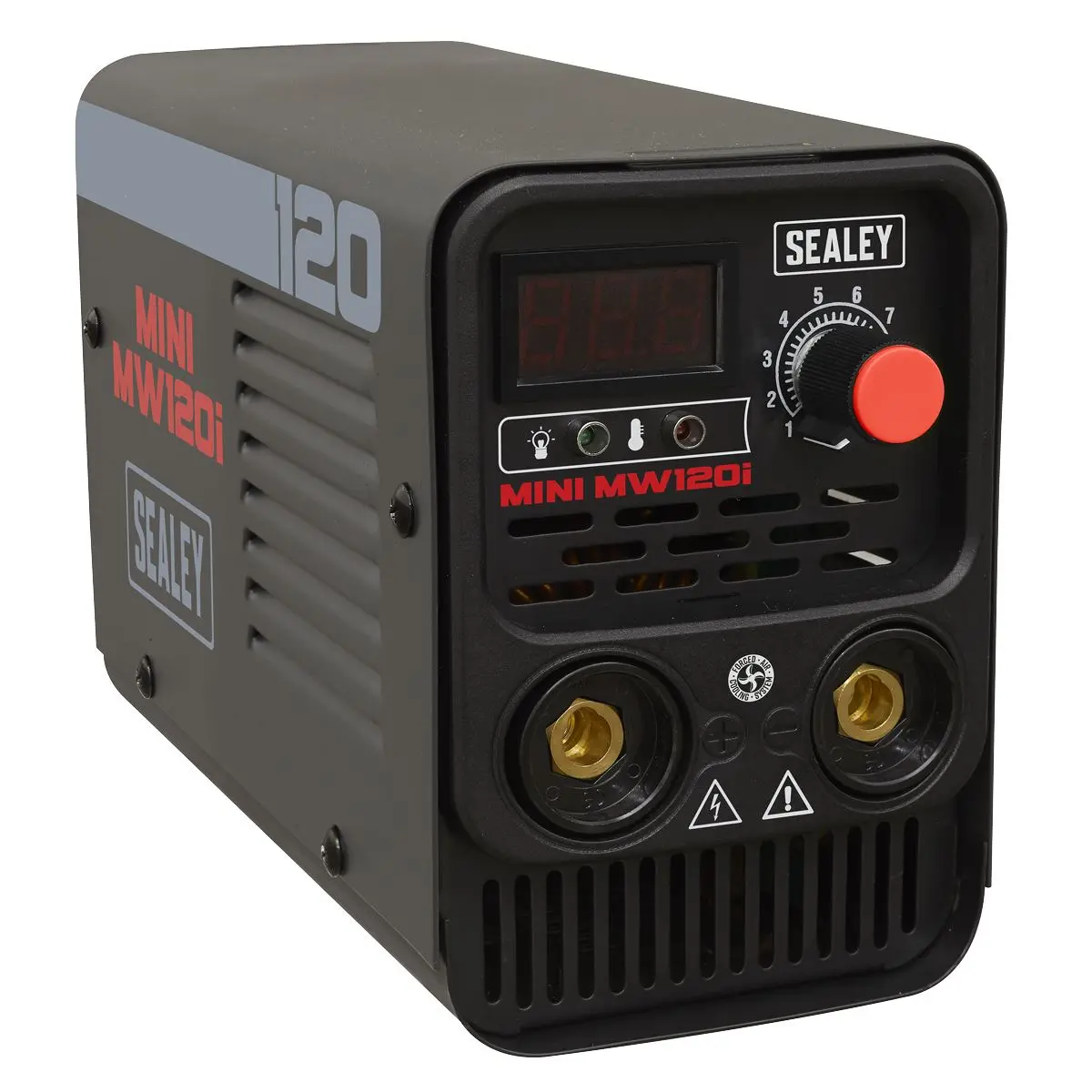

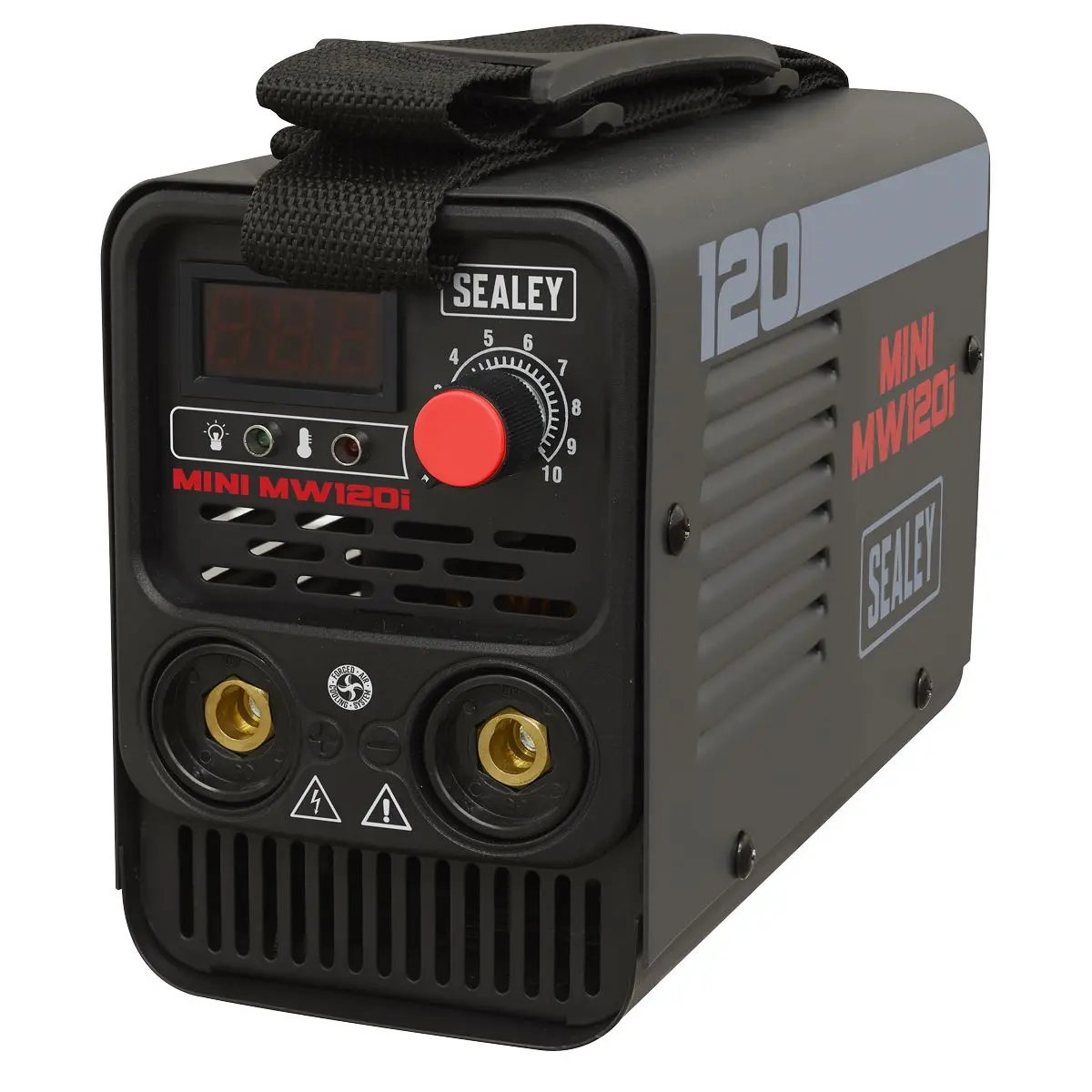

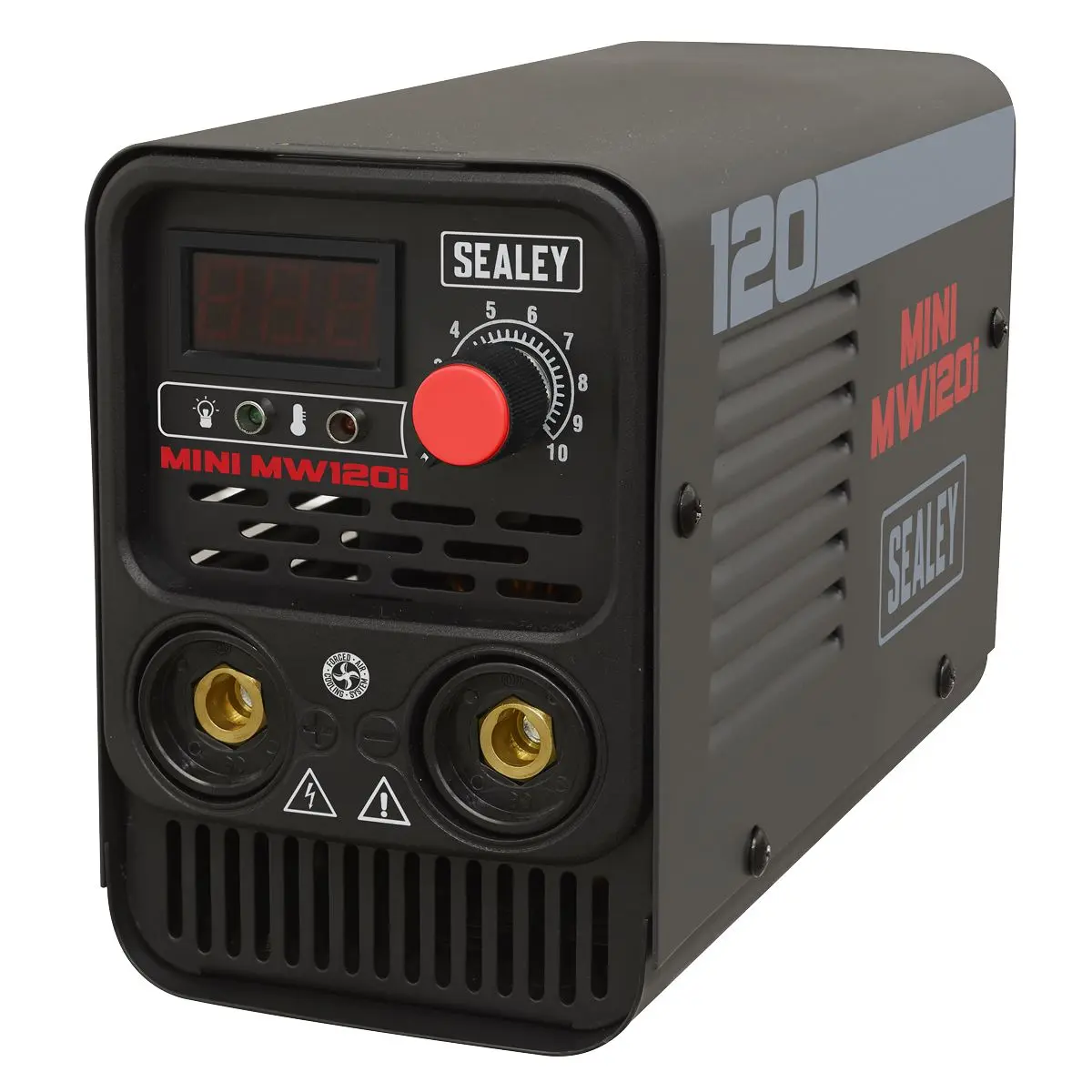

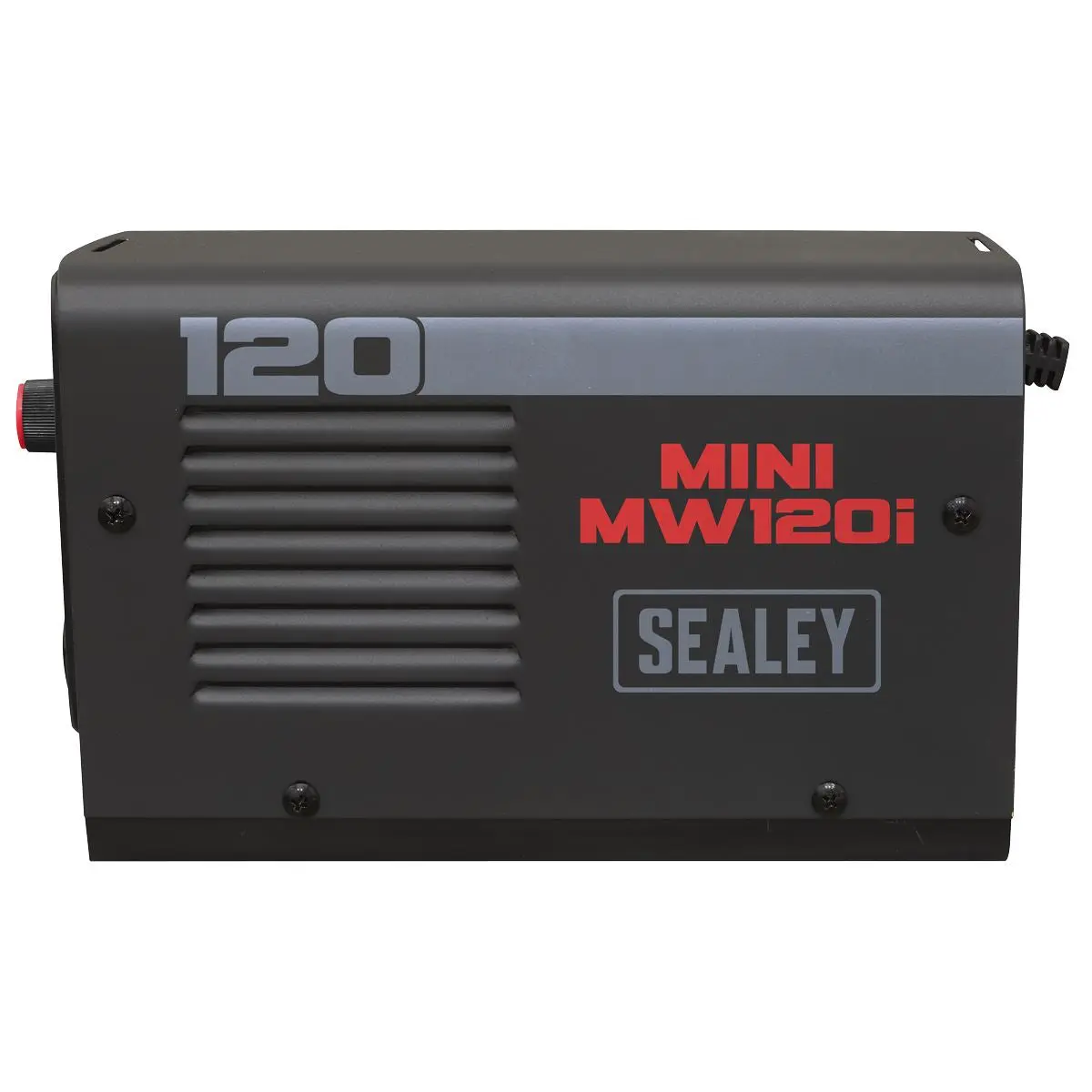

Sealey Inverter Welder 120A 230V

Sealey Inverter Welder 120A 230V

Ultra-compact and lightweight unit weighing just 4kg approx.

Portability allows the welder to be taken to the job at hand, ideal for mobile technicians.

Unit can ARC/MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø3.2mm.

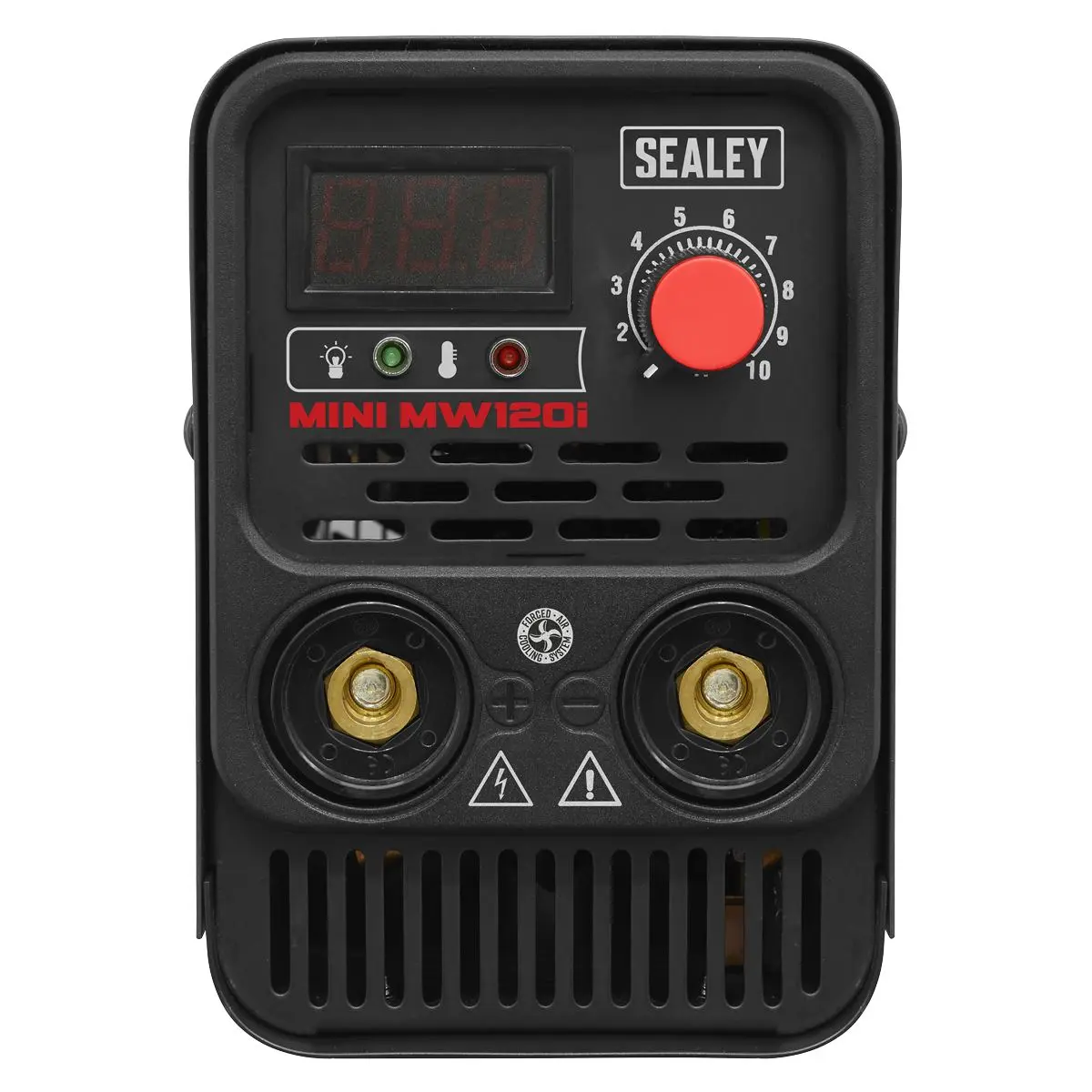

Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions.

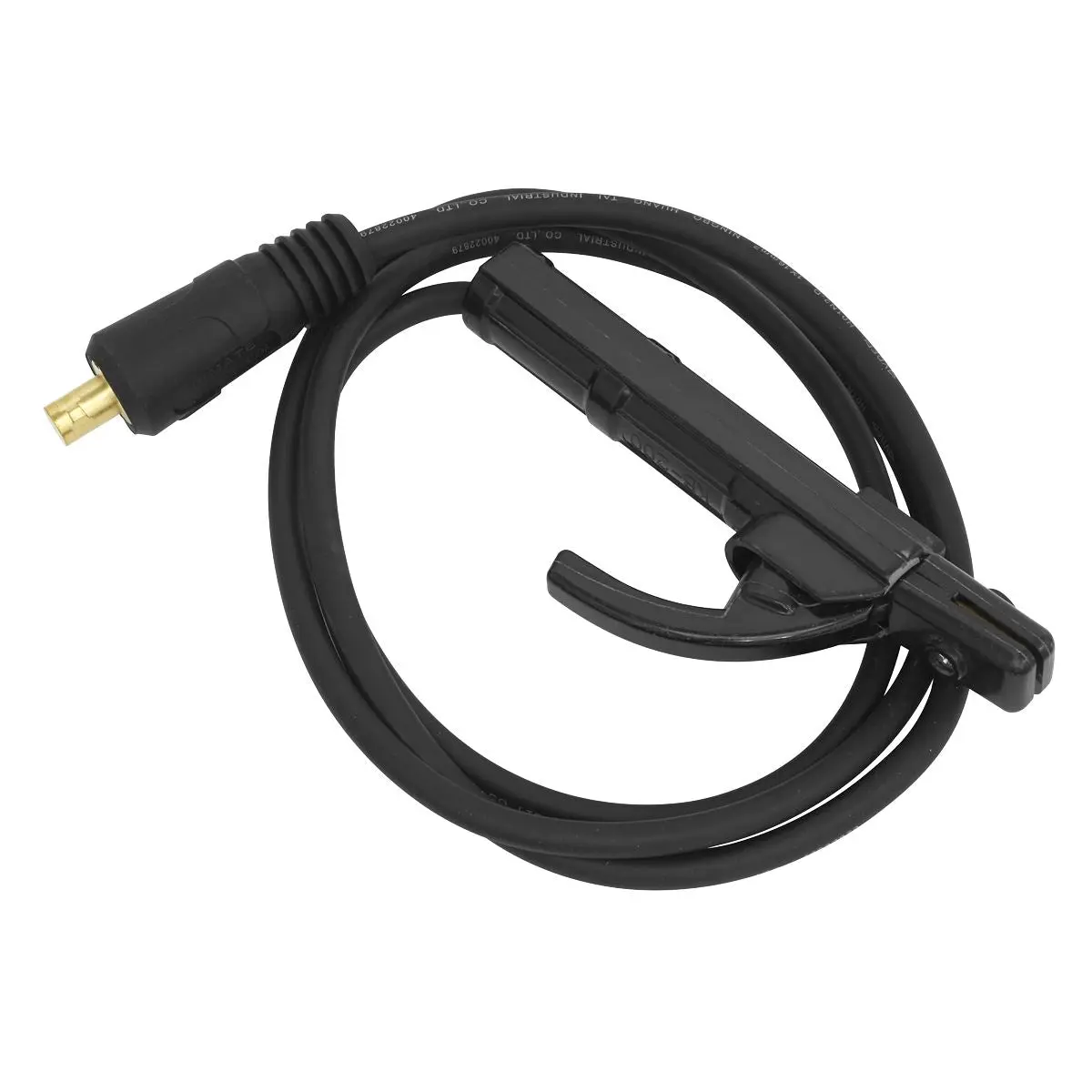

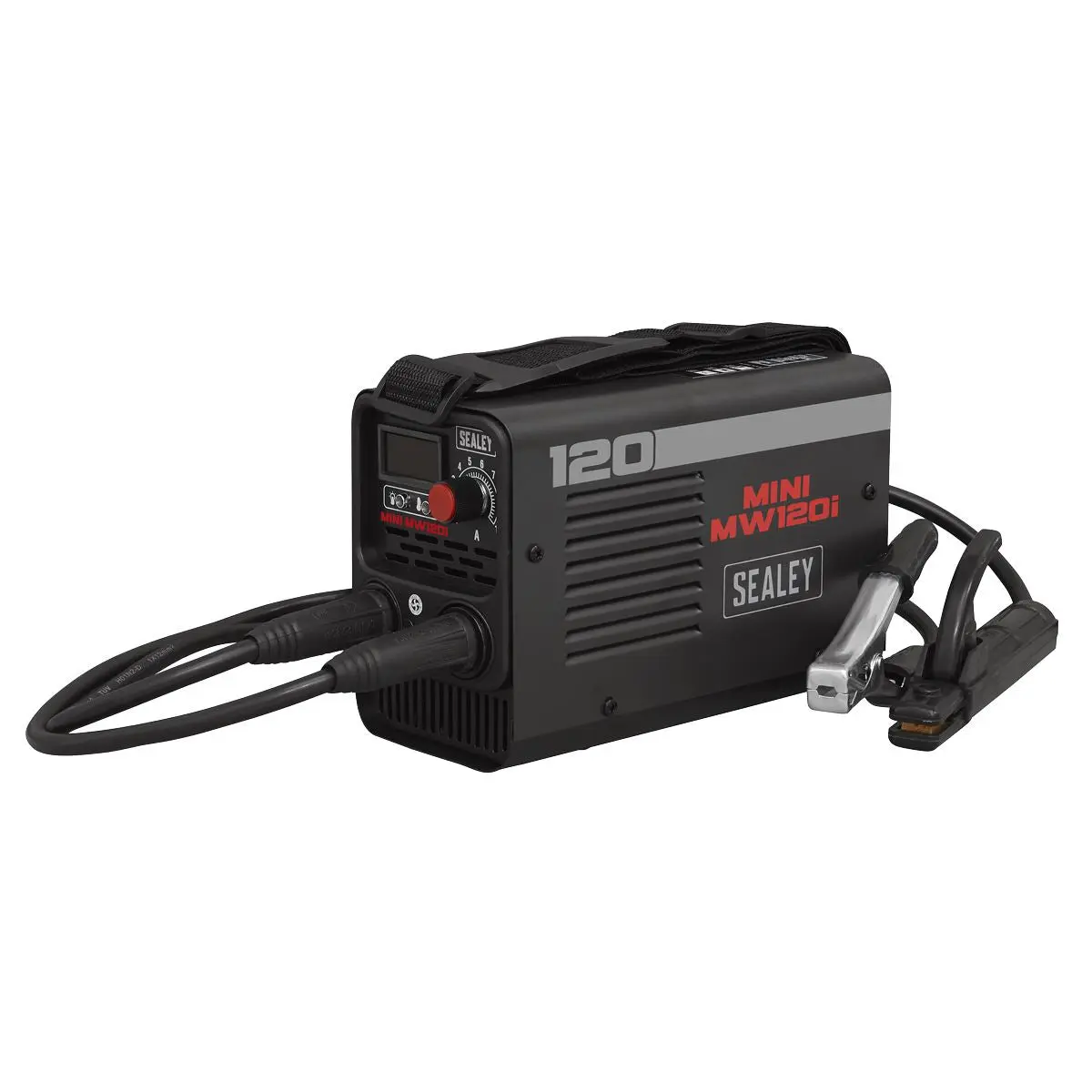

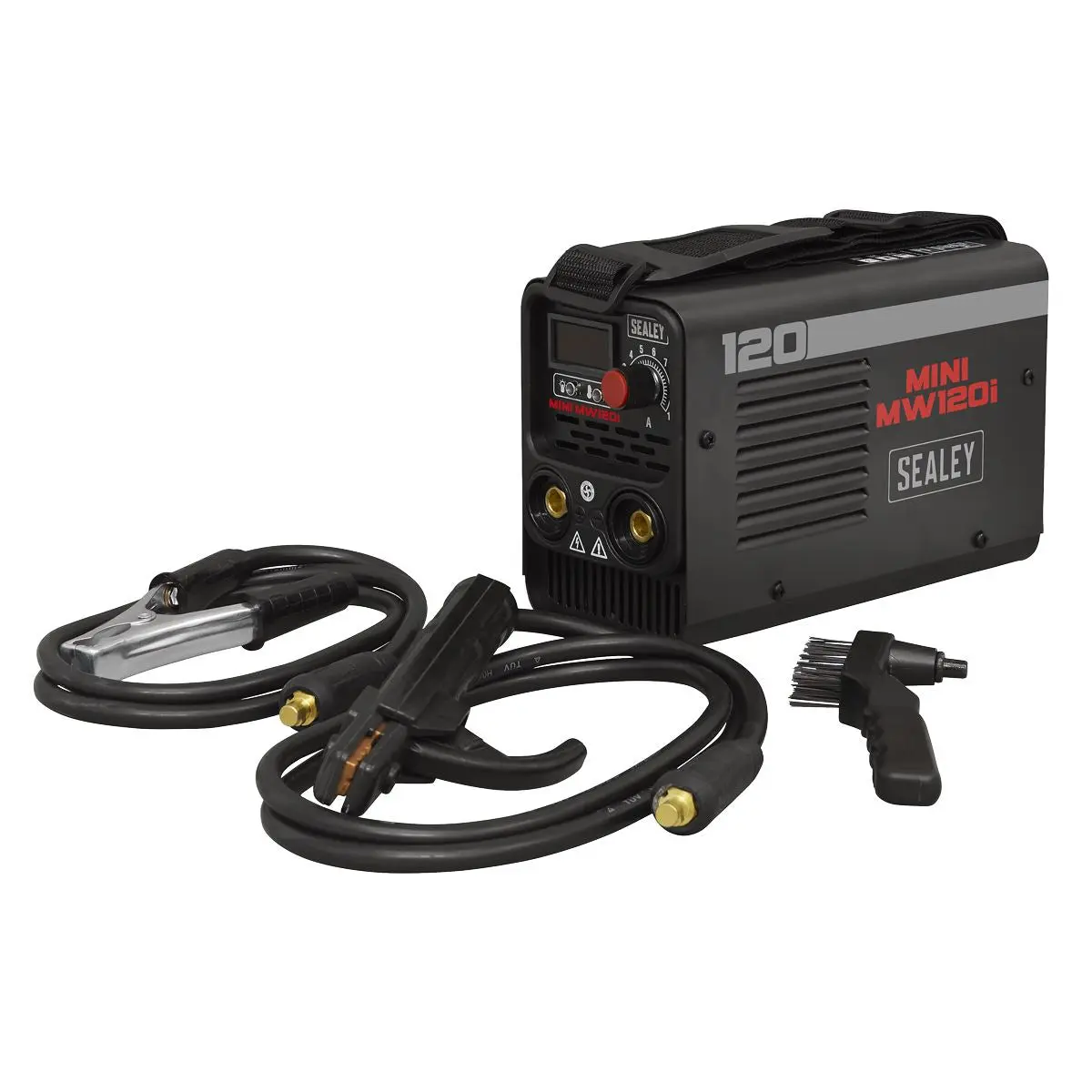

Supplied with 1.6m 12mm² cable with electrode holder and a 1.4m 12mm² earth clamp and cable, both with 10-25 dinse connectors.

Forced air cooling system.

Specification:

• Model No MINIMW120i
• Brand: Sealey
• Nett Weight: 3.7Kg
• Welding Current: 20-120A
• Duty Cycle: 100% @ 93A, 60% @ 120A
• Electrode Capacity: Ø1.6-3.2mm
• Absorbed Power: 3.5Kw
({IF["Supply: 230V-16A* *Note: To achieve maximum power a 16A supply may be required."!=""]})
• Supply: 230V-16A* *Note: To achieve maximum power a 16A supply may be required.
({ENDIF})
• Protection: IP21S
• Weight: 3.7Kg

Product Guarantee: 1 Year
Catalogue Page: Page 994

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
