Sealey Low Profile Engine Crane 0.5 Tonne

Sealey Low Profile Engine Crane 0.5 Tonne

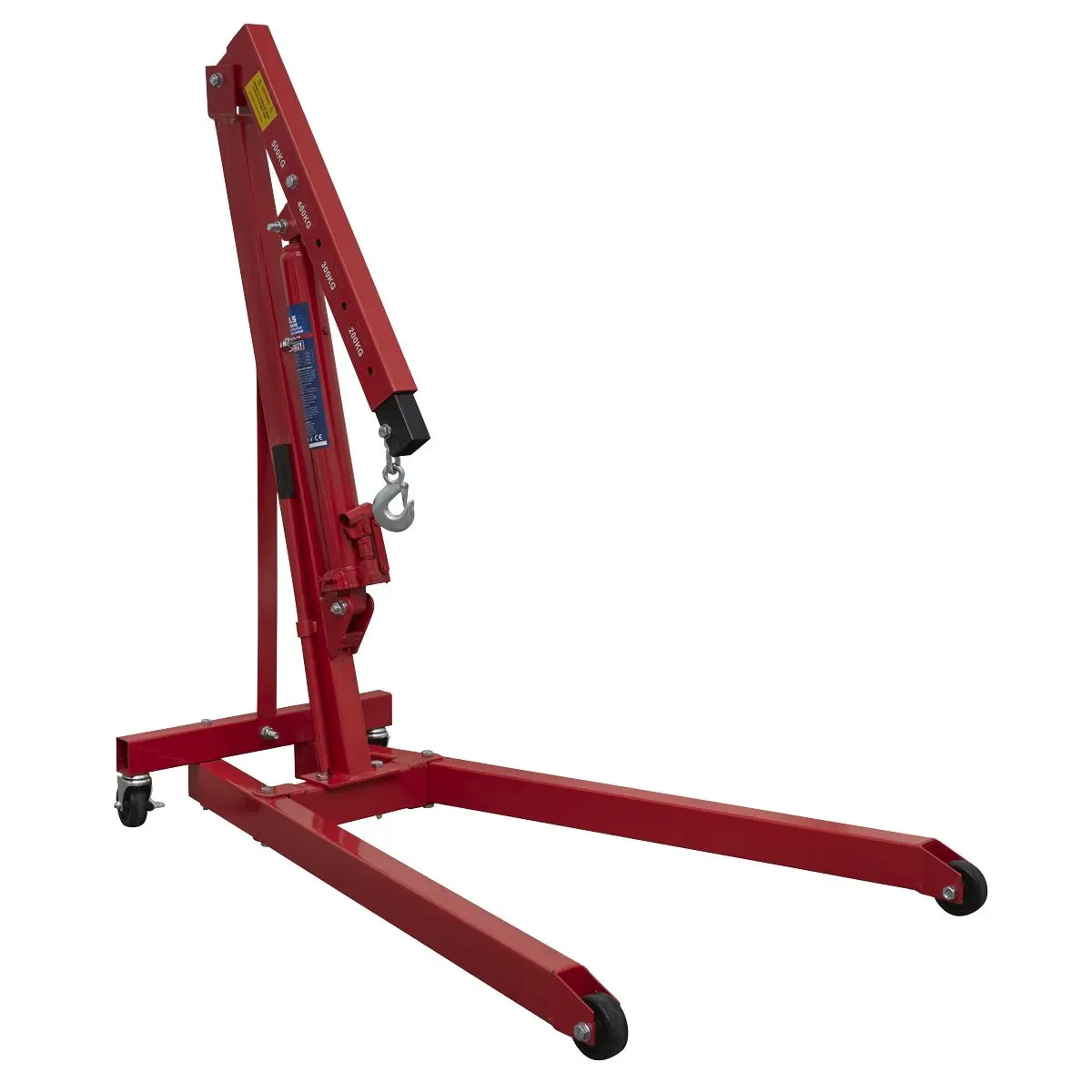

Low entry engine crane with a height of only 100mm at the wheels.

Weighs only 37kg so is extremely lightweight and manoeuvrable.

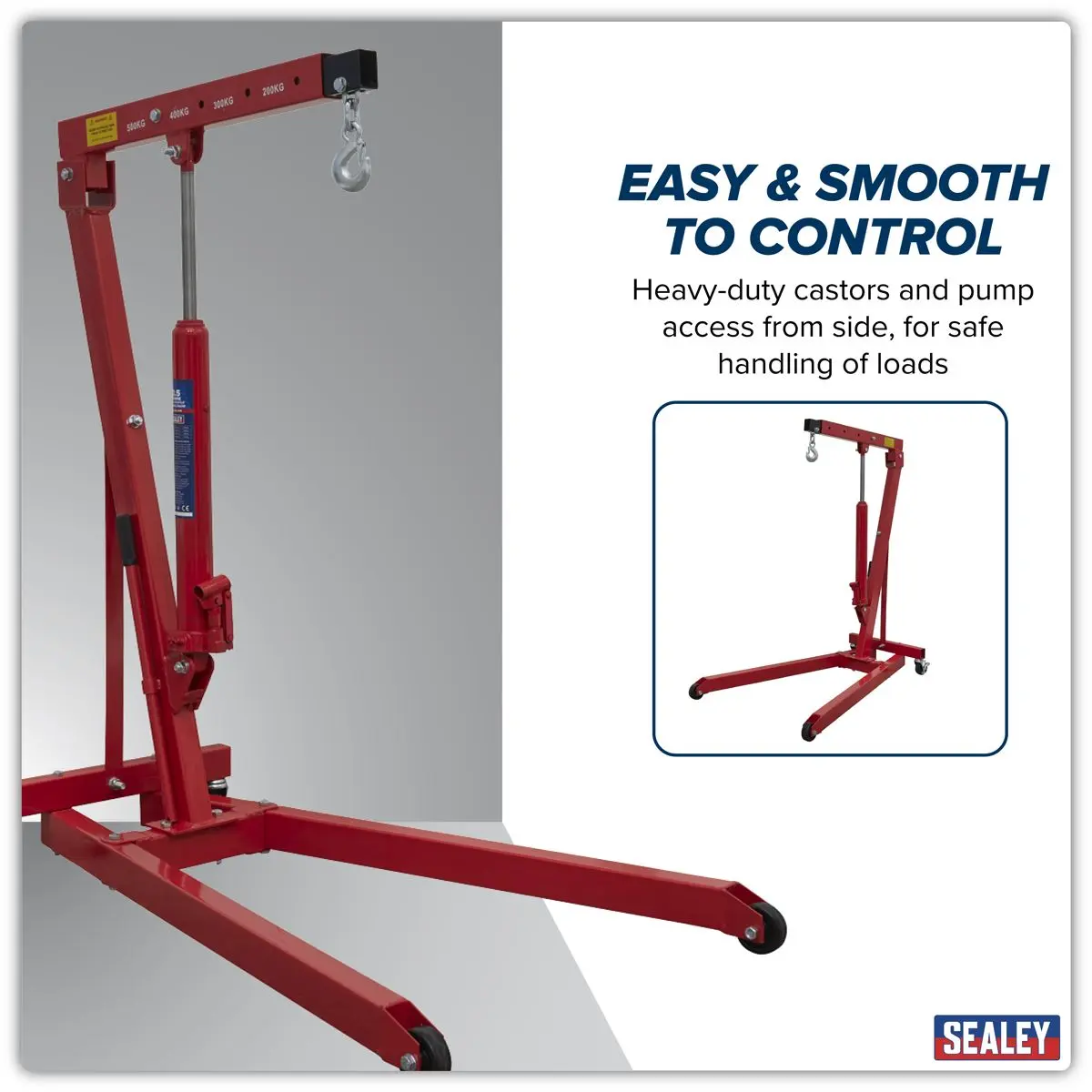

Heavy-duty castors and pump access from side, for safe handling of loads.

Delivered in knock-down form, some self-assembly required.

Specification:

• Model No PH5
• Brand: Sealey
• Height Jib Down: 1330mm
• Height Legs Folded: n/a
• Height of Frame: 100mm
• Length Legs Extended: n/a
• Length of Jib Position 1: 750mm
• Length of Jib Position 2: 860mm
• Length of Jib Position 3: 980mm
• Length of Jib Position 4: 1100mm
• Length of Jib Position 5: n/a
• Length: 1210mm
• Lifting Capacity in Position 1: 500kg
• Lifting Capacity in Position 2: 400kg
• Lifting Capacity in Position 3: 300kg
• Lifting Capacity in Position 4: 200kg
• Lifting Capacity in Position 5: n/a
• Max. Lift Ht at Jib Position 1: 1950mm
• Max. Lift Ht at Jib Position 2: 2050mm
• Max. Lift Ht at Jib Position 3: 2150mm
• Max. Lift Ht at Jib Position 4: 2250mm
• Max. Lift Ht at Jib Position 5: n/a
• Nett Weight: 37kg
• Rear Width: 550mm
• Width Front Frame: 800mm
• Width Inside Front Frame: 700mm

Product Guarantee: 1 Year
Catalogue Page: Page 886

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
