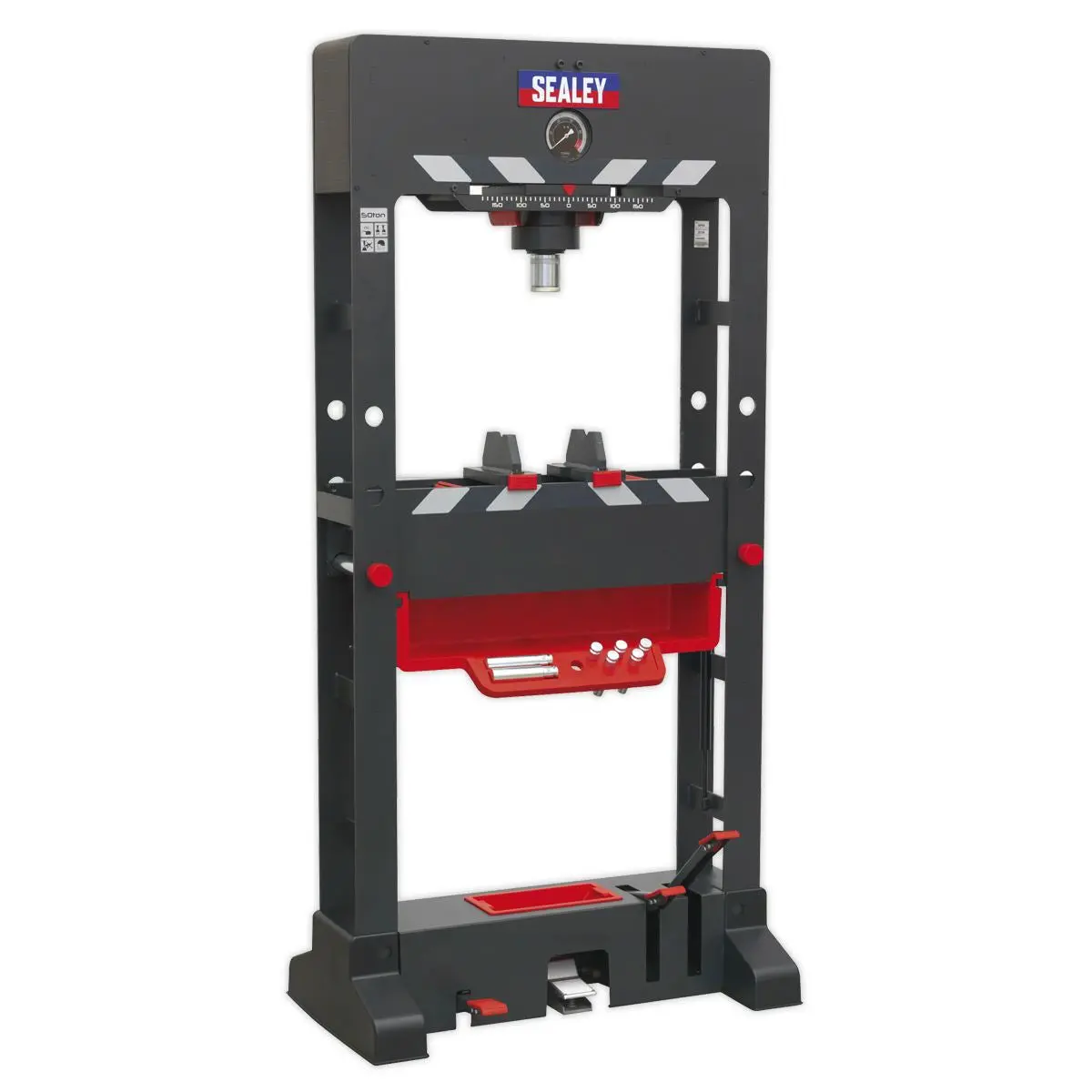

Sealey Premier Premier Air/Hydraulic Press 50 Tonne Floor Type with Sliding Ram and Foot Pedal

Sealey Premier Premier Air/Hydraulic Press 50 Tonne Floor Type with Sliding Ram and Foot Pedal

Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.

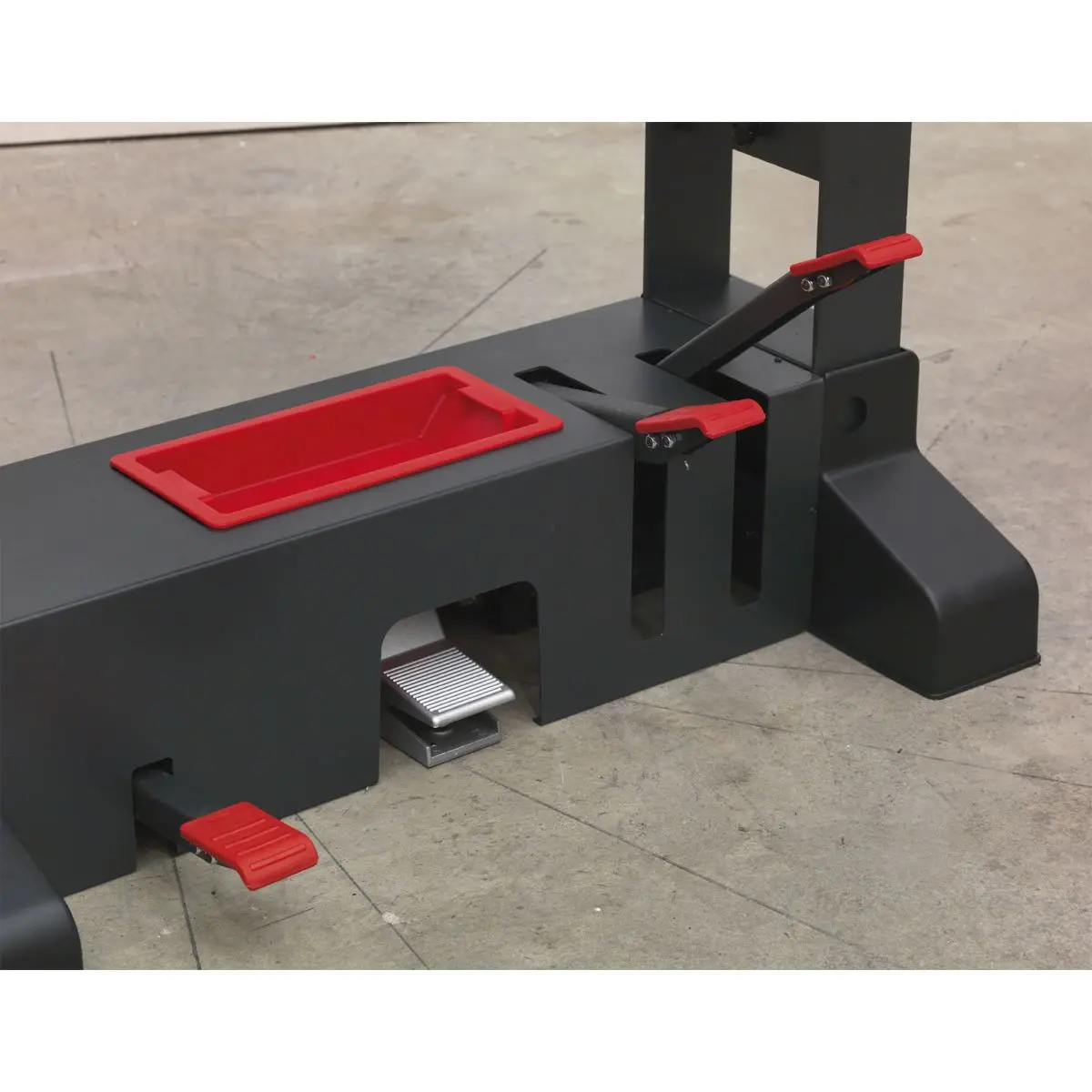

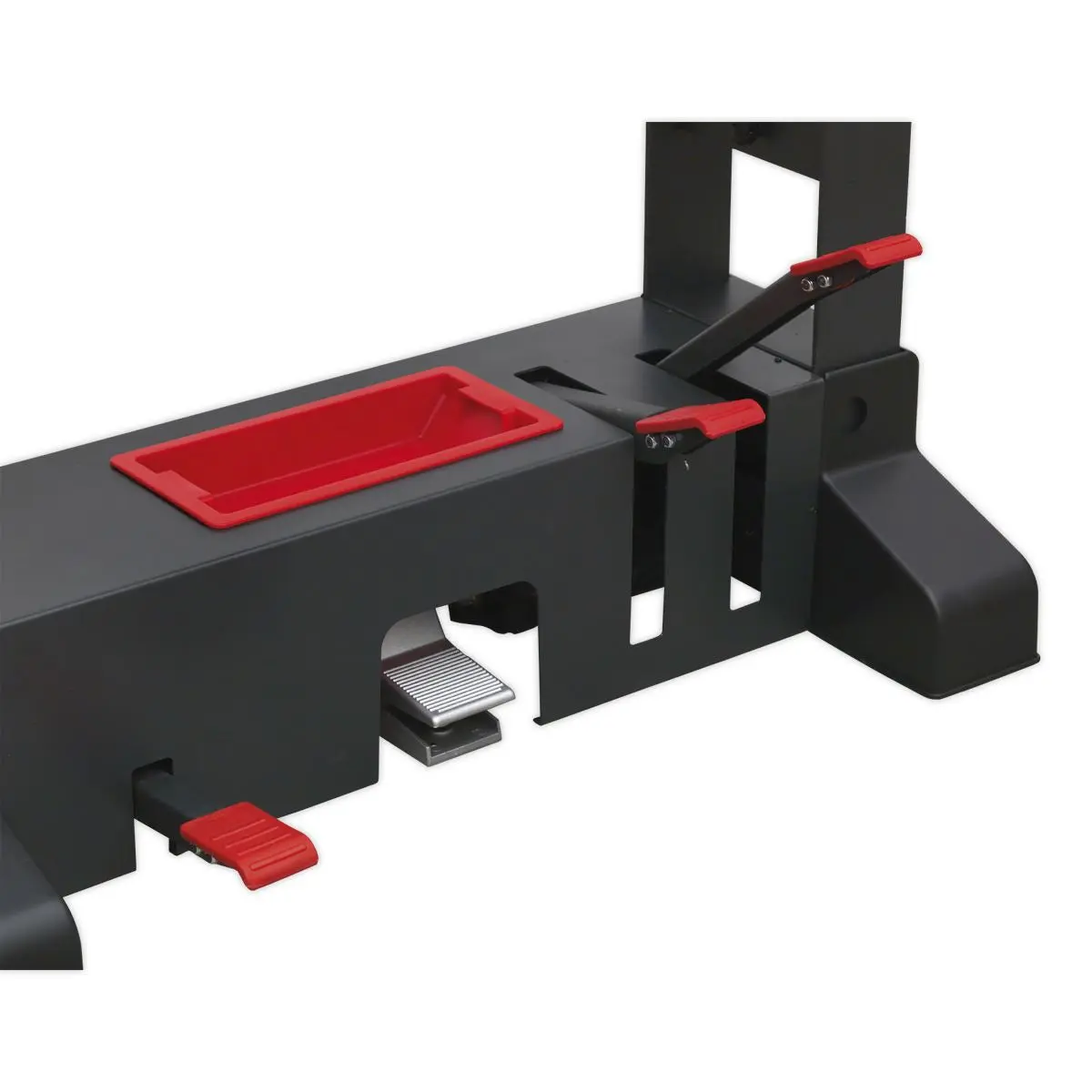

2-Speed manual operation via two foot pedals.

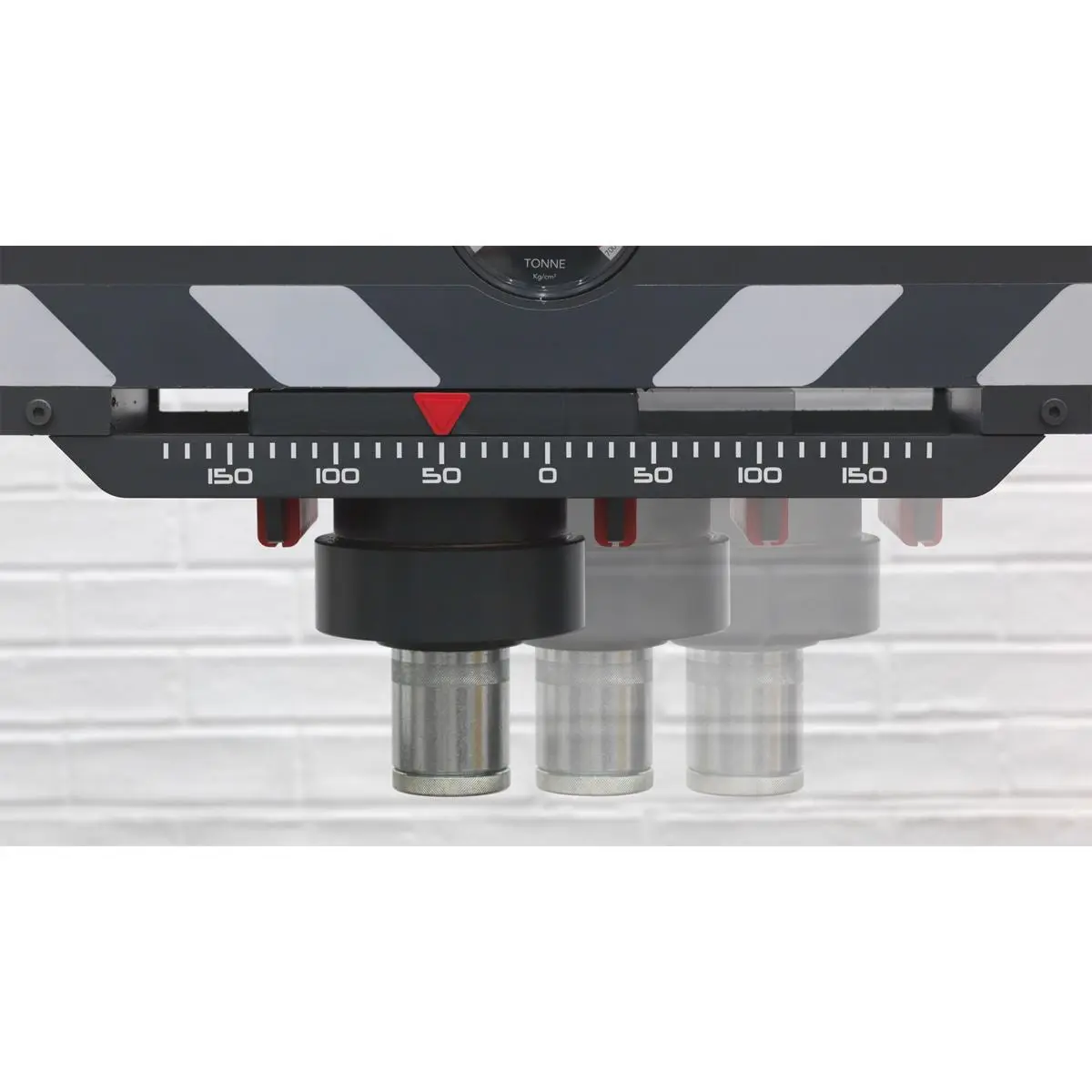

Sliding hydraulic ram assembly giving 229mm of lateral travel for off-centre pressing applications.

Fitted with ram pressure gauge.

Patented adjustable work area fitted with gas struts for easy positioning with removable tray.

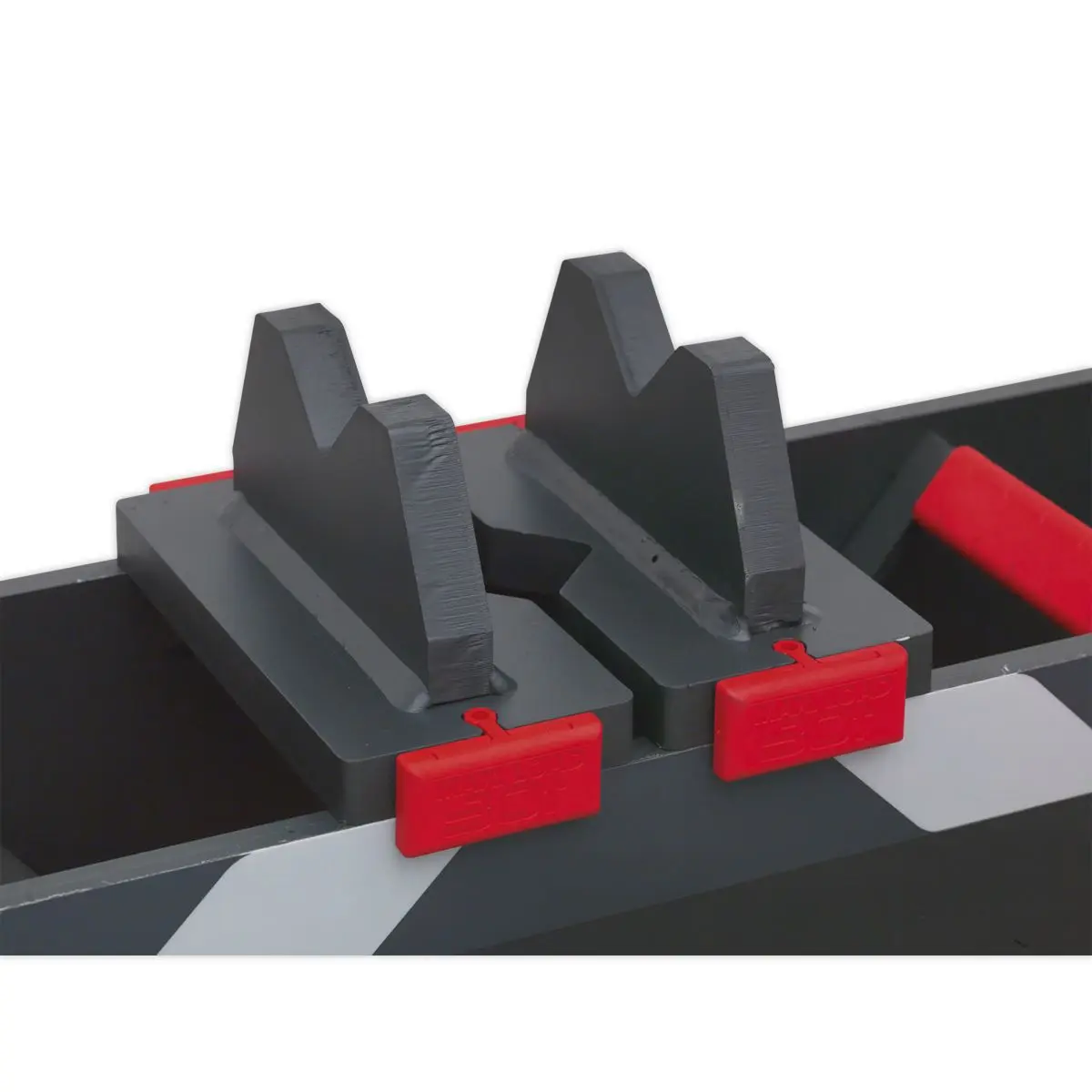

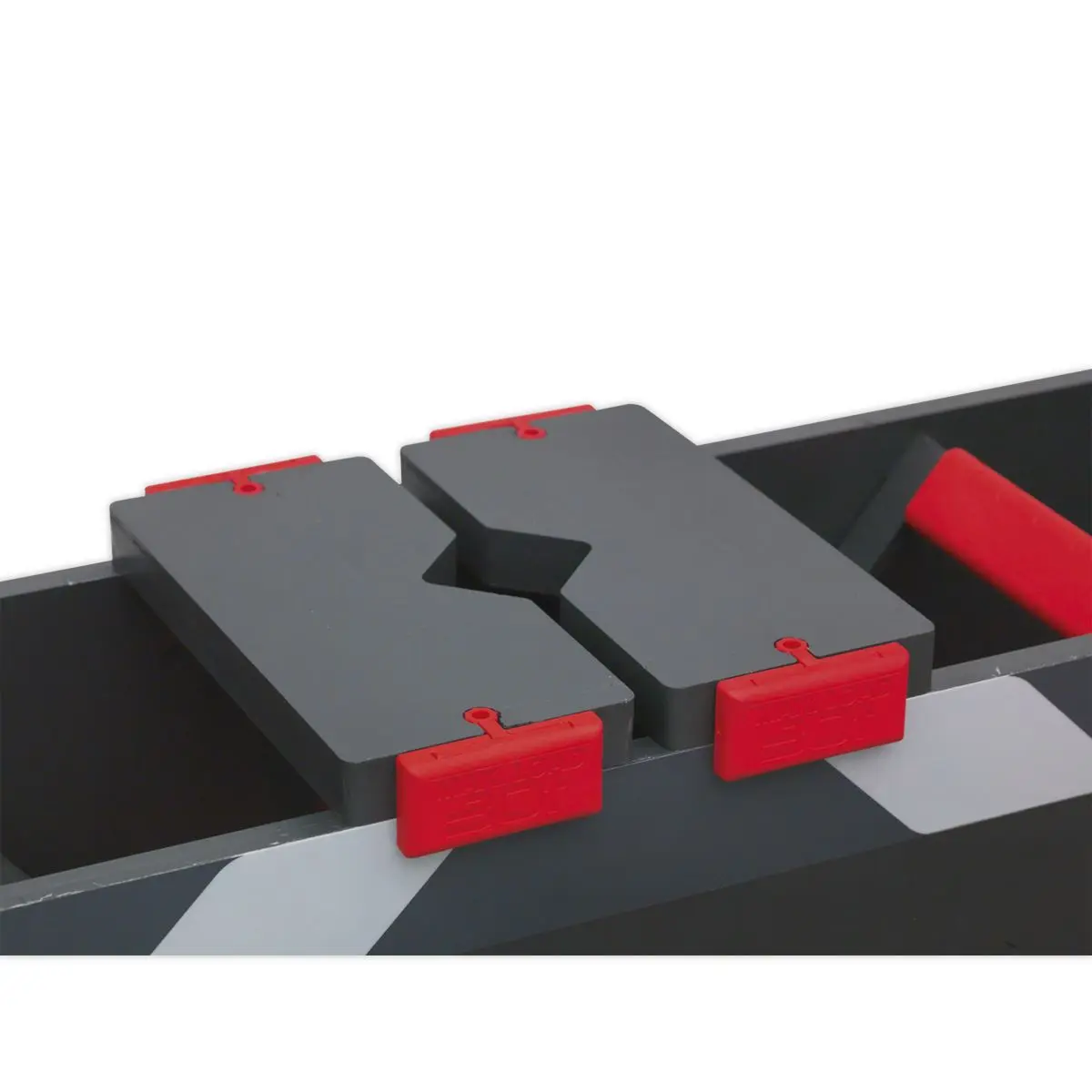

Supplied with pressing pins, flat pressing plate/V-blocks with patented guide system.

5 Year Guarantee*.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No PPF501
• Air Consumption: n/a
• Bench or Floor Mounting: Floor
• Brand: Sealey Premier
• Capacity: 50 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: 229mm
• Maximum Height - Ram to Table: 465mm
• Minimum Height - Ram to Table: 120mm
• Nett Weight: 225kg
• Optional Accessories: n/a
• Overall Height: 1920mm
• Ram Diameter: Ø76mm
• Ram Stroke: 229mm
• Table Aperture: 195mm
• Type: Air/Hydraulic
• Working Table Depth: 191mm
• Working Table Width: 490mm
• Working Table Width: 490mm

Product Guarantee: 5 Years
Catalogue Page: Page 319

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
