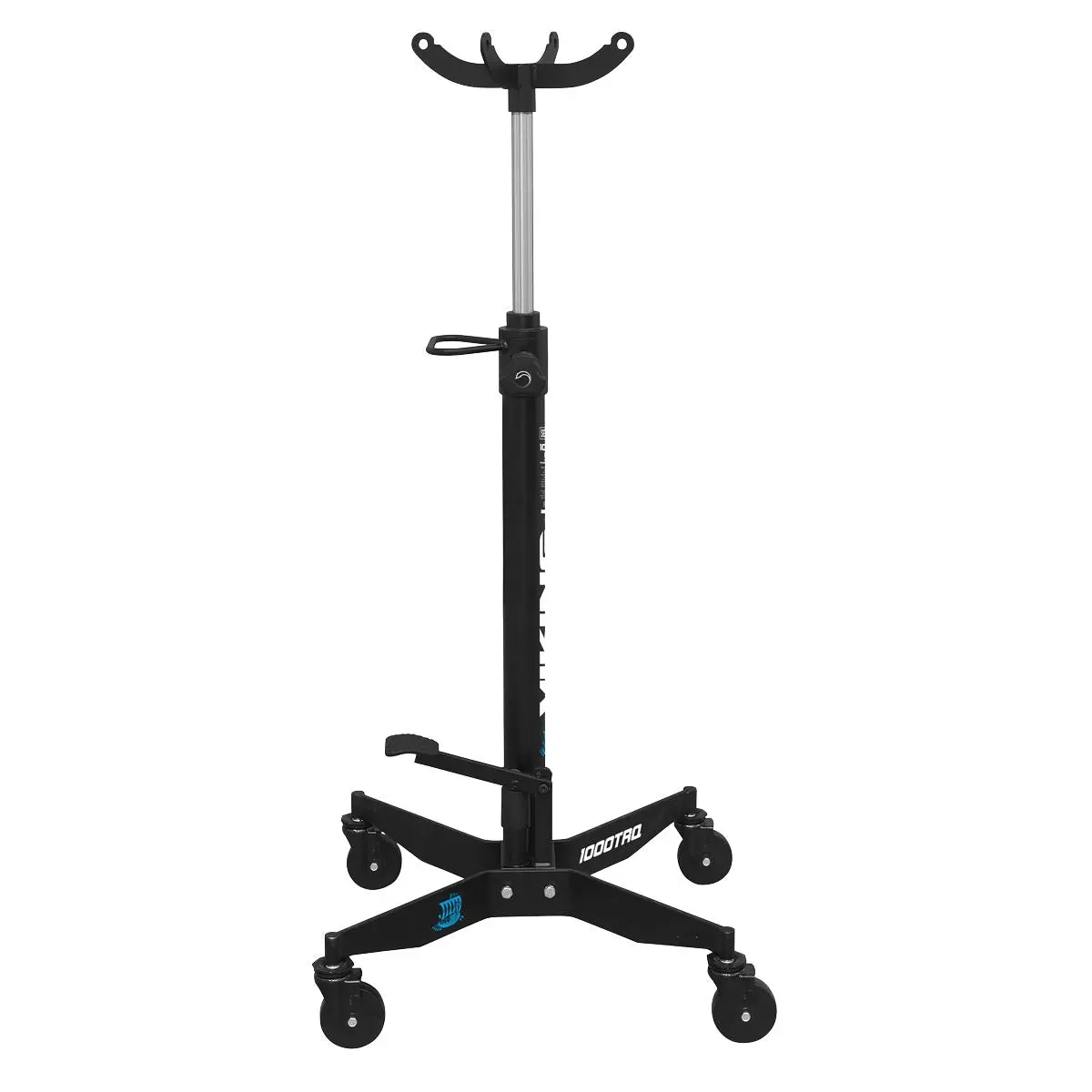

Sealey Premier Premier Vertical Quick Lift Transmission Jack 1 Tonne

Sealey Premier Vertical Quick Lift Transmission Jack 1 Tonne

QUICK LIFT - reduced time and effort needed to get saddle to gearbox, only a maximum of 28 pumps needed to reach full height.

CONVENIENT - Single foot pedal operation keeps hands-free during lifting process.

SAFE - Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.

CONTROLLED - 2-Way hydraulic unit ensures that the saddle lowers at a controlled speed at all times, even without load.

HEAVY DUTY - Hydraulic unit larger than the economy models for improved performance and durability.

UNIVERSAL - Saddle is reversible allowing a jack pad to be fitted to support items other than transmissions.

MANEUVERABLE - Castors and side handle make the units easily positioned.

SUITABLE - for use with optional Adjustable Gearbox Support - Model No. ADT3.

3 YEAR GUARANTEE*.

Specification:

• Model No 1000TRQ
• Base Size: 660 x 620mm
• Brand: Sealey
• Capacity: 1000kg
• Fixed/Adjustable Saddle: Fixed
• Maximum Saddle Height: 2010mm
• Minimum Saddle Height: 1165mm
• Nett Weight: 39.80kg
• Pump Strokes to Maximum Height: 28
• Ram Extensions: 840mm
• Ram Extensions: 1

Product Guarantee: 3 Years
Catalogue Page: Page 879

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
