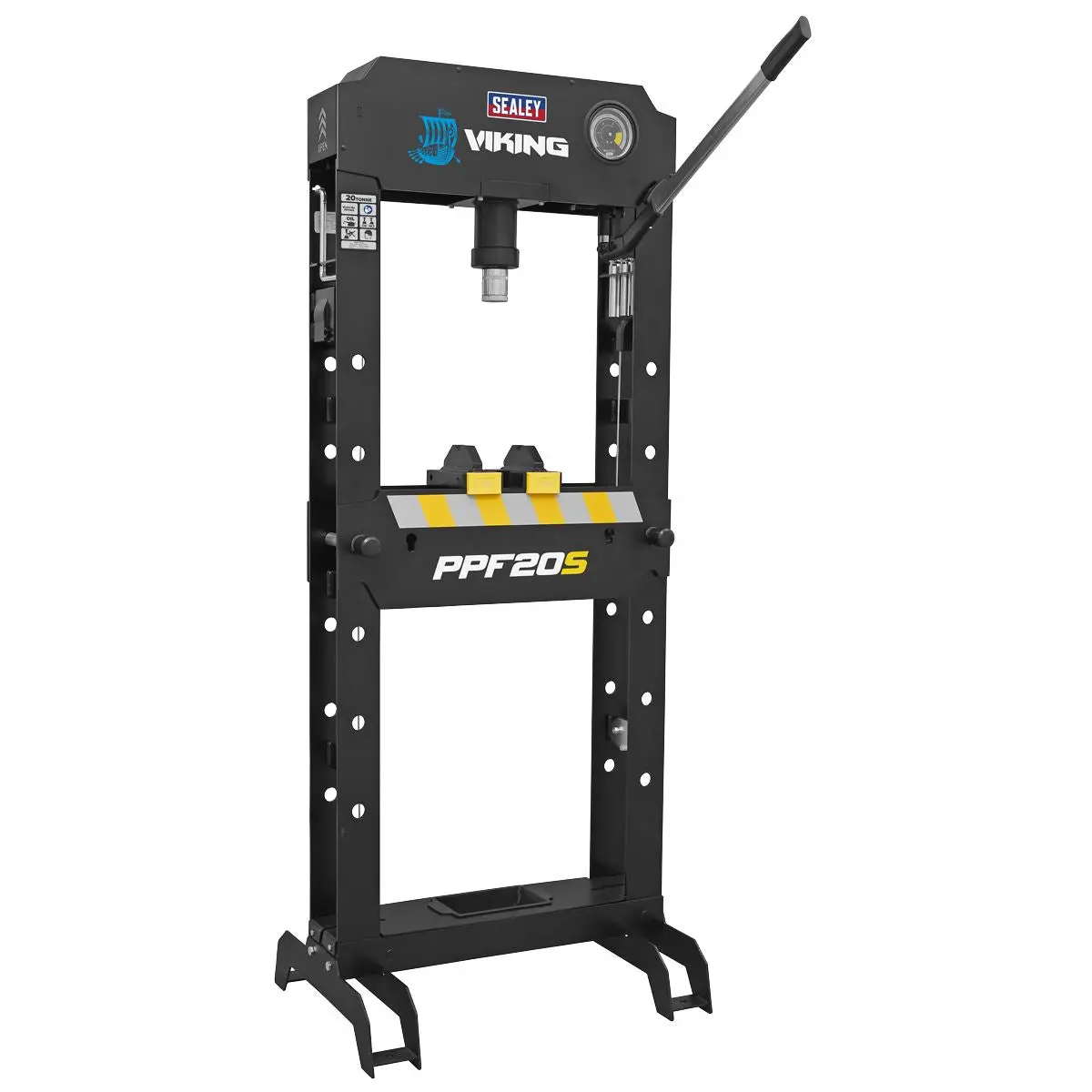

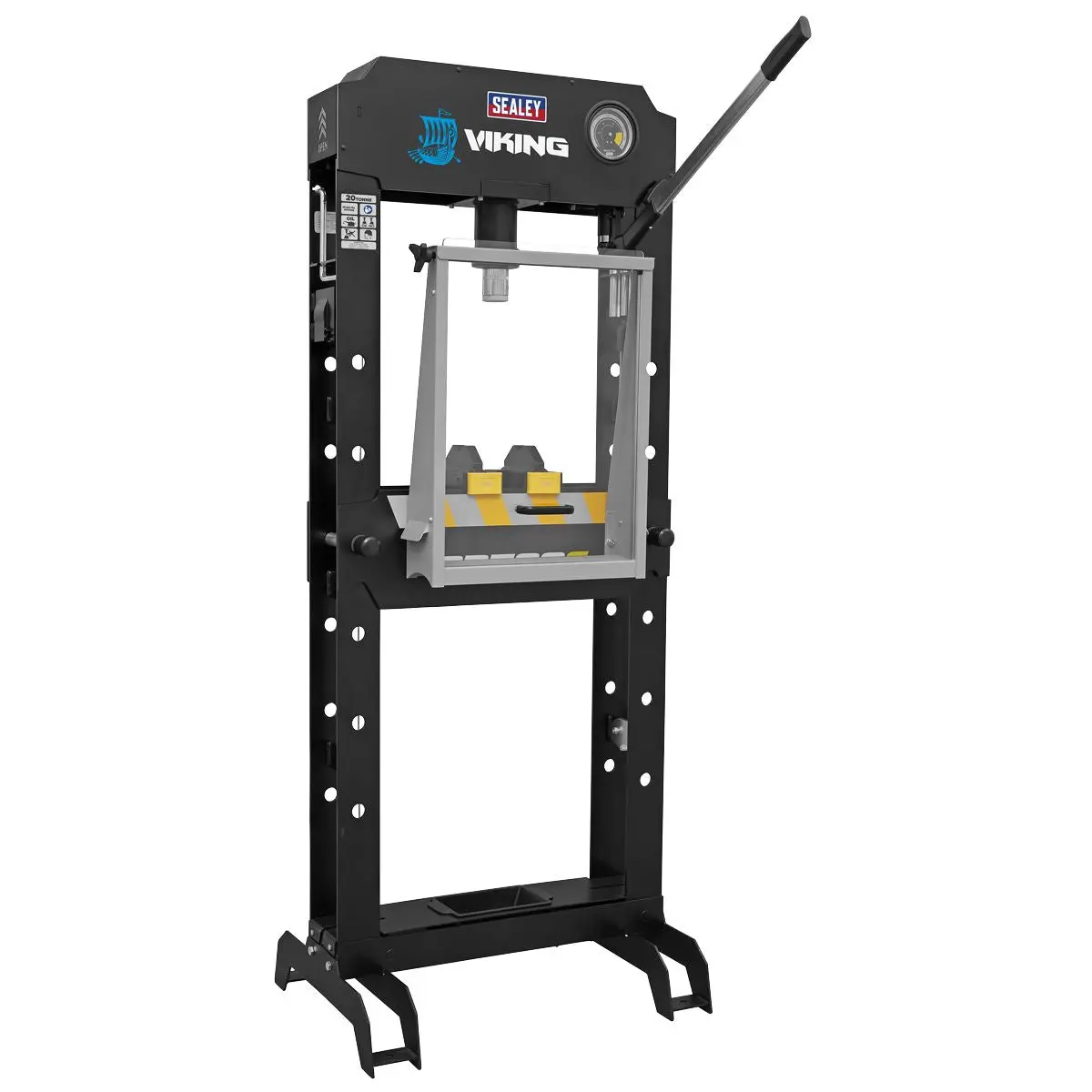

Sealey Viking Floor Type Hydraulic Press 20 Tonne

Sealey Viking Floor Type Hydraulic Press 20 Tonne

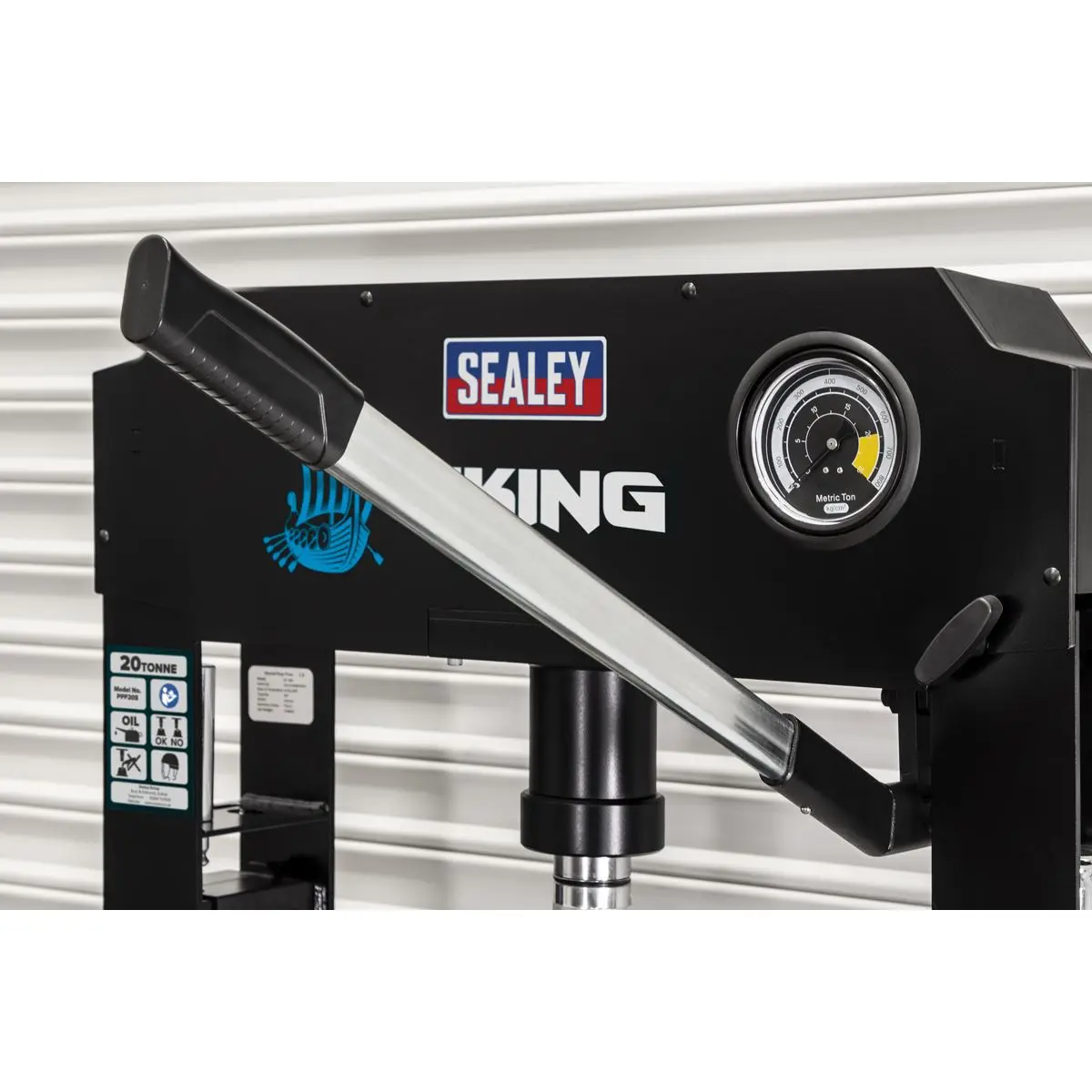

Heavy-duty steel frame construction with handle operated hydraulic pump unit.

Screw adjustable ram and adjustable work area with removable tray.

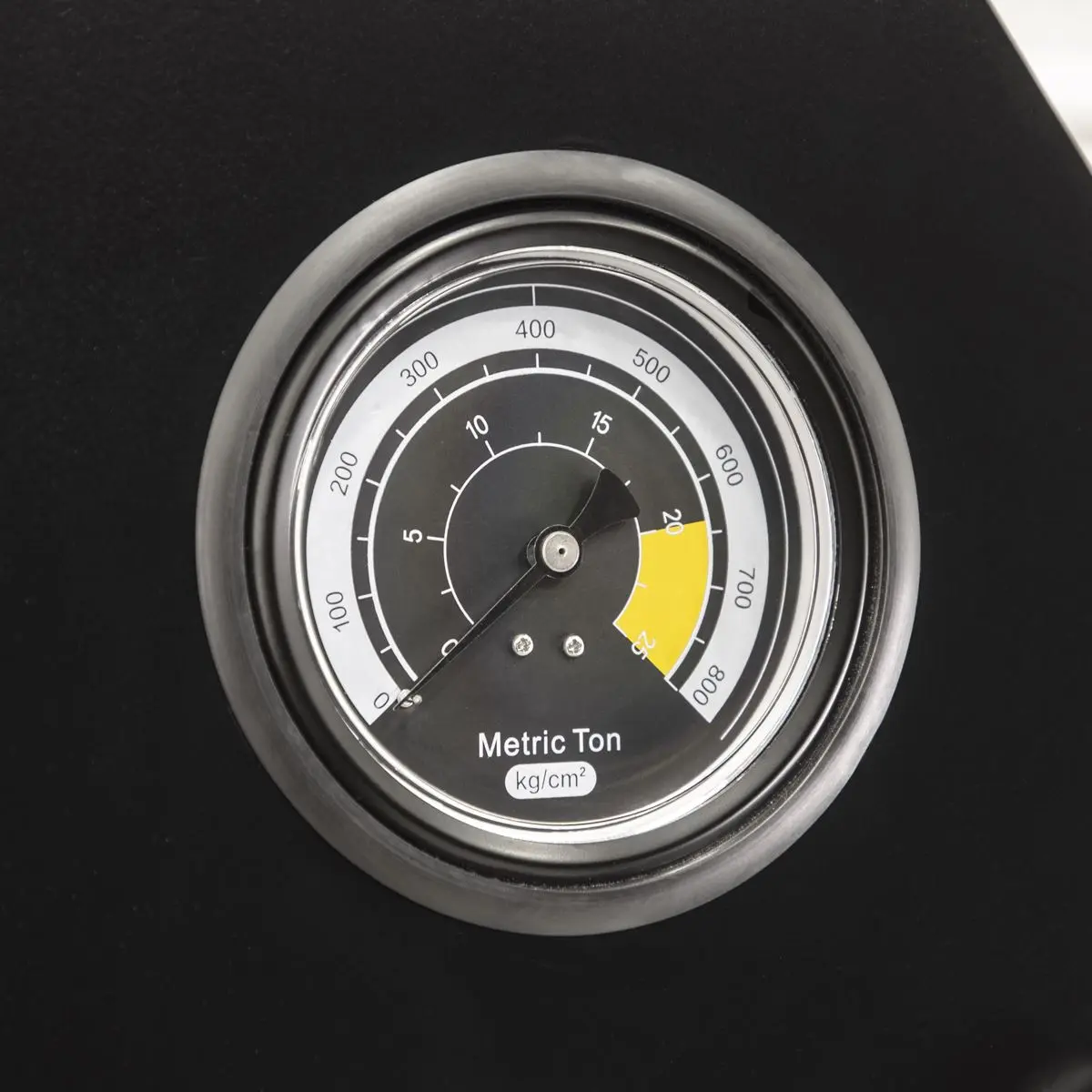

Frame head fitted with ram pressure gauge.

Winch assisted press table adjustment.

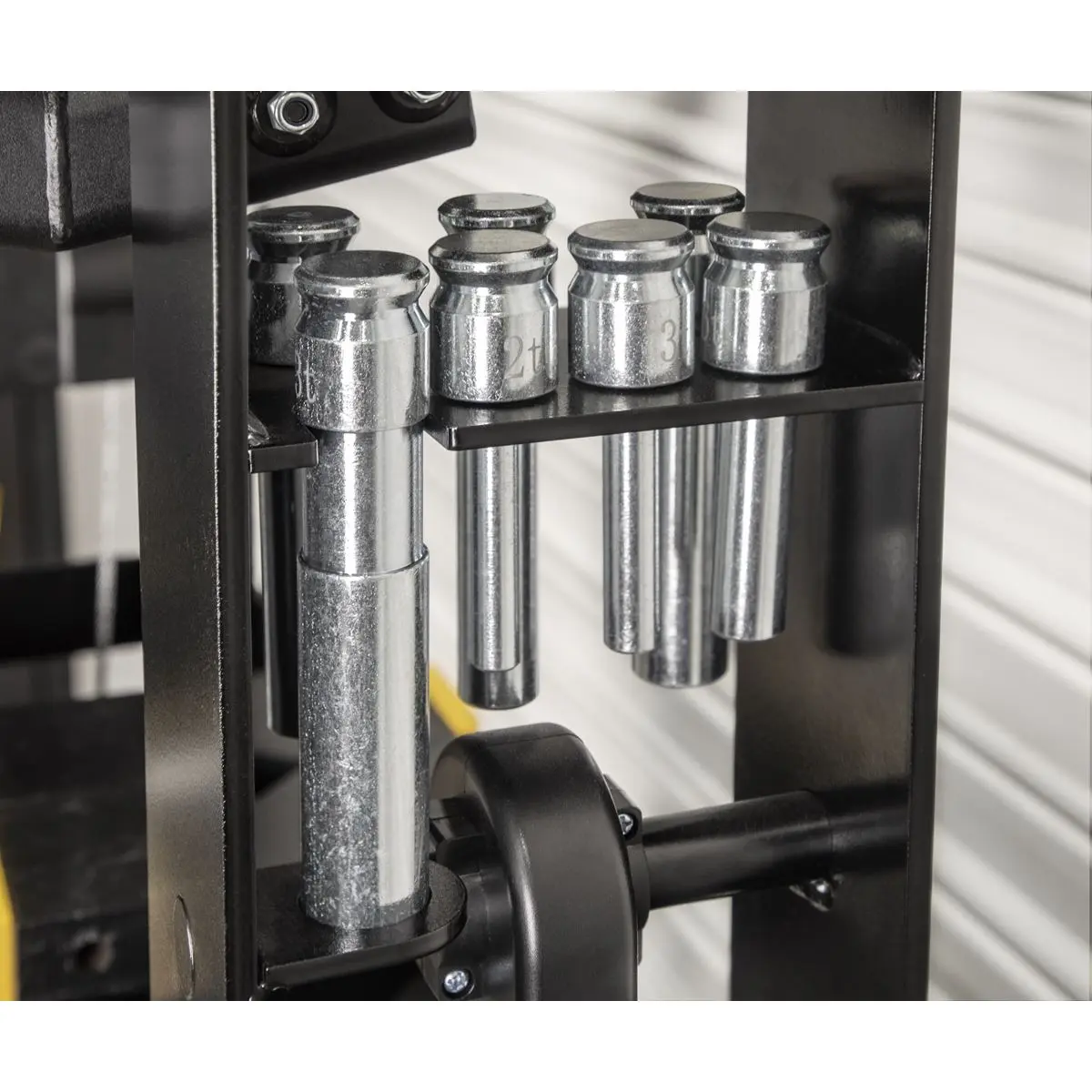

Storage for press pins included in frame.

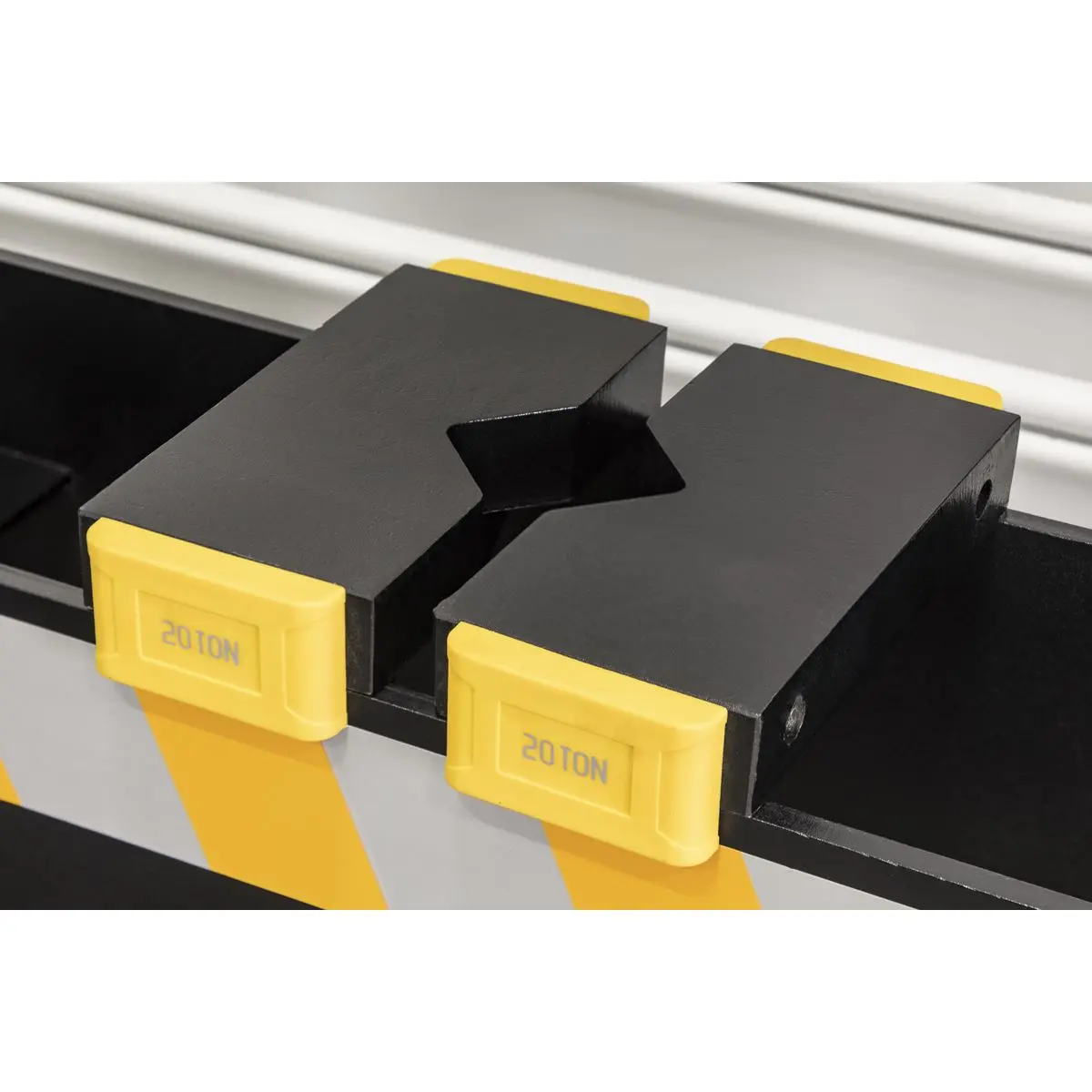

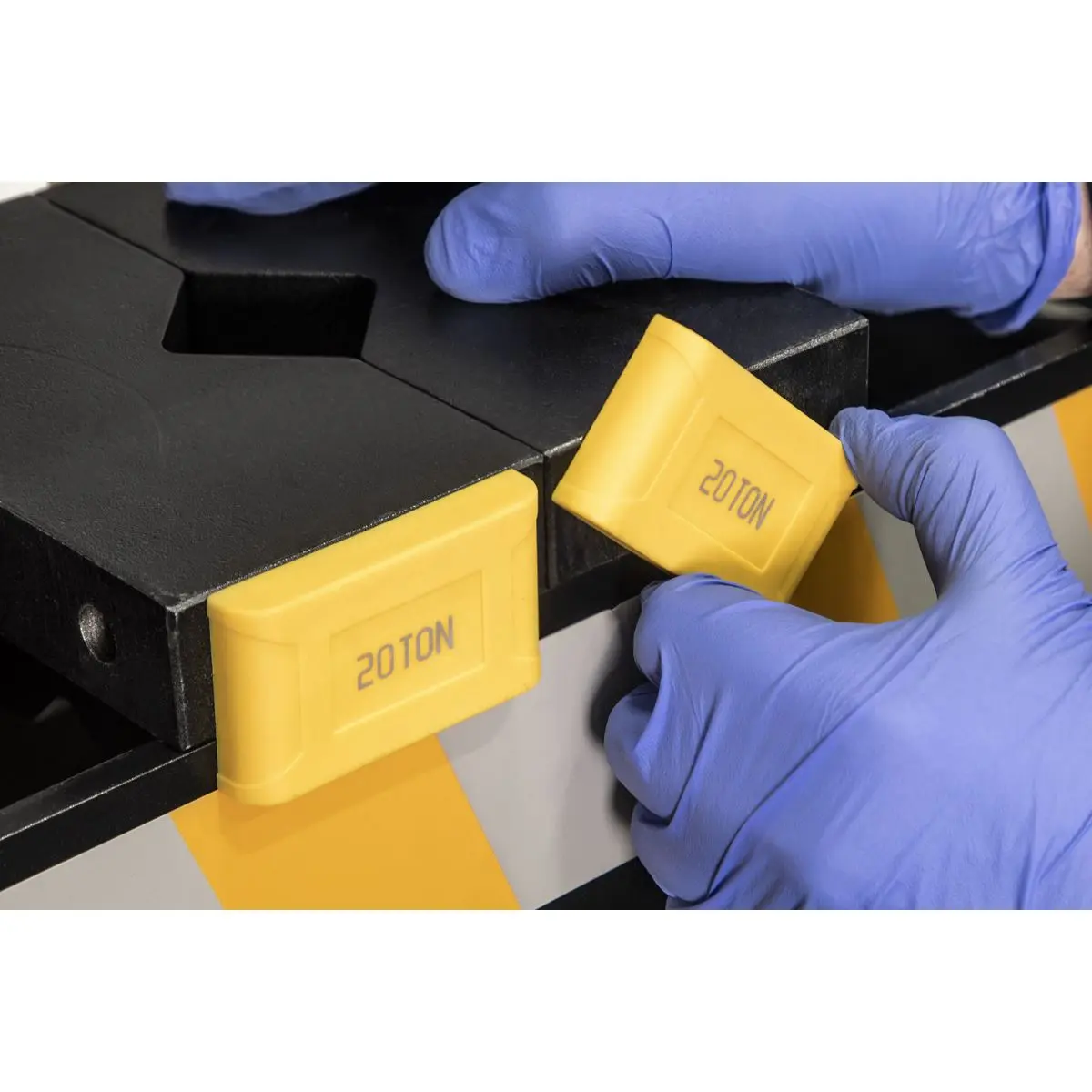

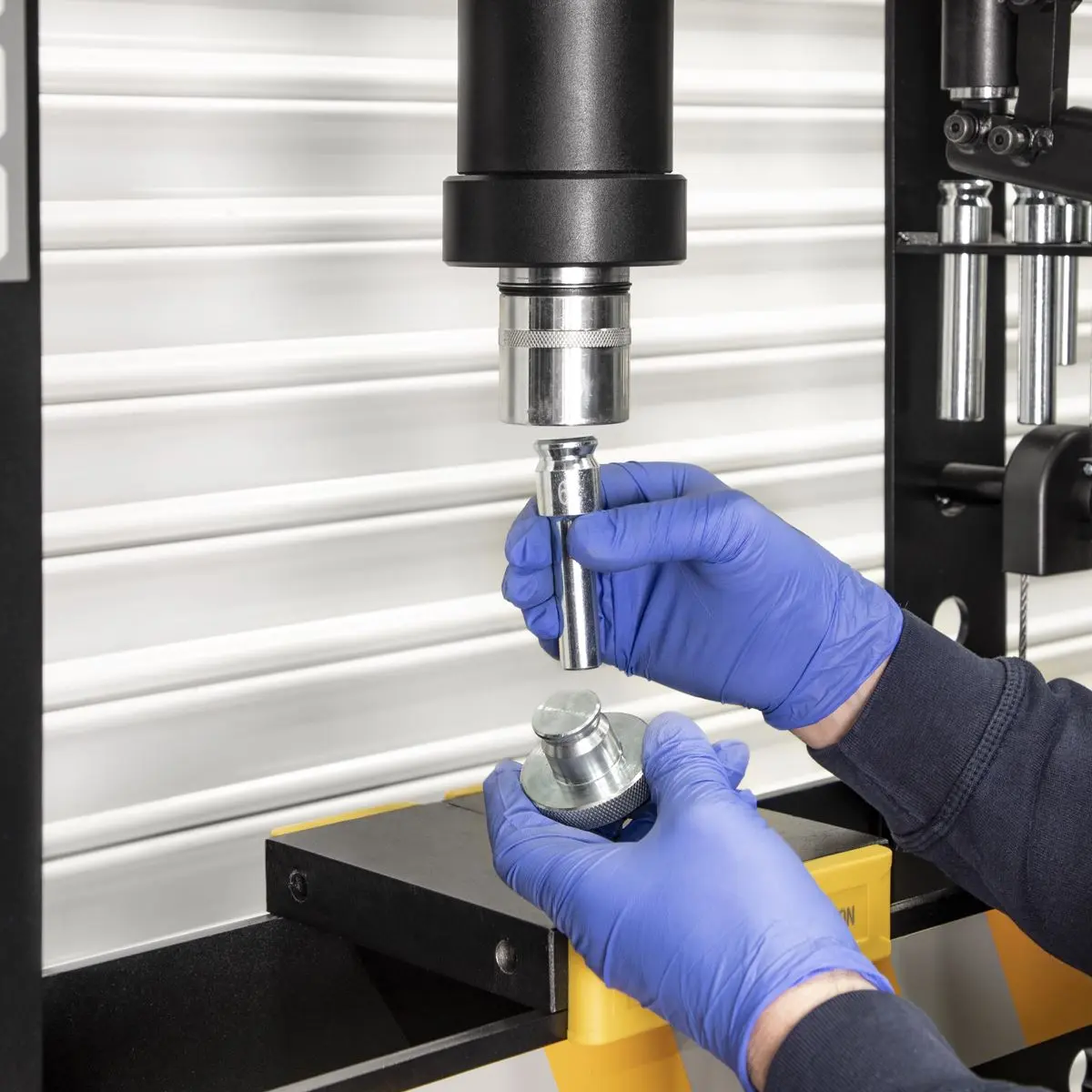

Supplied with press pins, flat pressing plate/V-blocks.

5 Year guarantee*.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No PPF20S
• Bench or Floor Mounting: Floor
• Brand: Viking
• Capacity: 20 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: n/a
• Maximum Height - Ram to Table: 850mm
• Minimum Height - Ram to Table: 25mm
• Nett Weight: 121.4kg
• Operating Table Width: 540mm
• Overall Height: 1800mm
• Ram Diameter: Ø84.2mm
• Ram Stroke: 220mm
• Screw Extension: 75mm
• Table Aperture: 150mm
• Type: Floor
• Working Table Depth: 166mm
• Working Table Width: 710mm

Product Guarantee: 5 Years
Catalogue Page: Page 900

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
