Sealey Wheel Balancer - Semi-Automatic

Sealey Semi-Automatic Wheel Balancer

Semi-automatic balancer with auto data input for offset and wheel diameter, data can be inputted manually if required.

Steel and alloy settings depending on required location of wheel weights, including split (hidden) weight.

Additionally the machine is self-calibrating with manual check option.

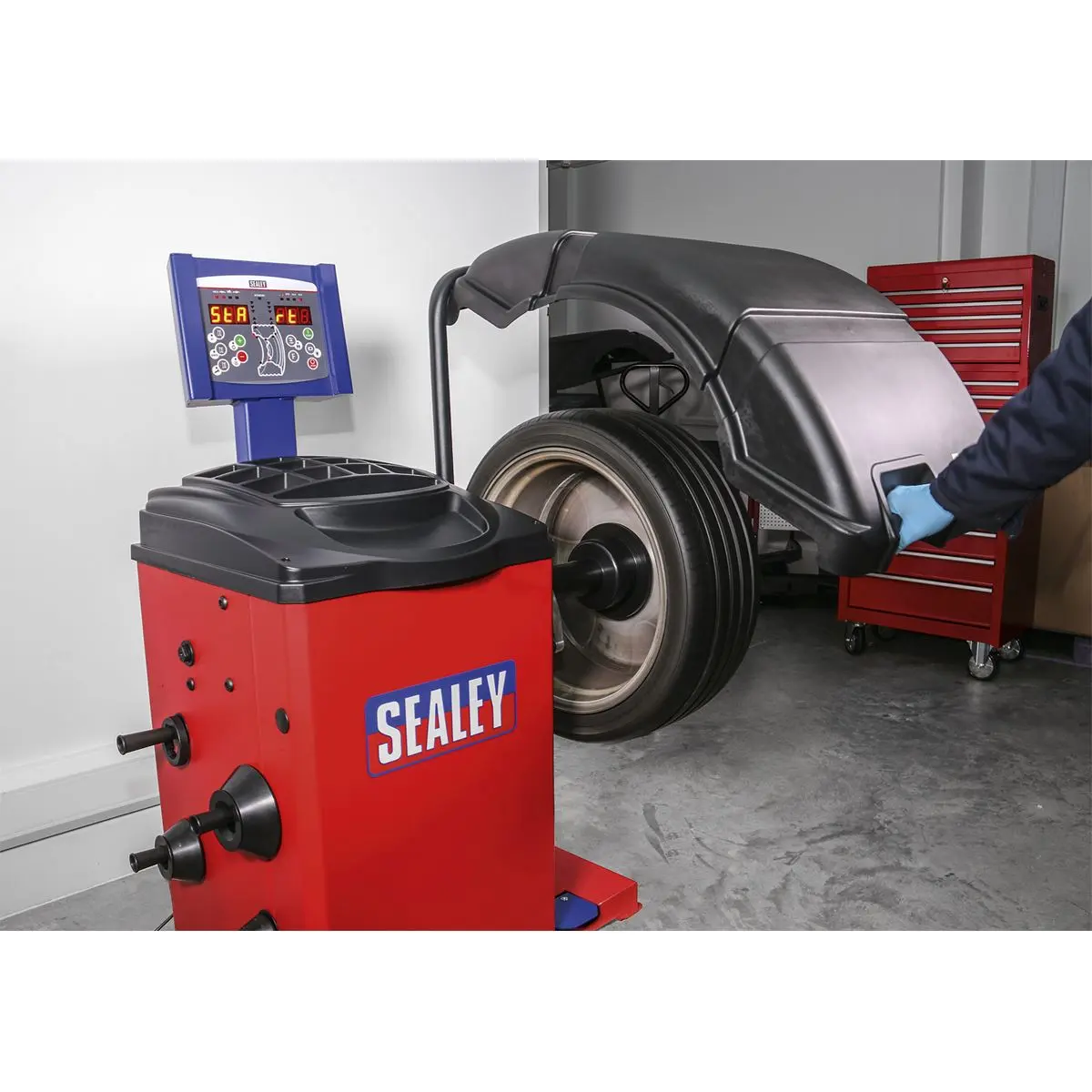

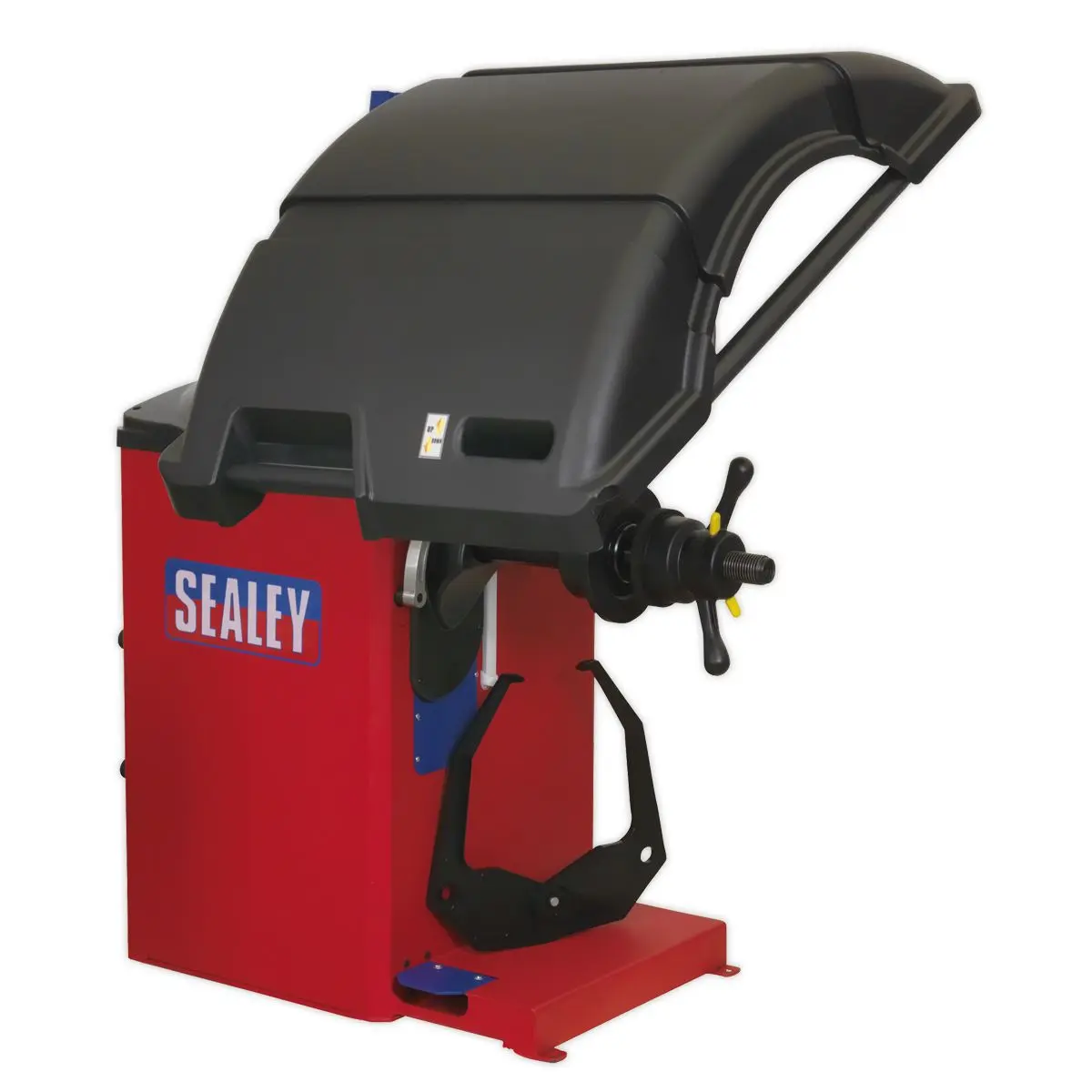

Features auto standby mode, foot operated brake, quick release locking wing nut, wheel guard with auto-stop.

Suitable for most cars and light commercial wheels.

Supplied with four centring cones, wheel measuring calipers, weight pliers and 100g calibration weight.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No WB10
• Brand: Sealey
• Nett Weight: 128kg
• Maximum Rim Diameter: 28"
• Maximum Tyre Diameter: Ø1100mm
• Maximum Wheel & Tyre Weight: 70kg
• Maximum Rim Width: 20"(510mm)
• Rotating Speed: 140rpm
• Accuracy: ±1g
• Balance Time: 7s
• Shaft Width: 40mm
• Voltage/Phase: 230V - 1ph
• Motor Power: 90W
• Mounting Cone Diameters: Ø42-65, 53-78, 75-108, 88-140mm
• Overall Dimensions (W x D x H): 1100 x 1000 x 1250mm
• Weight: 128kg

Product Guarantee: 1 Year
Catalogue Page: Page 501

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
