STABILA TECH 700 DA Digital Angle Finder - Choose Size

STABILA TECH 700 DA Digital Angle Finder - Choose Size

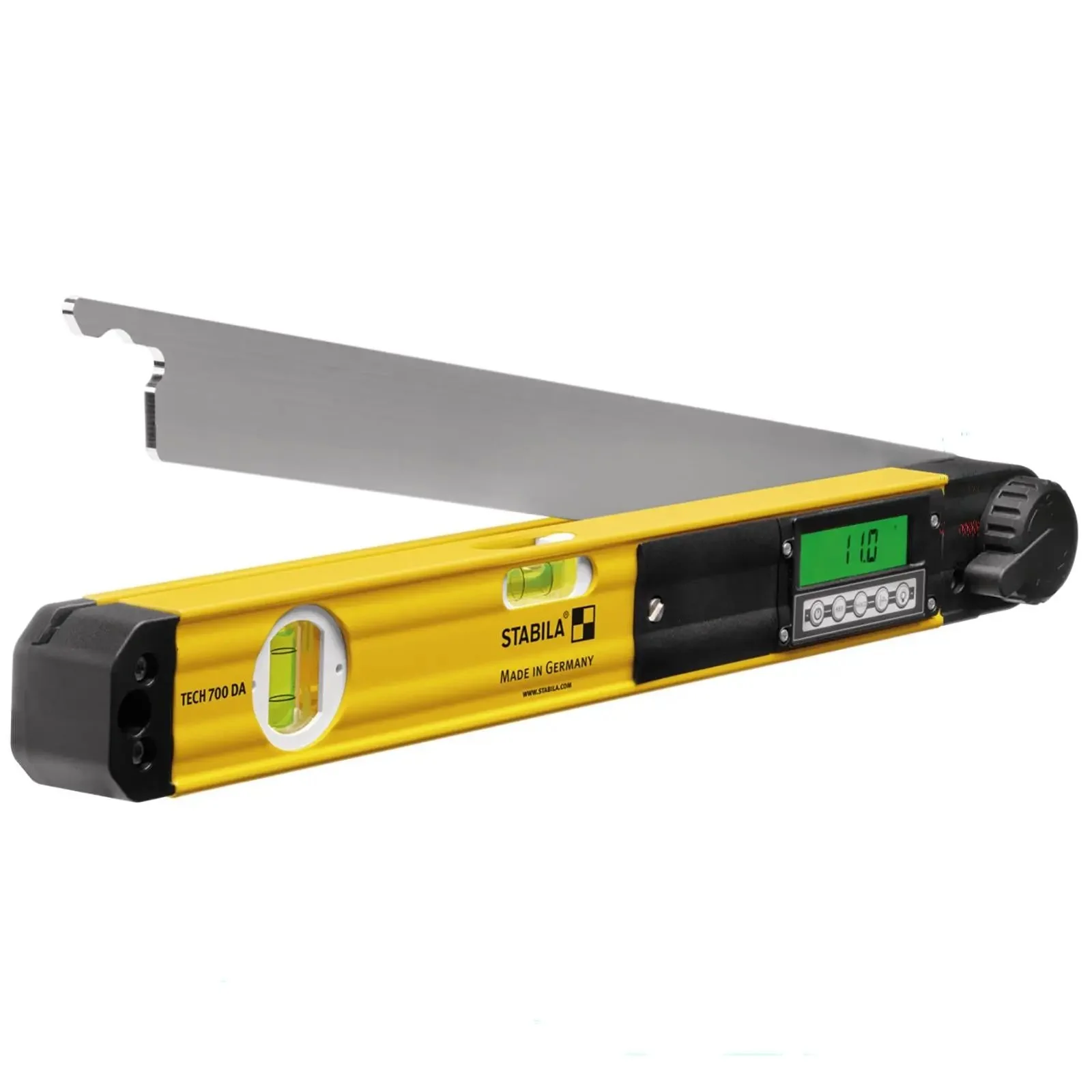

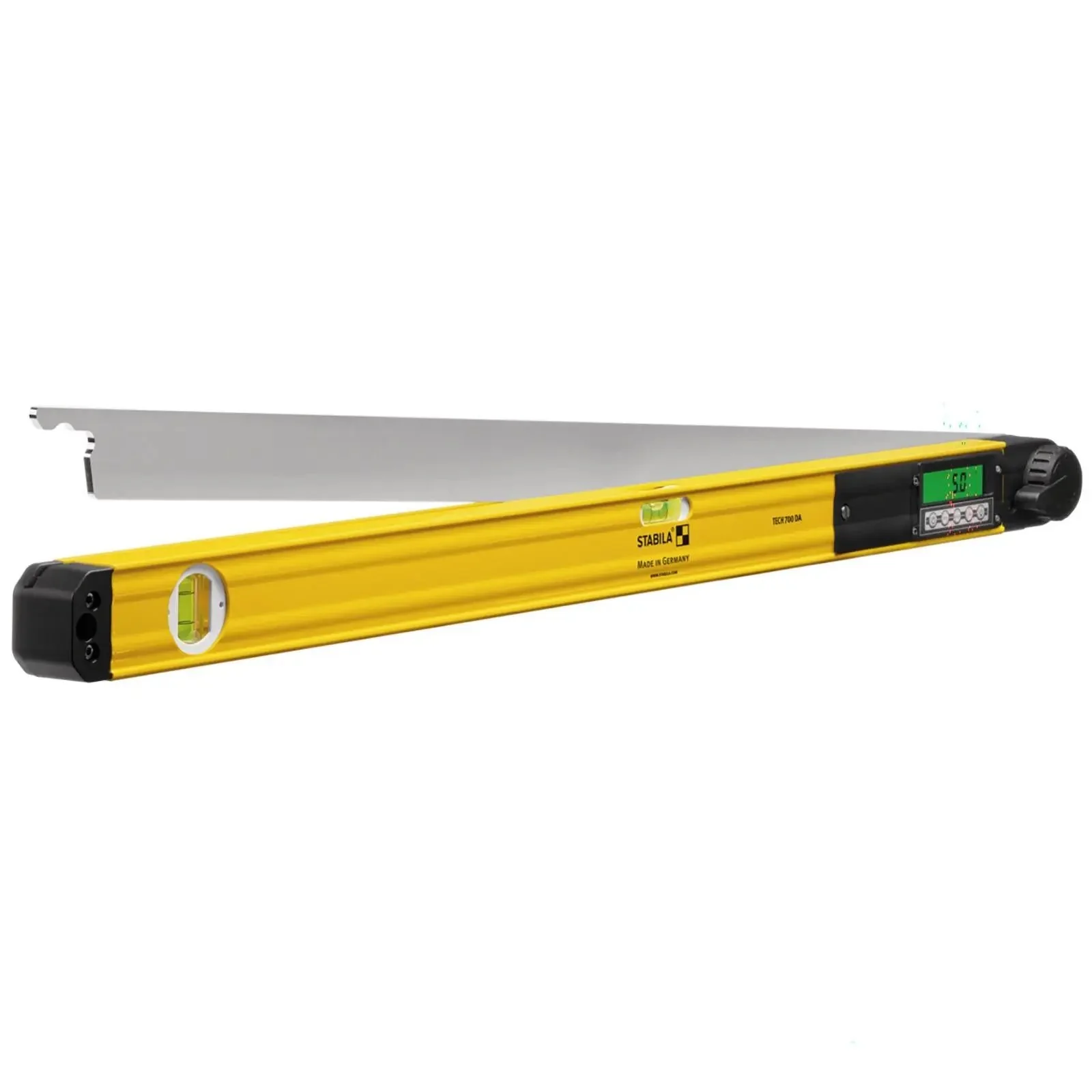

Extremely versatile – the TECH 700 DA digital angle finder. A high-quality product made in Germany that perfectly combines three tools: angle finder, spirit level and bevel gauge. Calculate exact angles with the latest electronic measuring technology. Level components accurately with the high-quality vials. Using the locking mechanism, you can use the tool as a bevel gauge and easily transfer the measured angles onto a part. Reap the benefits of this indispensable all-rounder, which performs the work of three different tools, on a daily basis.

Highlights:

• Electronic angle finder for quickly determining and transferring interior and exterior angles in the range from 0° – 270°.

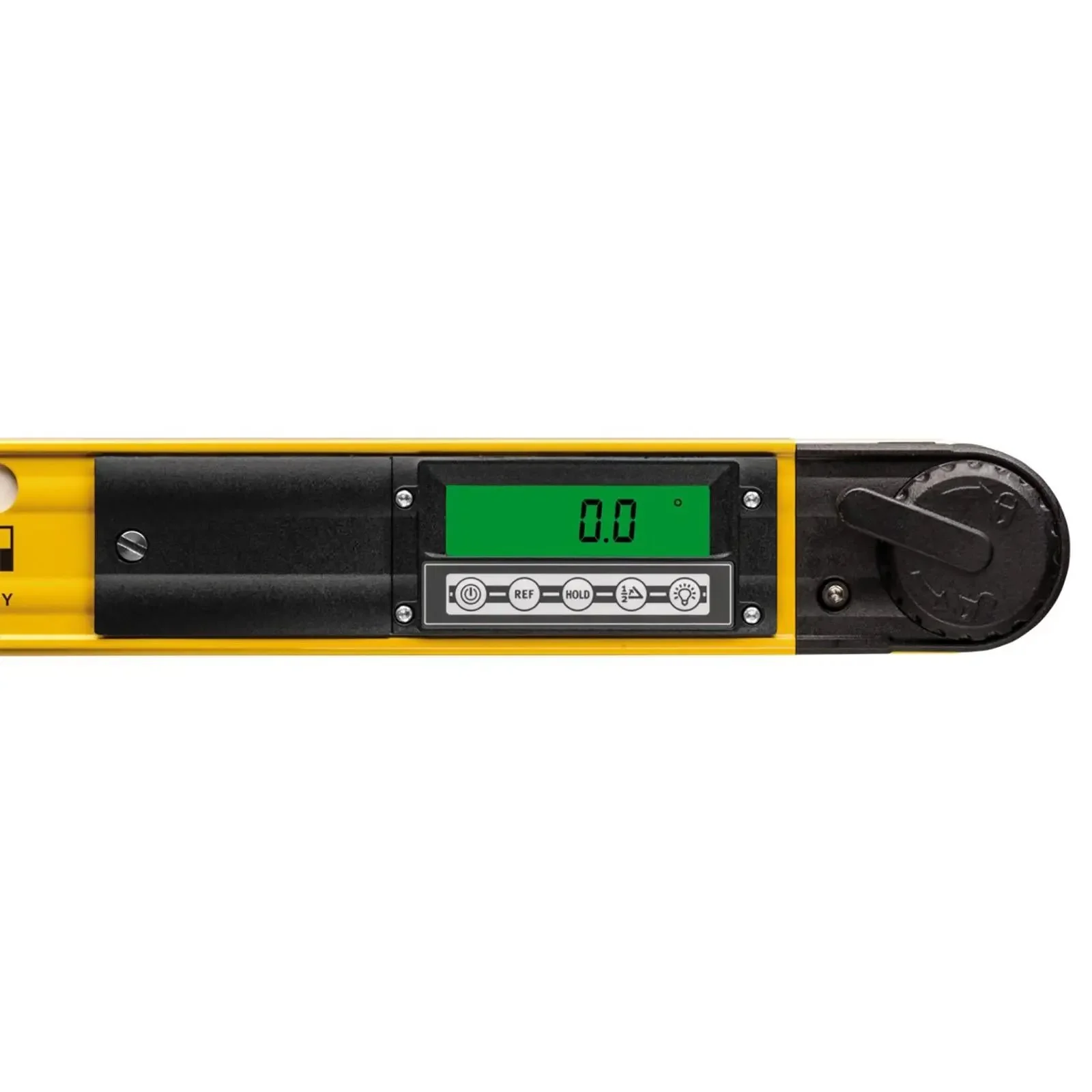

• Digital display with large digits and lighting that can be activated and dimmed.
• LOCK function: locking mechanism for transferring angles reliably.
• Vials which can be read easily, even when the arm is folded in.
• Two particularly wide contact edges for accurate and reliable marking of angles in all positions.
• REF function: allows a reference angle to be accepted, saved and then transferred to other components.
• HOLD function: saves the measured value – for accurate measurements and quick transferring even in hard-to-see places.
• Displays the angle bisectors at the touch of a button – ideal for quick and accurate mitre cuts.
• Switches off automatically if not used for 60 minutes.
• Precise measuring results with an accuracy of ± 0.1°.
• Protection class IP 54.

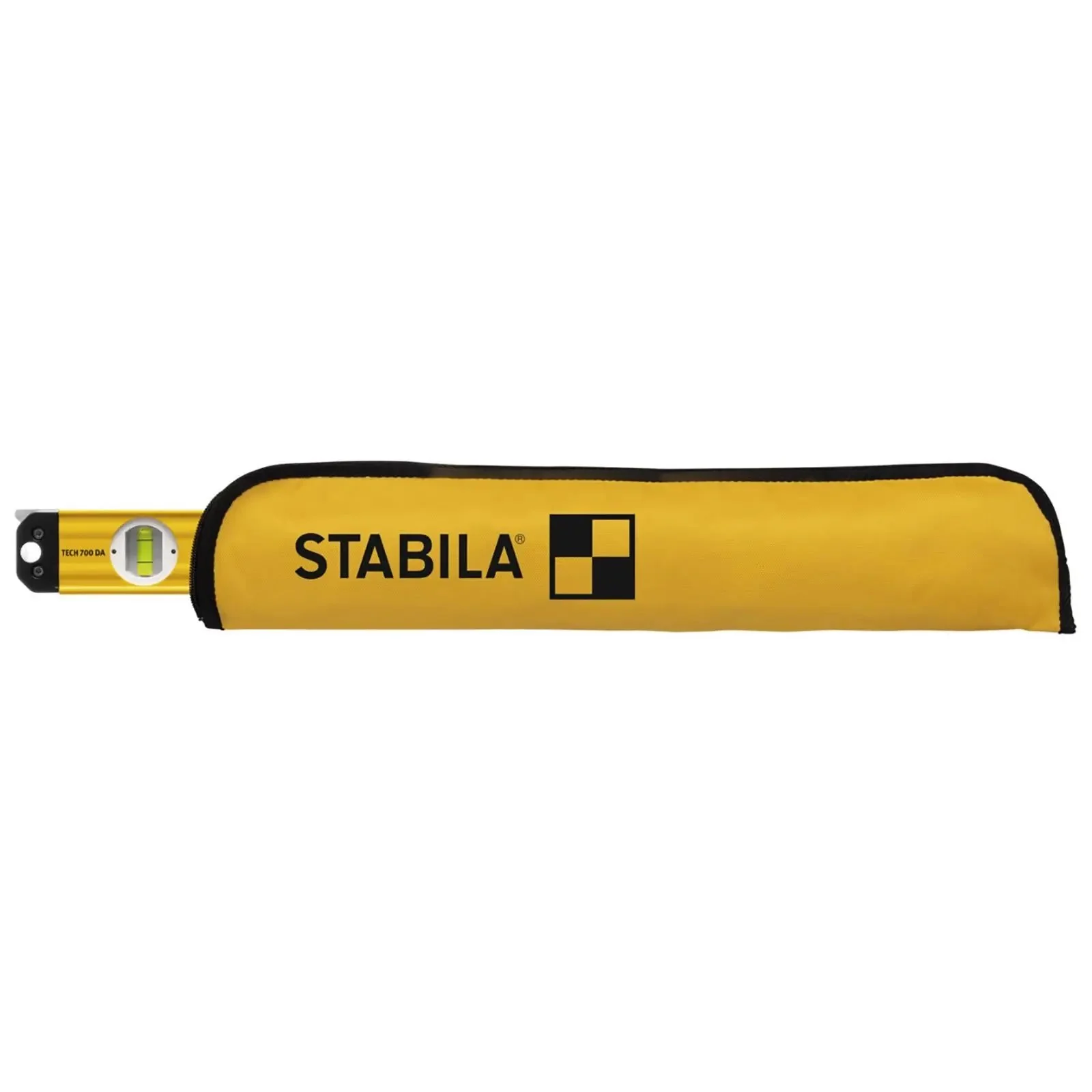

• Includes bag.
• Equipment: 1 digital display, 1 horizontal vial, 1 vertical vial, 2 coated measuring surfaces.

Features:

• One tool – three functions: digital angle finder, spirit level and bevel gauge
• Accurate angle determination in the range from 0° – 270°
• Digital display that can be read easily and illuminated

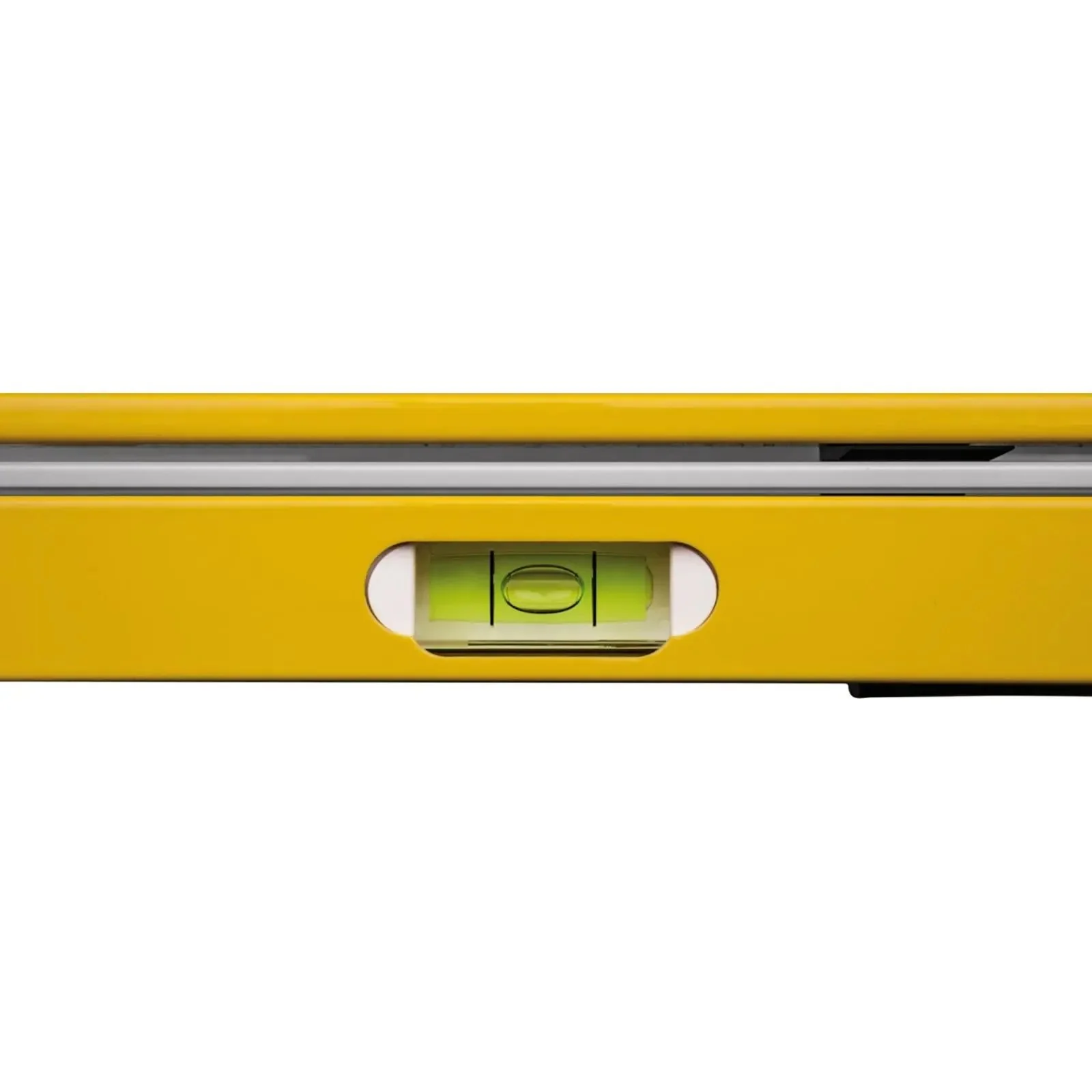

• Two high-quality vials which can be read in all positions
• LOCK function for transferring angles reliably.

Specification:

• Accuracy with electronic angle measurement +/-: 0.1 °
• Measurement accuracy in normal position: 0.5 mm/m
• Measurement accuracy in reverse position: 0.75 mm/m
• Protection class: IP 54
• Number of horizontal vials: 1 pc.
• Number of vertical vials: 1 pc.
• Number of arms: 2 pc.
• Measuring modes: °
• Operating life: 120 h
• Number of batteries: 2 pc.
• Battery type: AA
• Type of display: Digital
• Colour: Yellow
• Storage locations: 1 pc.
• Manufacturer's guarantee: 2 Years
• Min. operating temperature: -10 °C
• Max. operating temperature: 50 °C
• Min. storage temperature: -20 °C
• Max. storage temperature: 65 °C
