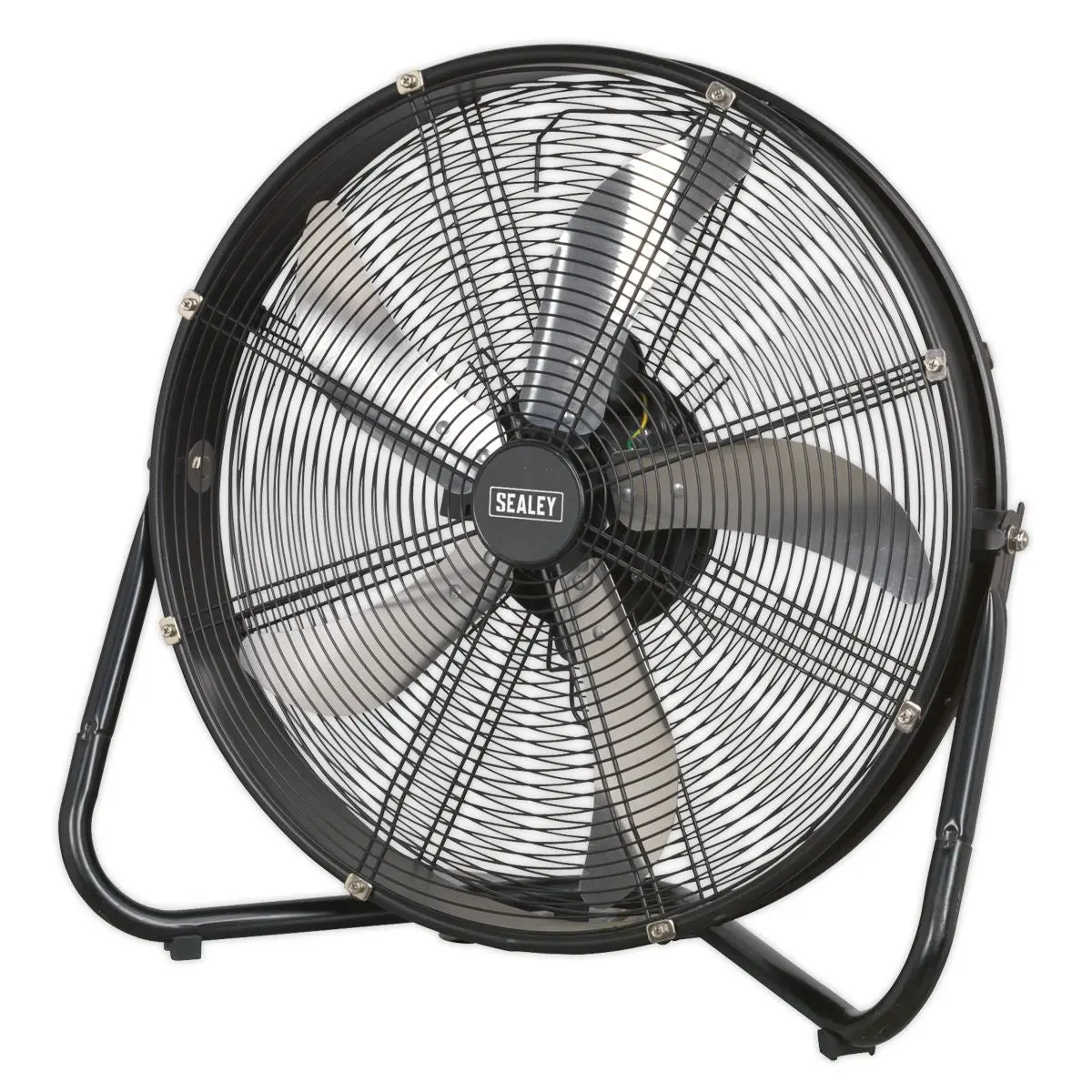

Sealey Industrial High Velocity Floor Fan 20" 230V
High velocity fan suitable for movement of huge volumes of air.
Features 3-speed settings for choice of airflow and tilting blade cradle.
Fully guarded blades with large diameter base for safety and added stability.
Mains cable storage keeps it tidy when not in use.
Maximum airflow up to 110m³/min.
Suitable for industrial, commercial, agricultural, workshop and showroom applications.
Specification:
- Model No HVF20
- Brand: Sealey
- Current: 0.5A
- Fan Diameter: Ø550mm(20")
- Maximum Airflow: 110m³/min(3900cfm)
- Nett Weight: 6.03kg
- Power: 105-115W
- Maximum Flow Rate (F): 160.35 m³/min
- Fan Power Input (P): 105.5W
- Service Value (SV): 1.52 (m³/min)/W
- Standby Power Consumption (Psb): 0.0W
- Seasonal Electricity Consumption (Q): 33.76kWh/a
- Fan Sound Power Level (Lwa): 78.26dB(A)
- Maximum Air Velocity (c): 3.31m/s
- Speed Range: 1100/1225/1350rpm
- Speeds: 3
- Supply: 230V
Catalogue Page: Page 1275
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
