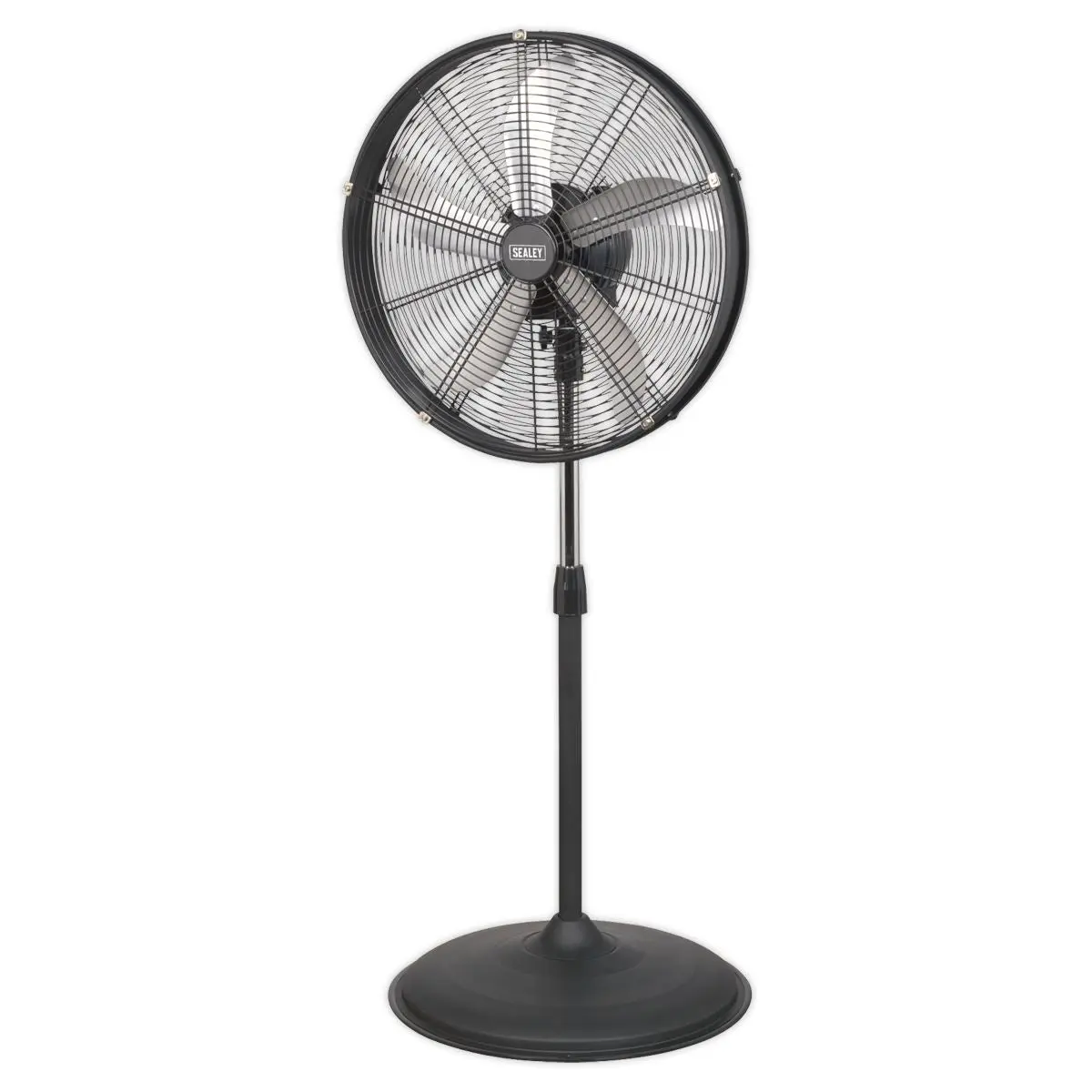

Sealey Industrial High Velocity Oscillating Pedestal Fan 20" 230V
High velocity fan suitable for movement of huge volumes of air.

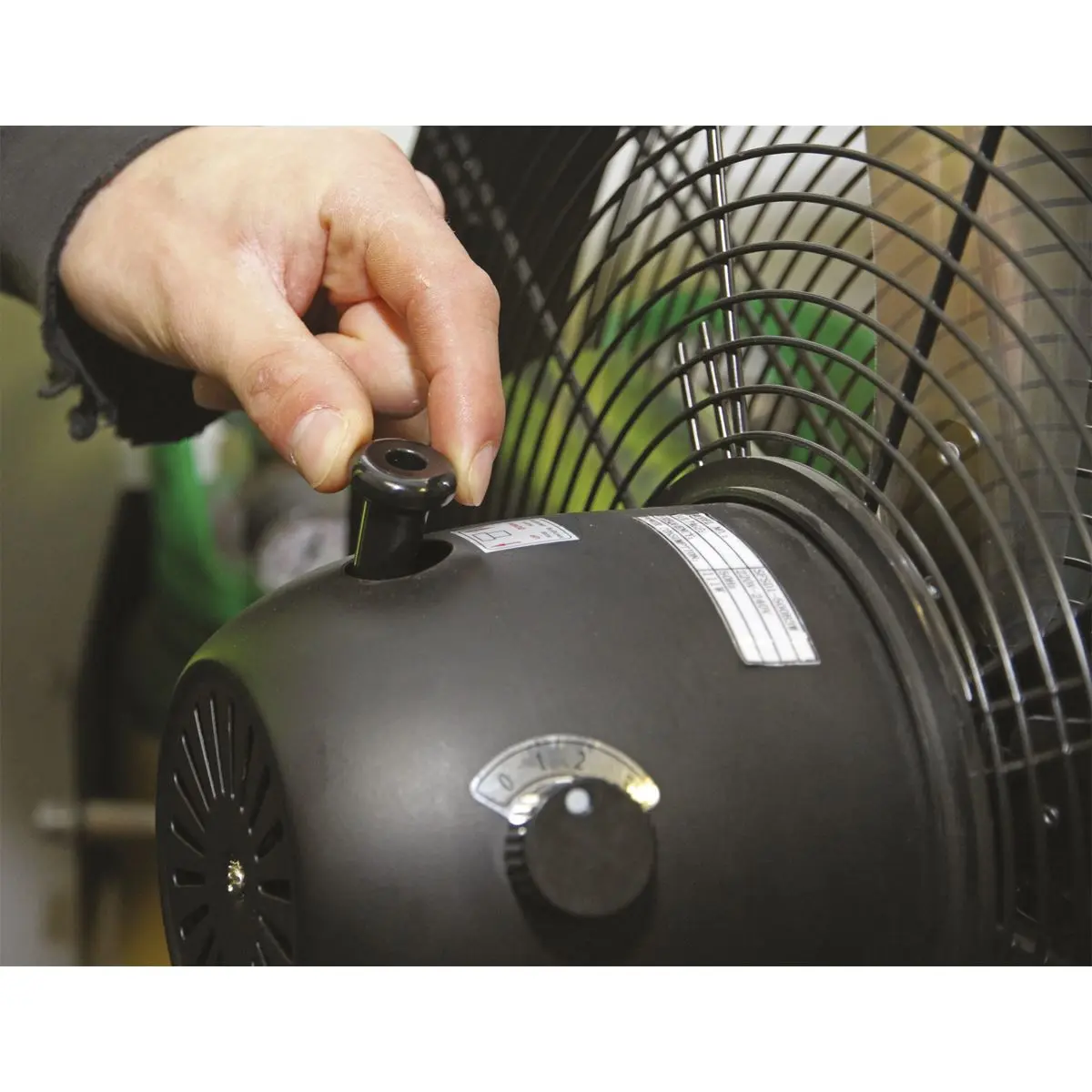

Features 3-speed settings for choice of airflow, height-adjustable stand, tilting blade cradle and oscillation.
Adjustable Height: 1080-1410mm.
Fully guarded blades with large diameter base for safety and added stability.
Maximum airflow up to 110m³/min.

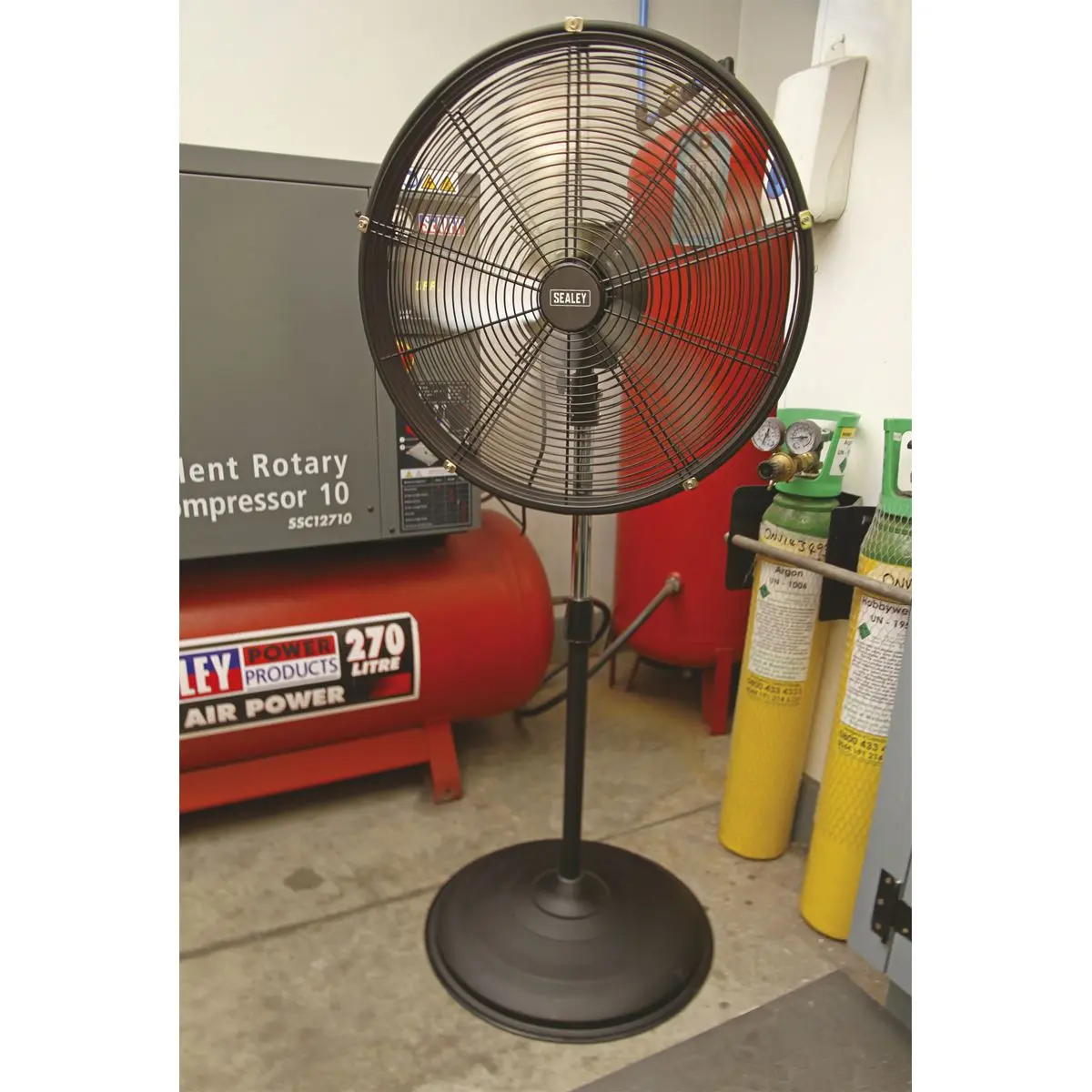

Suitable for industrial, commercial, agricultural, workshop and showroom applications.
Specification:
- Model No HVF20PO
- Brand: Sealey
- Current: 0.5A
- Fan Diameter: 550mm(20")
- Height: 1080-1410mm
- Maximum Airflow: 110m³/min(3900cfm)
- Nett Weight: 9.33kg
- Power: 115W
- Maximum Flow Rate (F): 160.35m³/min
- Fan Power Input (P): 105.5W
- Service Value (SV): 1.52(m³/min)/W
- Standby Power Consumption (Psb): 0.0W
- Seasonal Electricity Consumption (Q): 33.76kWh/a
- Fan Sound Power Level (Lwa): 78.26dB(A)
- Maximum Air Velocity (c): 3.31m/s
- Speed Range: 1050/1150/1350rpm
- Speeds: 3
- Supply: 230V
Catalogue Page: Page 1276
Downloadable Files:
- Instructions: View Here
- Parts Diagram: View Here
